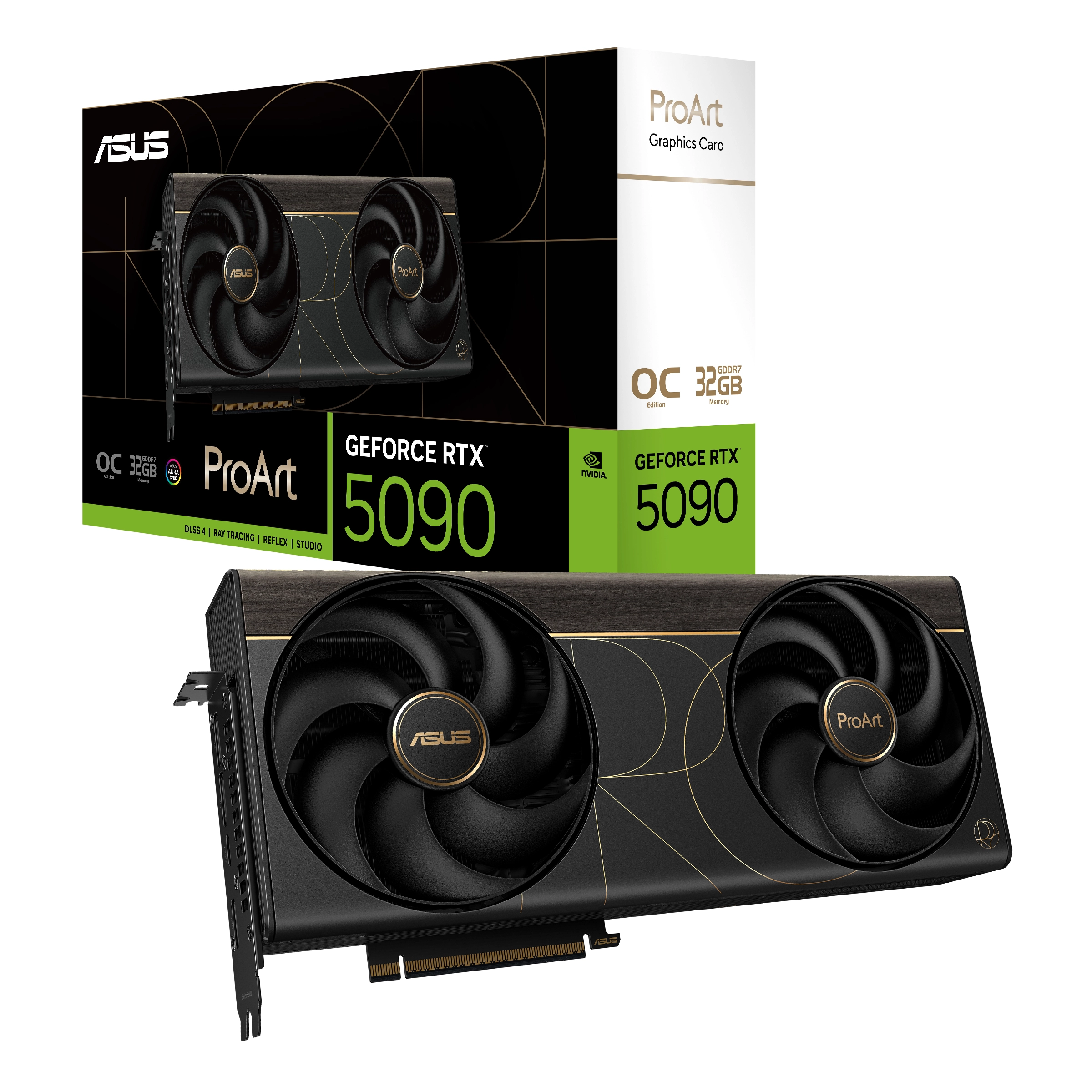

ProArt GeForce RTX™ 5090 OC Edition
Artistry Meets Performance

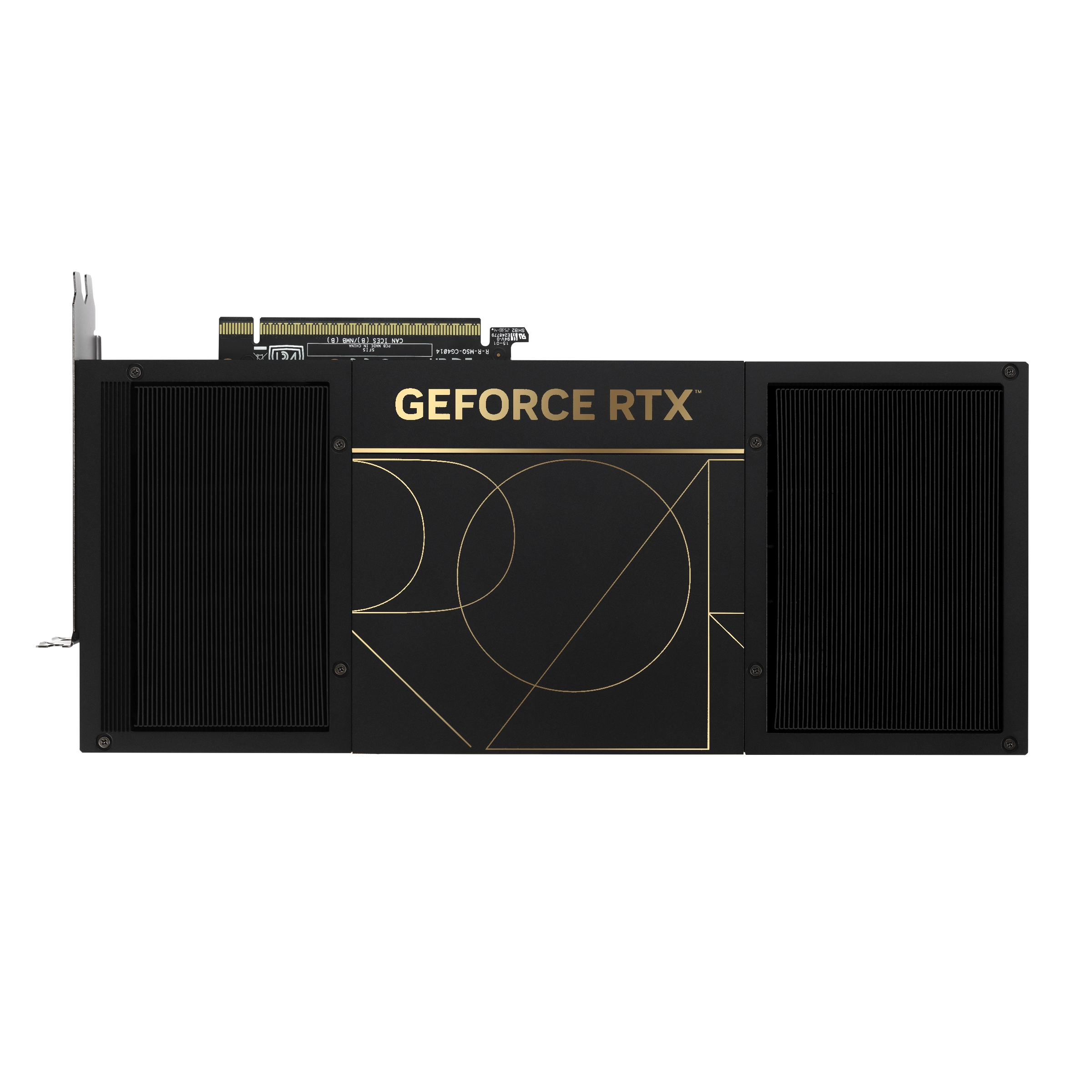

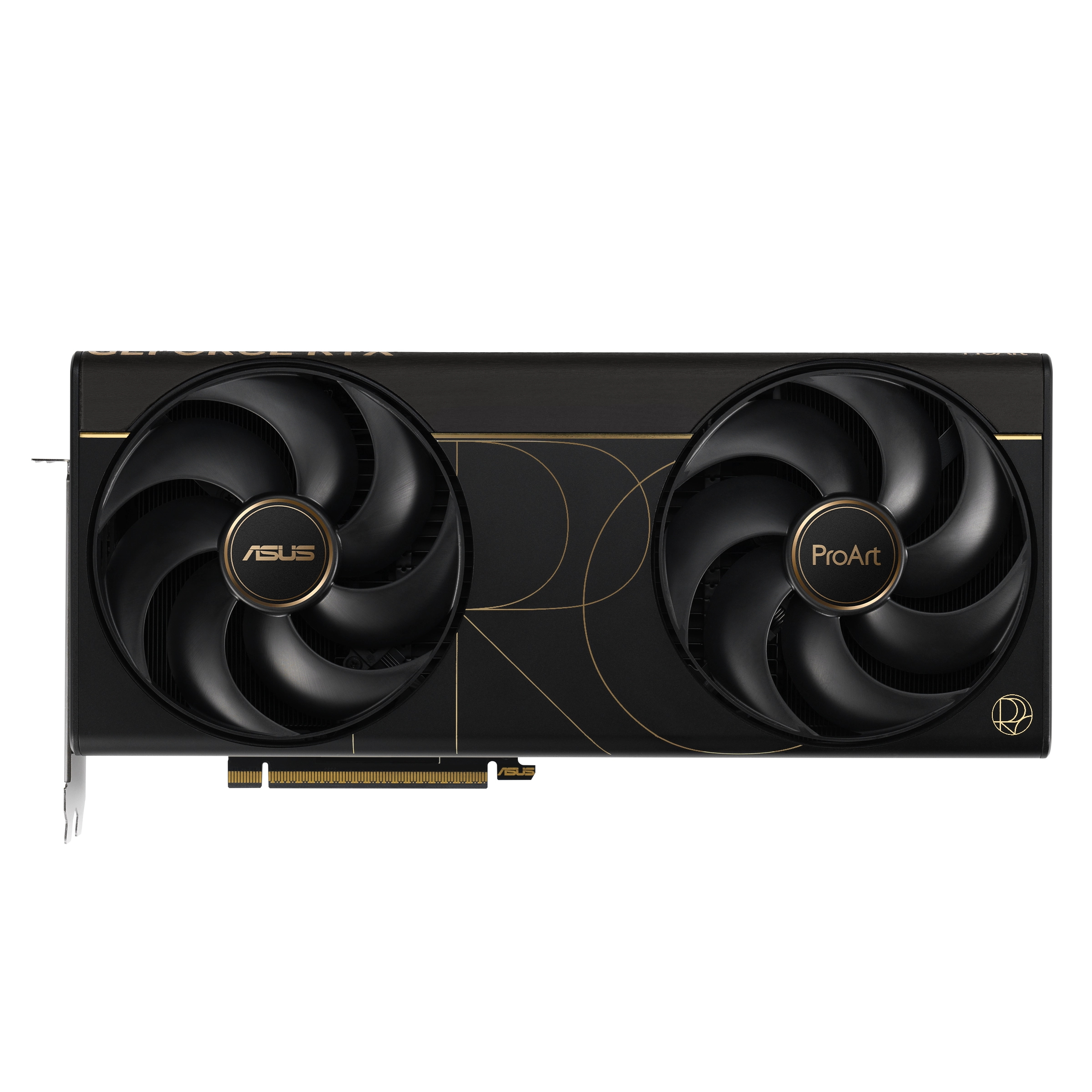

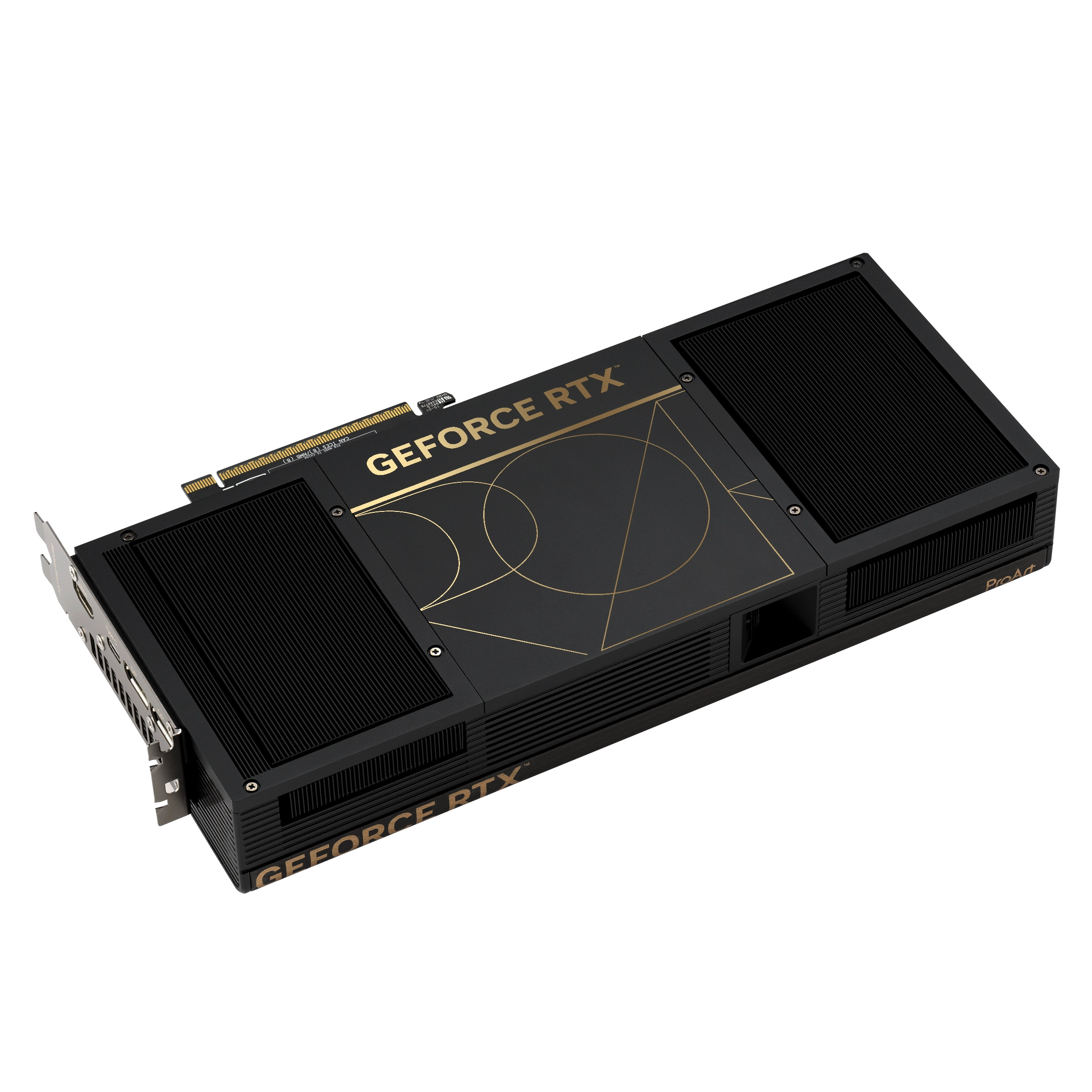

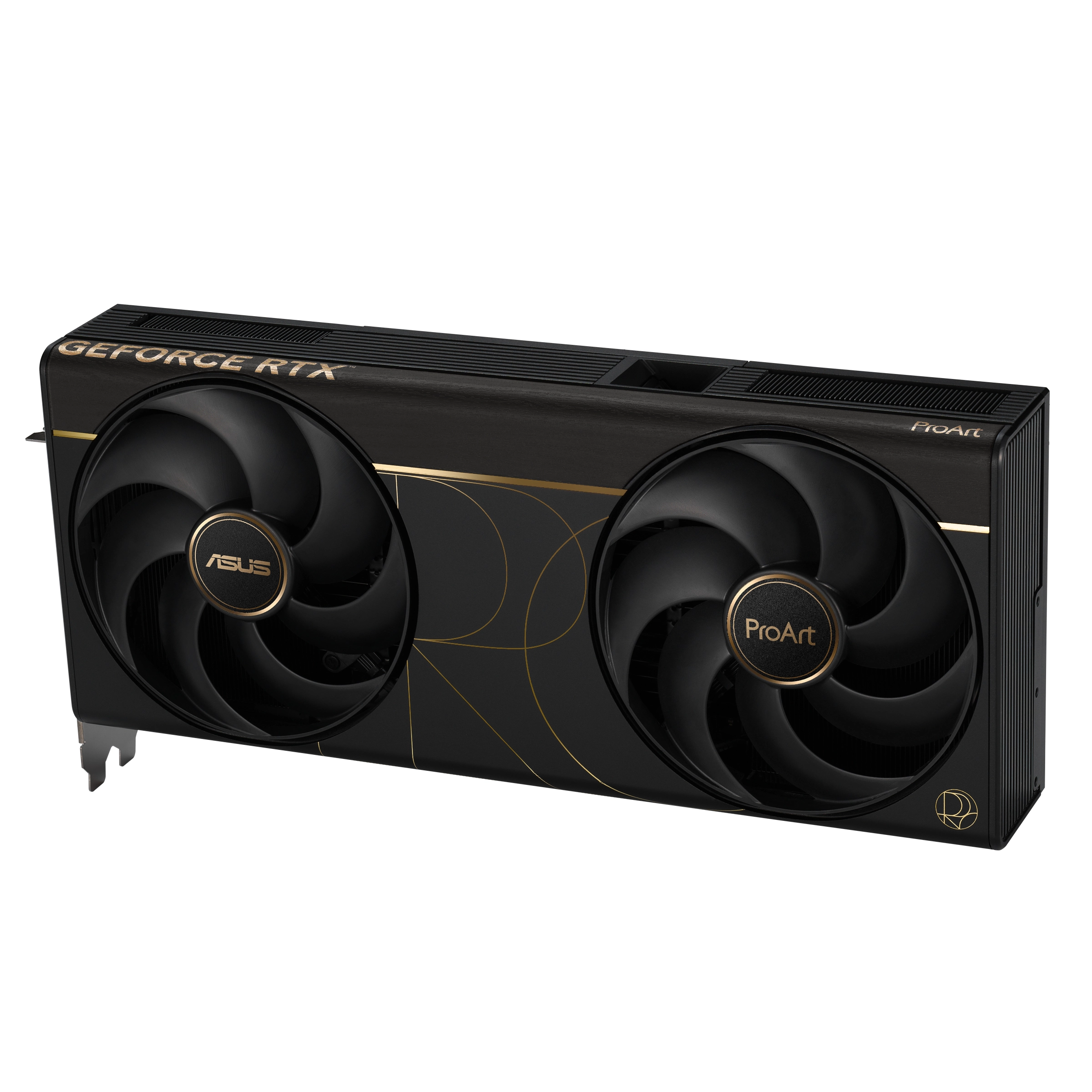

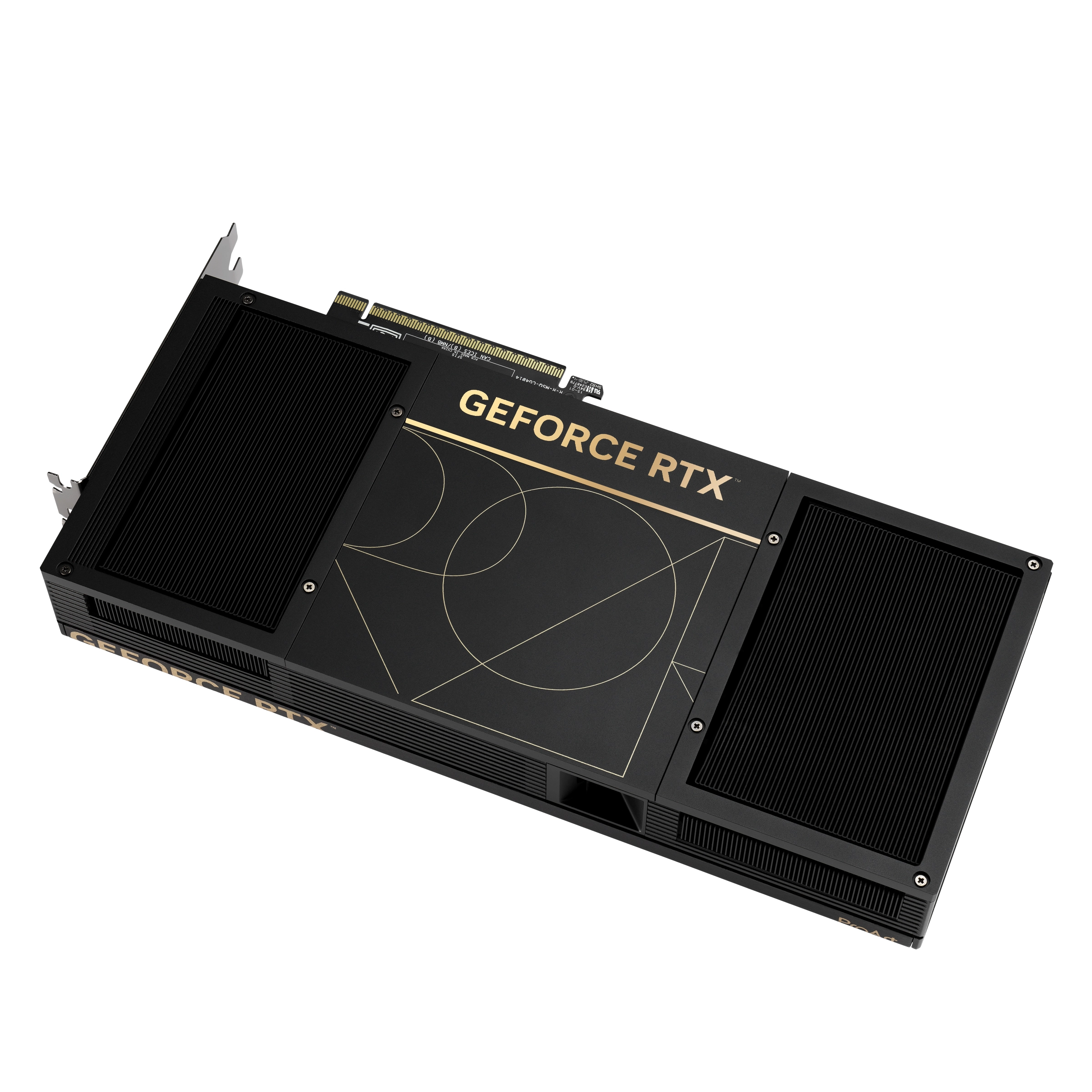

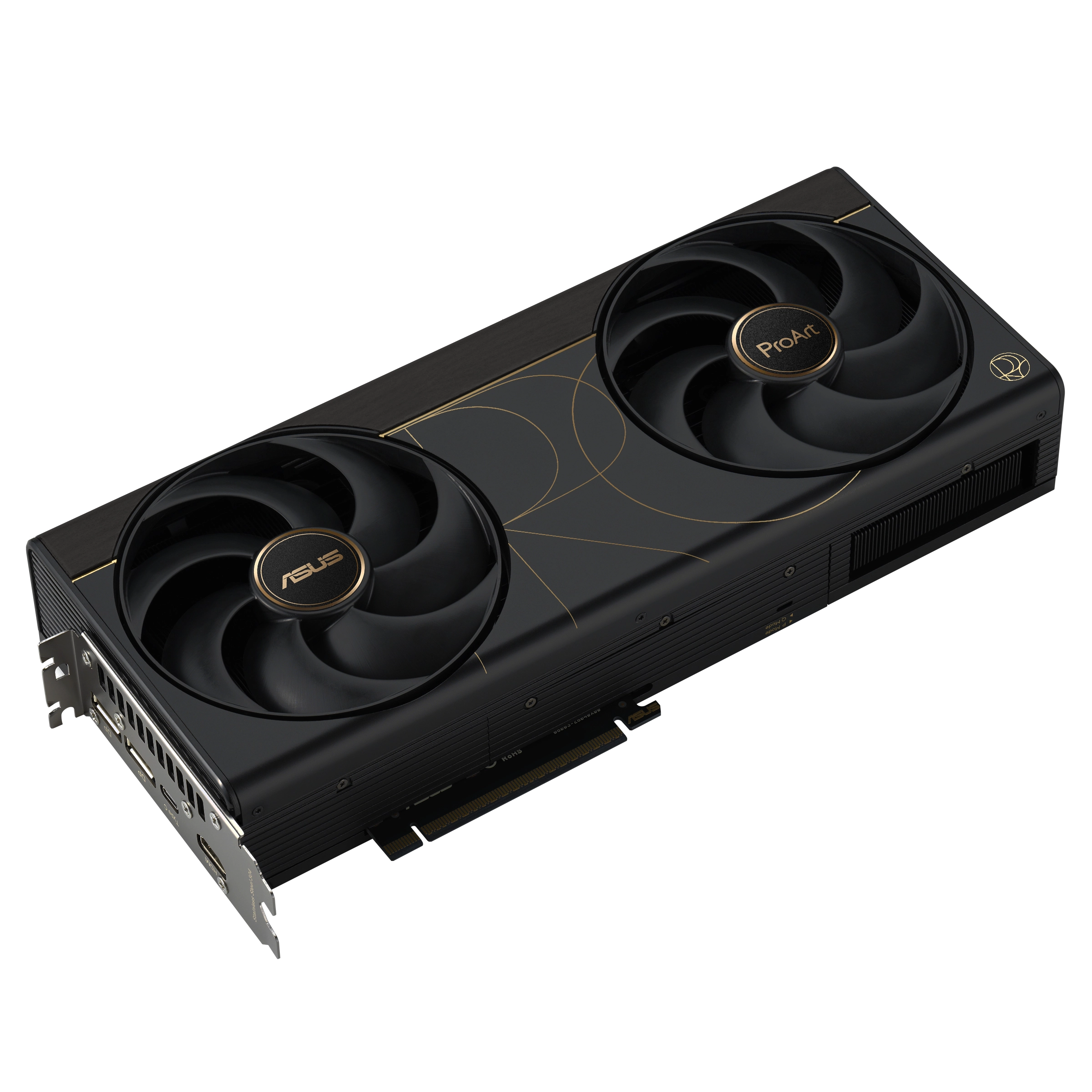

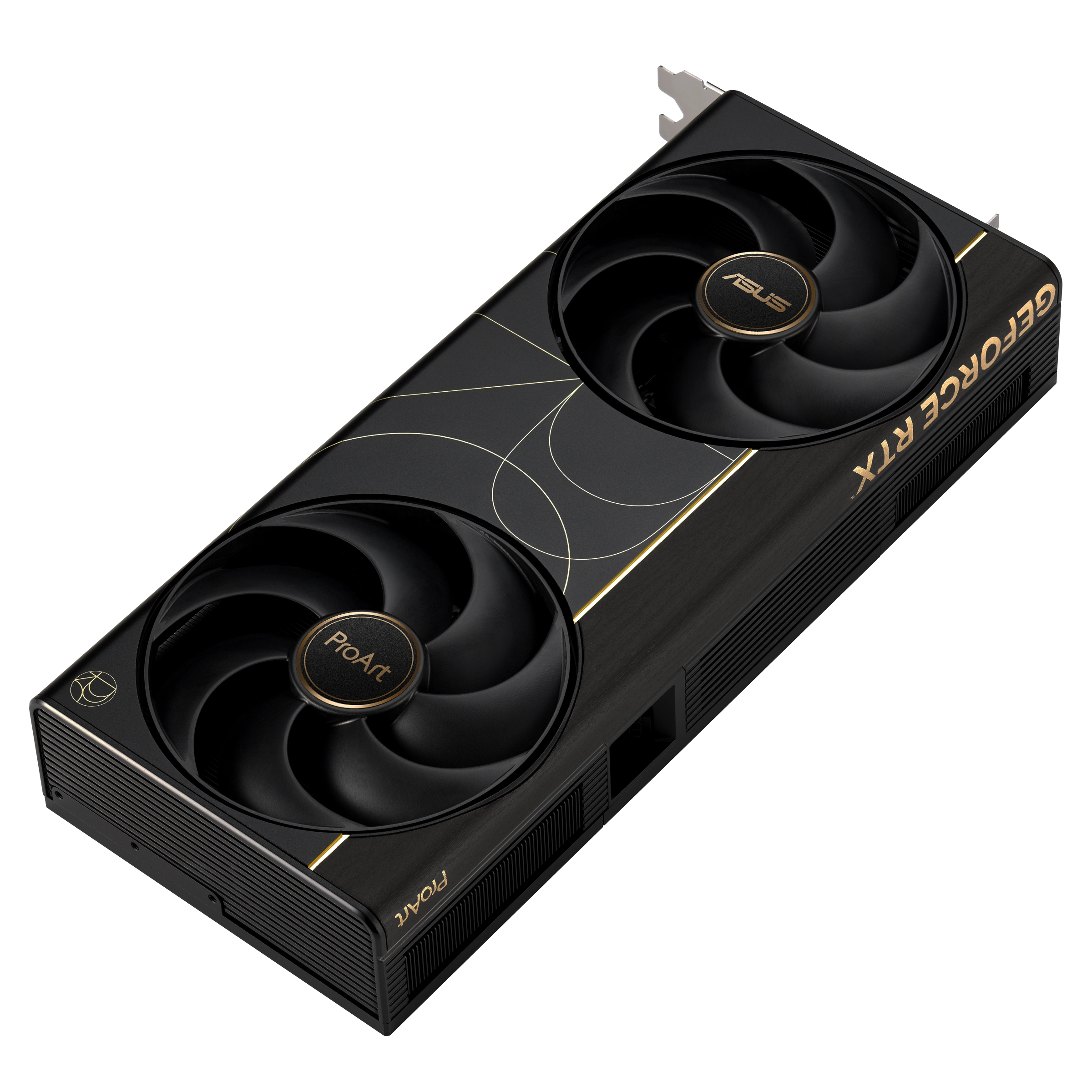

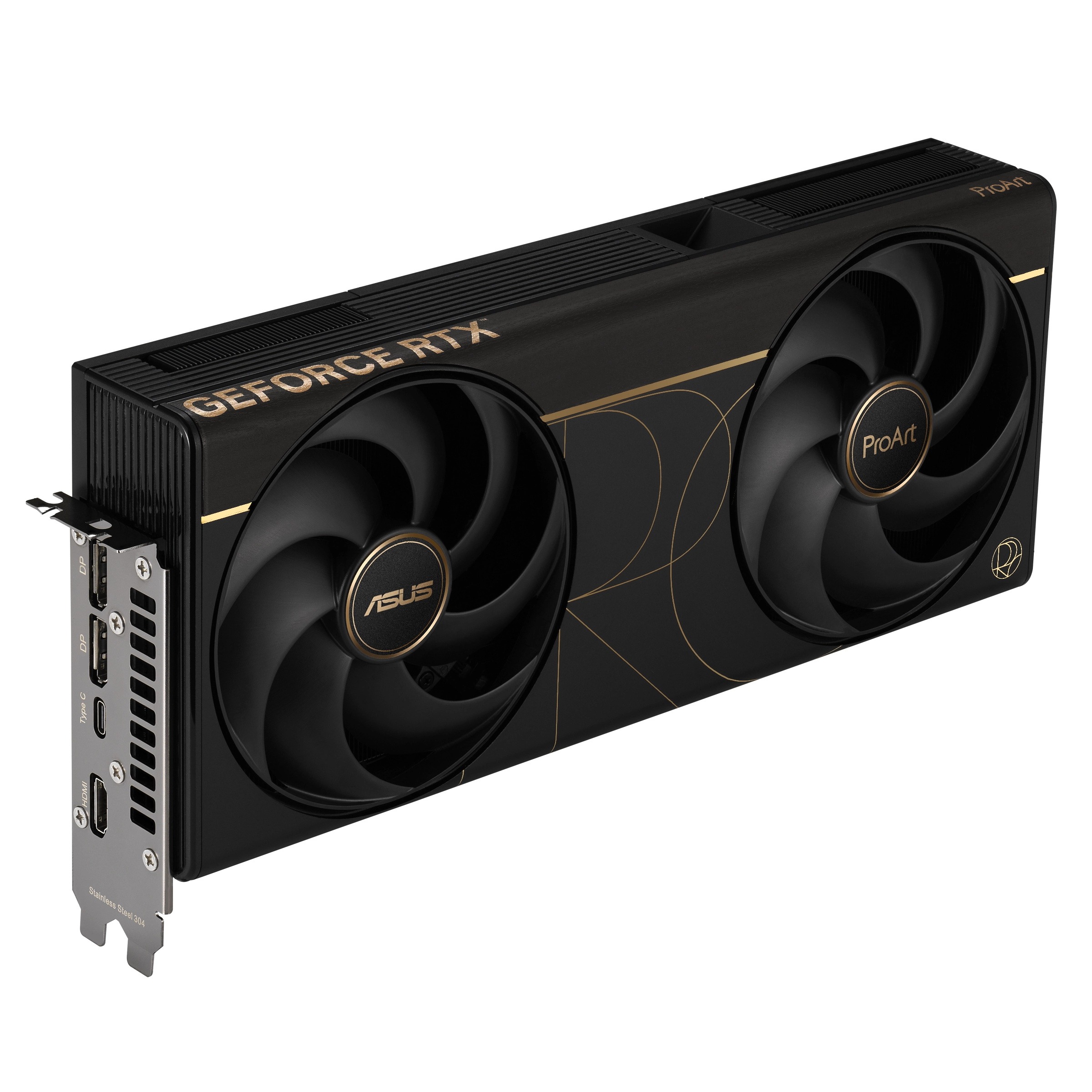

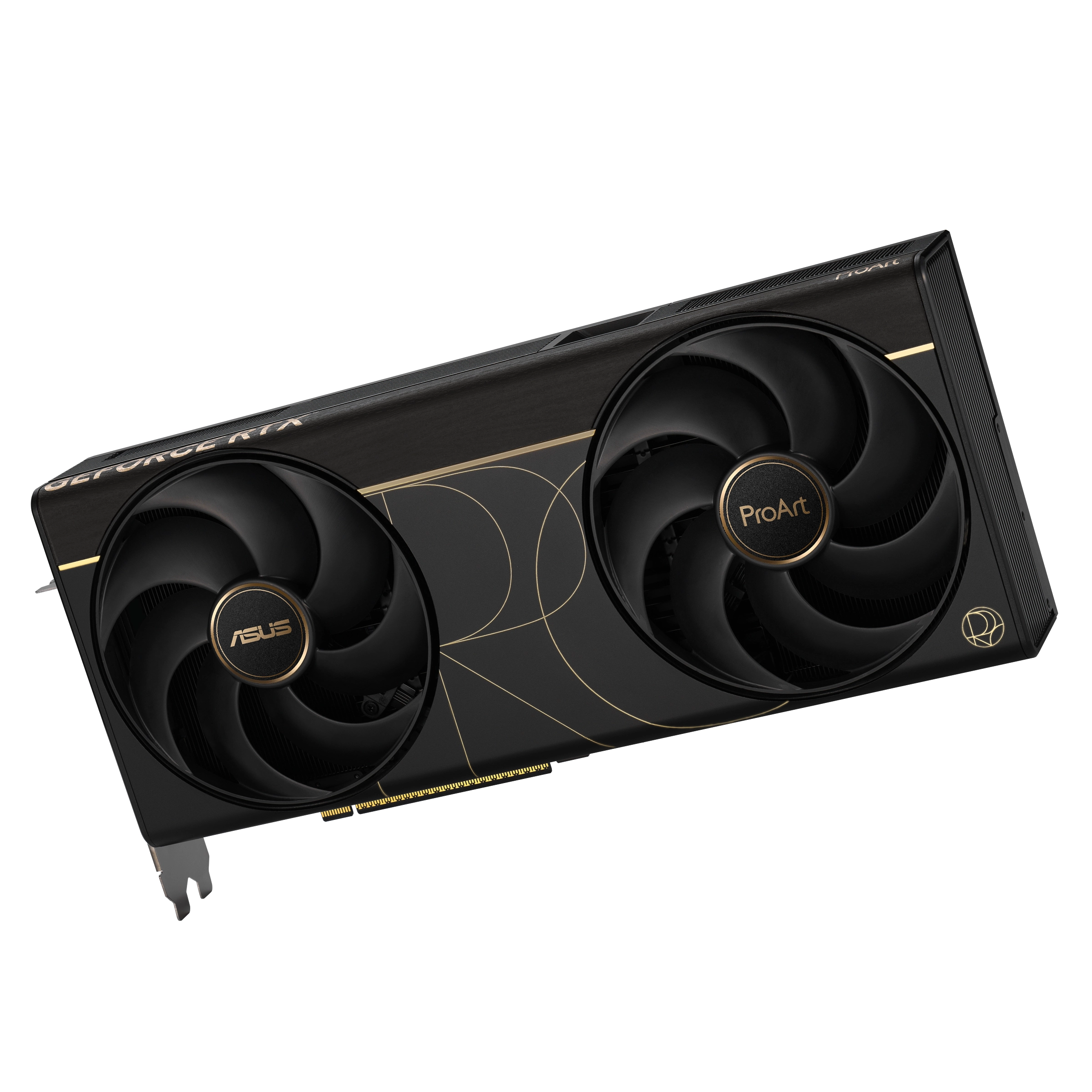

Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Premium Cooling
Exceptional Thermal in Compact 2.5-Slot Design
Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.

Specification

Product
Product id	1022055
Brand	AsusTek
Partnr	90YV0P00-M0NA00
EAN/UPC code	4711636502351
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5090
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	21760
Processor frequency	2482 MHz
Processor frequency (OC mode)	2512 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	32 GB
Graphics adapter memory type	GDDR7
Memory bus	512 Bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	2
HDMI version	2.1b
USB Type-C ports quantity	1
DisplayPort version	2.1b
Performance
TV tuner integrated	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
NPU performance up to	3352 TOPs
Overclocked (OC) edition	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 ventilator(en)
Number of slots	2.5
Product colour	Black
SFF ready	Y
Power
Minimum system power supply	1000 W
Weight & dimensions
Weight	1810 g
Depth	50 mm
Length	304 mm
Height	140 mm
Packaging data
Manual	Y
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	2471 g
Package type	Box
