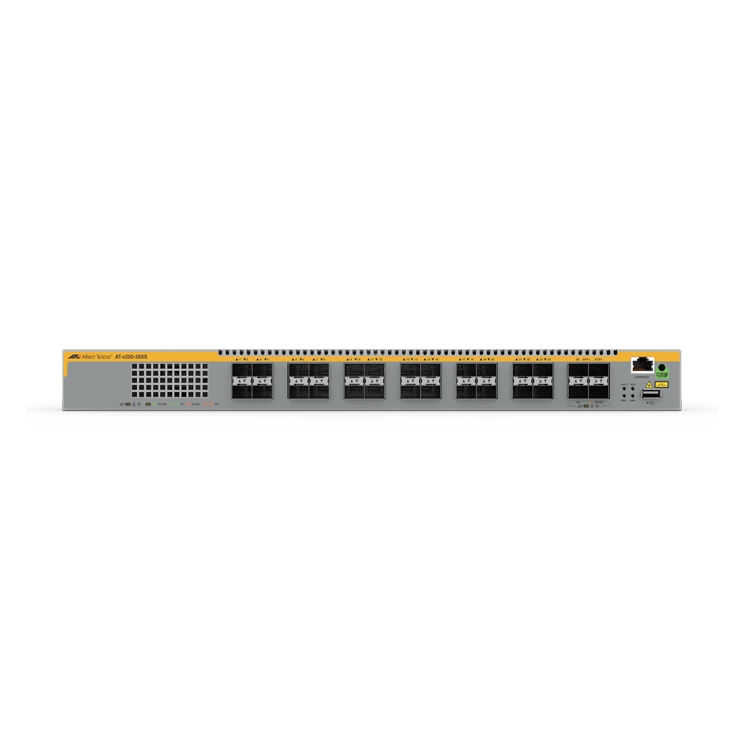

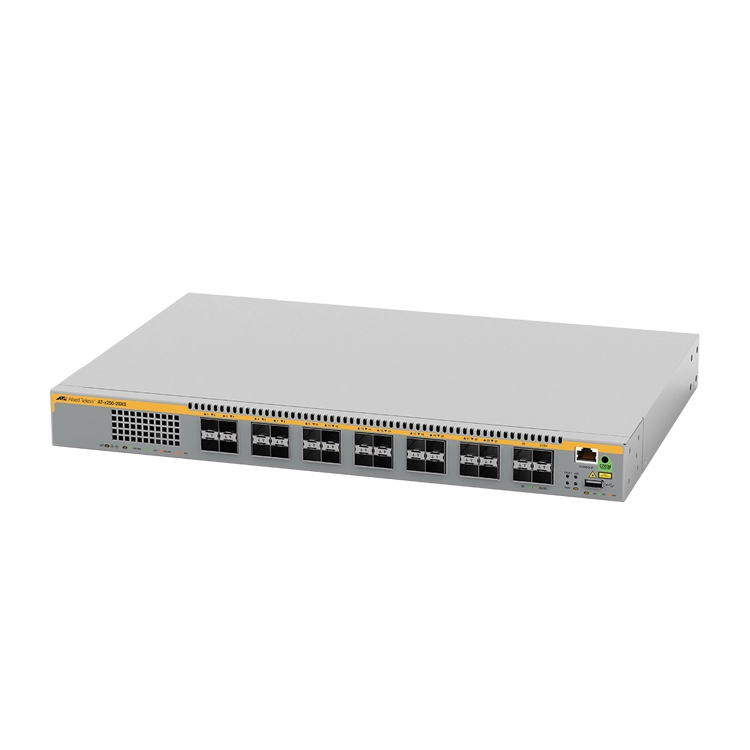

10 Gigabit Stackable Edge Switches

Allied Telesis x250 Series 10 Gigabit Layer 3 stackable switches provide resilient high-speed edge connectivity. All ports support up to 10G speed enabling seamless communication for enterprise servers and other modern applications, with multi-gigabit or fiber connectivity.

Enable a resilient network edge solution using Virtual Chassis Stacking (VCStack™)
Enjoy high-performing network access with multi-gigabit speeds of 1/2.5/5/10G on all edge ports to connect any device, old or new
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber models
Maximize application performance with high throughput 10G (SFP/SFP+) uplink ports
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)

Specification

Product
Product id	1006995
Brand	Allied Telesis
Partnr	990-007954-50
EAN/UPC code	767035230016
Warranty (months)	Limited Lifetime Warranty
Data transmission
MAC address table	32000 entries
Switching capacity	560 Gbit/s
Forwarding rate	416.7 Mpps
Static route	Y
Number of static routes	16
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	8 MB
Network
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az
10G support	Y
Port mirroring	Y
Policy-based routing	Y
Full duplex	Y
Flow control support	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	4094
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
System event log	Y
MIB support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	N
SFP+ module slots quantity	28
Security
DHCP features	DHCPv6 relay, DHCP snooping, DHCPv6 client
Access Control List (ACL)	Y
IGMP snooping	Y
Authentication type	RADIUS, TACACS+
Security algorithms	SSH, SSL/TLS, SHA-1, SHA-256, SHA-384, SHA-512
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Authentication	MAC-based authentication, Web-based authentication
Weight & dimensions
Width	440 mm
Depth	290 mm
Height	44 mm
Weight	3800 g
Power
Power supply included	Y
Multicast features
Multicast support	Y
Design
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Grey
LED indicators	Y
Operational conditions
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90 procent
Performance
Memory type	DDR4-SDRAM
Internal memory	1024 MB
Flash memory	256 MB
