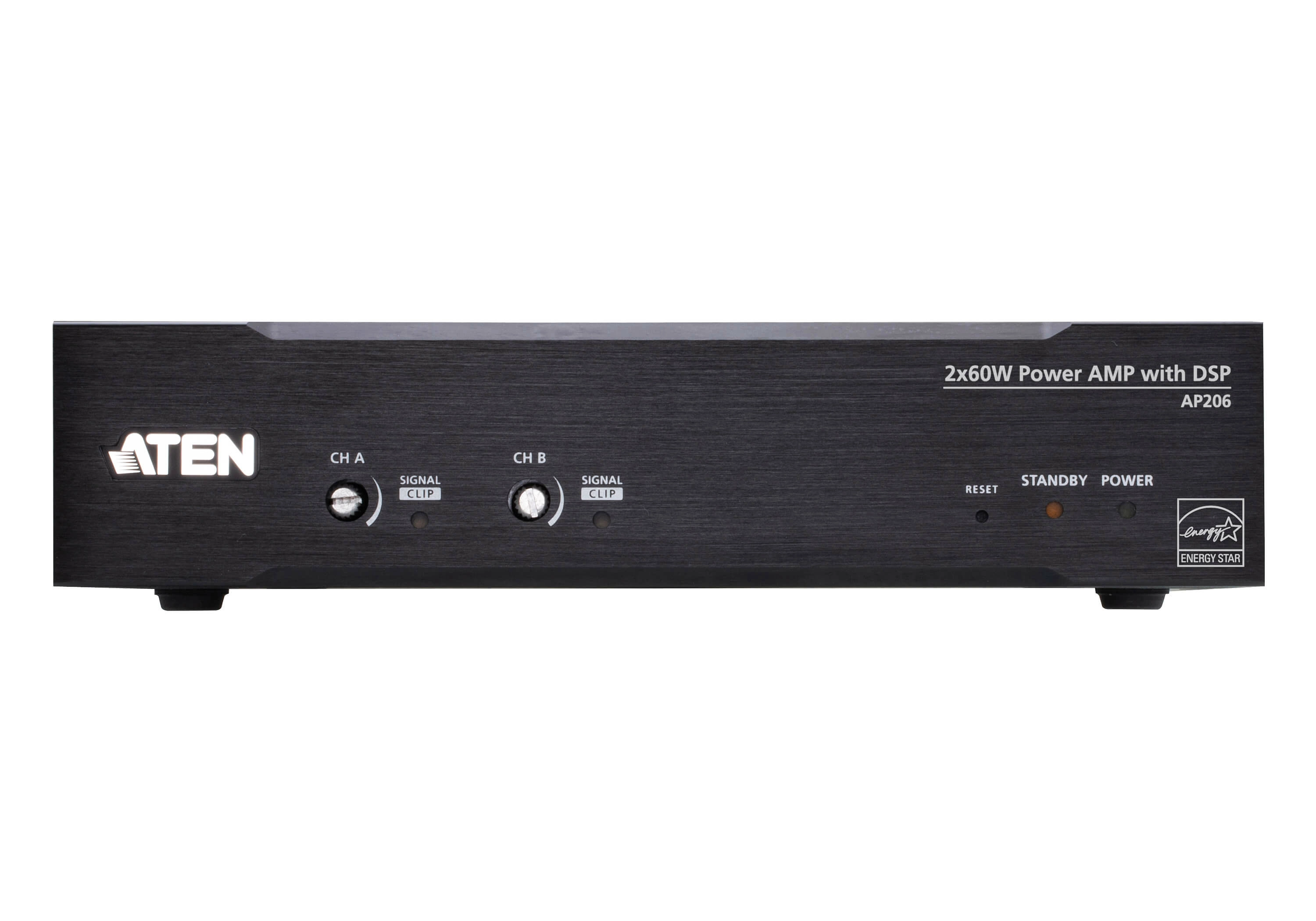

ATEN AP206 is a dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP206 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP206 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes.

Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.

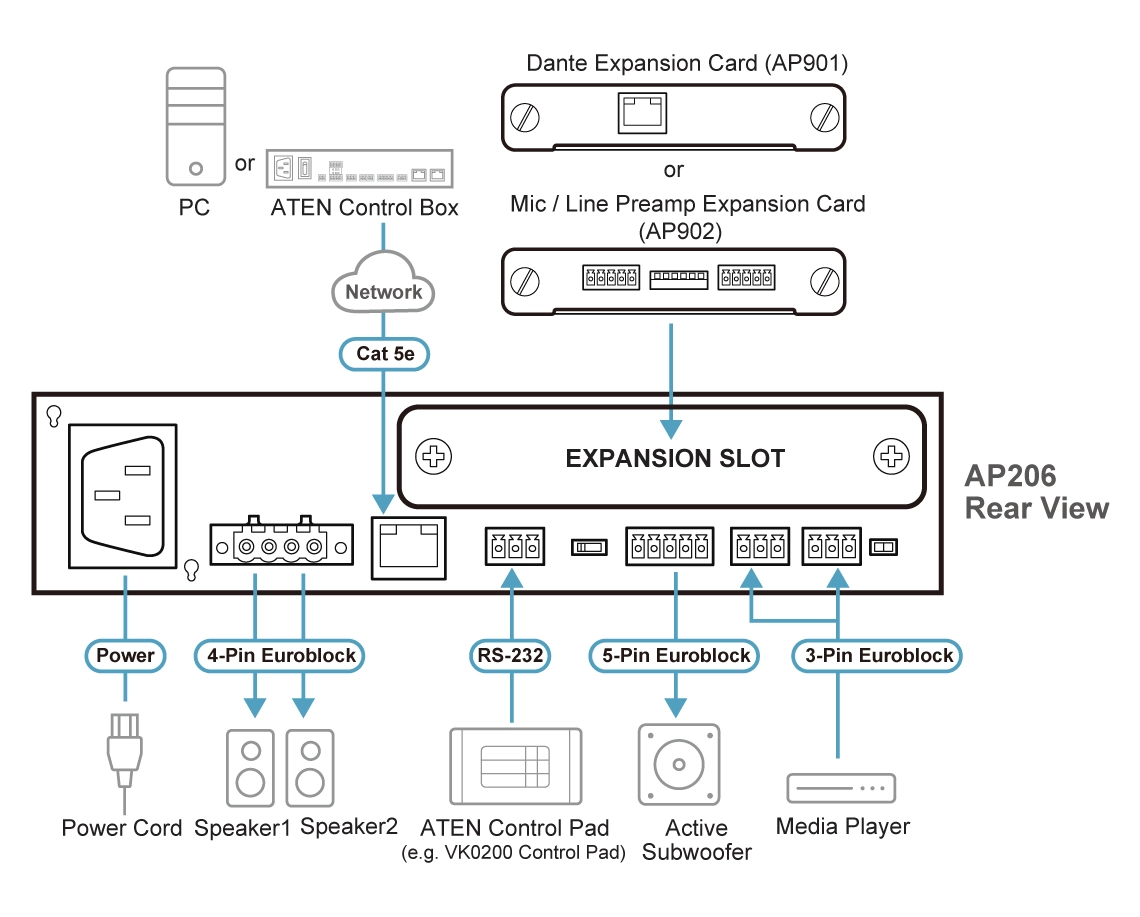

Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.

Specification

Product
Product id	955291
Brand	Aten
Partnr	AP206-AT-G
EAN/UPC code	4710469348853
Warranty (months)	3 years
Audio
Peak power per channel	120 W
Frequency range	50 - 20000 Hz
Amplifier class	D
Total Harmonic Distortion (THD)	0.1 procent
Input impedance	20000 Ohm
Output impedance	600 Ohm
RMS rated power	120 W
Ports & interfaces
Speakers connectivity type	Euroblock
RS-232 ports	1
Number of Euroblock output connectors	2
Number of Euroblock input connectors	2
RS-232 connector type	3-pin
Technical details
Connectivity technology	Wired
Product colour	Black
Material	Metal
Country of origin	Taiwan
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power protection features	Overload, Under voltage
Maximum current	2 A
Weight & dimensions
Width	323 mm
Depth	200 mm
Height	44 mm
Weight	2150 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Certificates
Certification	FCC, CE, UKCA
Logistics data
Master (outer) case width	322 mm
Harmonized System (HS) code	85184000
Master (outer) case length	462 mm
Master (outer) case height	140 mm
Master (outer) case weight	3500 g
Packaging data
Package weight	3500 g
Package width	322 mm
Package depth	462 mm
Package height	140 mm
