The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

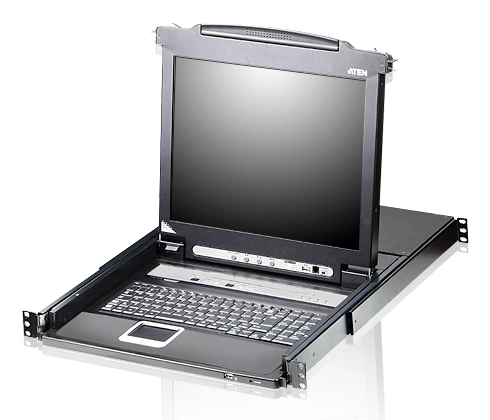

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specification

Product
Product id	987675
Brand	Aten
Partnr	CL5708N-ATA-DNG
EAN/UPC code	4710469343346
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Response time	5 ms
Display type	TFT
Pixel pitch	0.264 x 0.264 mm
On Screen Display (OSD)	Y
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	256
Console port	SPHD-18
Daisy chain	Y
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	8
Push button	Y
Product colour	Black
Auto scan delay (min)	1 s
Operating relative humidity (H-H)	0 - 80 procent
Auto scan delay (max)	255 s
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Compliance certificates	RoHS

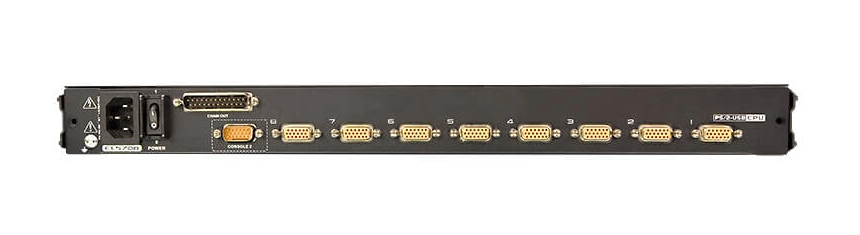

Ports & interfaces
Serial ports quantity	1
RJ-45 ports quantity	1
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2
I/O ports	1x DB-25 1x RJ-11
Keyboard
Built-in touchpad	Y
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	689.2 mm
Height	44 mm
Depth	480 mm
Weight	13390 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
