The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Specification

Product
Product id	987707
Brand	Aten
Partnr	CL5716MW-ATA-DNG
EAN/UPC code	4710469344299
Display
Display diagonal	17.3 inch
Display resolution	1920 x 1080 Pixels
Display	TFT-LCD
Response time	16 ms
Pixel pitch	0.1989 x 0.1989 mm
On Screen Display (OSD)	Y
Viewing angle, vertical	170 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	800:1
Display brightness	250 cd/m²
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	512
Console port	SPHD-18
Daisy chain	Y
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	16
Push button	Y
Product colour	Black
Auto scan delay (min)	1 s
Operating relative humidity (H-H)	0 - 85 procent
Auto scan delay (max)	255 s
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Country of origin	China

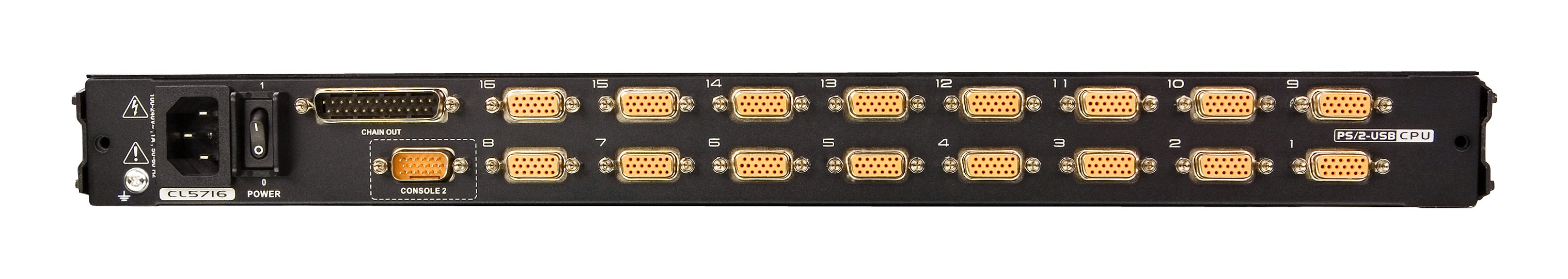

Ports & interfaces
VGA (D-Sub) ports quantity	16
Serial ports quantity	1
Video port type	VGA
RJ-45 ports quantity	1
Mouse port type	USB, PS/2
Keyboard port type	USB, PS/2
USB 2.0 Type-A ports quantity	1
Keyboard
Built-in touchpad	Y
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	15.6 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	689.2 mm
Height	44 mm
Depth	480 mm
Weight	13650 g
Packaging data
Package weight	16190 g
Package width	668 mm
Package depth	833 mm
Package height	135 mm
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
Logistics data
Master (outer) case width	668 mm
Master (outer) case length	833 mm
Master (outer) case height	135 mm
Master (outer) case weight	16190 g
