The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

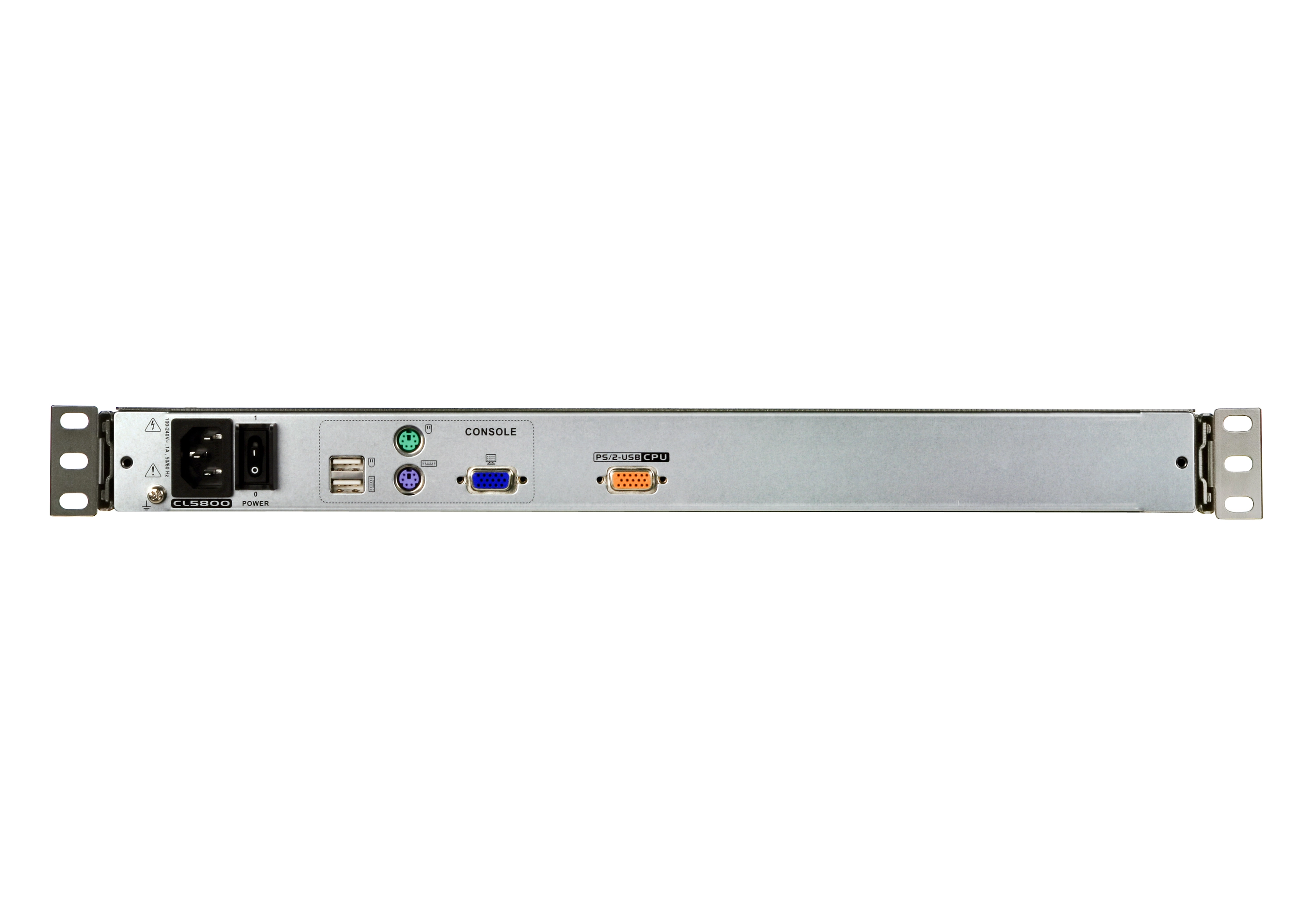

For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specification

Product
Product id	987723
Brand	Aten
Partnr	CL5800N-ATA-DNG
EAN/UPC code	4710469343391
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Response time	5 ms
Display type	TFT
Pixel pitch	0.294 x 0.294 mm
On Screen Display (OSD)	Y
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Technical details
Material	Metal
LED indicators	Y
Number of computers controlled	1
Console port	SPHD-18
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	1
Push button	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Compliance certificates	RoHS
Ports & interfaces
VGA (D-Sub) ports quantity	1
Video port type	VGA
Mouse port type	USB, PS/2
Keyboard port type	USB, PS/2
USB 2.0 Type-A ports quantity	3
I/O ports	1x RJ-11
Keyboard
Built-in touchpad	Y
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	680.4 mm
Height	44 mm
Depth	480 mm
Weight	14270 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
