Features

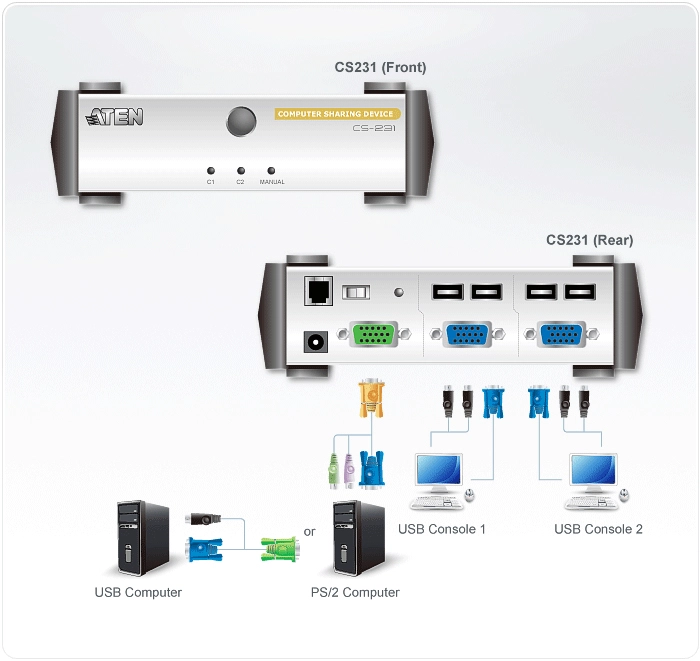

- Single computer is shared by two USB consoles.
- Supports USB and PS/2 computers.
- Multiplatform Support (Windows, Mac, Unix, Linux).
- Manual or Auto console selection.
- On-Screen-Display informs user when system is in use.
- No Software required.
- Private Mode for a privileged user.
- Screen saver function.
- Supports VGA, SVGA Multisync monitors.
- Firmware Upgradable.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Unix.

Package Contents

- 1x Computer Sharing Device
- 1x 2L-5202U USB KVM Cable (1, 8m)
- 1x0AD6-1605-09EG Power Adapter
- 1x Firmware Upgrade Cable
- 1x DIP Switch Sticker
- 1x User Instructions

Specification

Product
Product id	372745
Brand	Aten
Partnr	CS231C-AT-G
EAN/UPC code	4710423774506
Ports & interfaces
USB 2.0 ports quantity	4
DC-in jack	Y
VGA (D-Sub) ports quantity	2
KVM switch ports quantity	1
Performance
LED indicators	Y
Housing material	Metal
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	140 mm
Depth	87 mm
Height	55 mm
Weight	560 g
