The CAMLIVE MX (UC3310) UVC Camera Seamless Matrix enables the conversion of up to two 4K @ 30 USB camera sources into one HDMI, allowing seamless switch among the sources. Besides, it features the encoding solution supporting 1080p@30 UVC output simultaneously for live broadcasting on popular streaming software such as Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch, guaranteeing an engaging video conferencing experience with high quality images and sound.

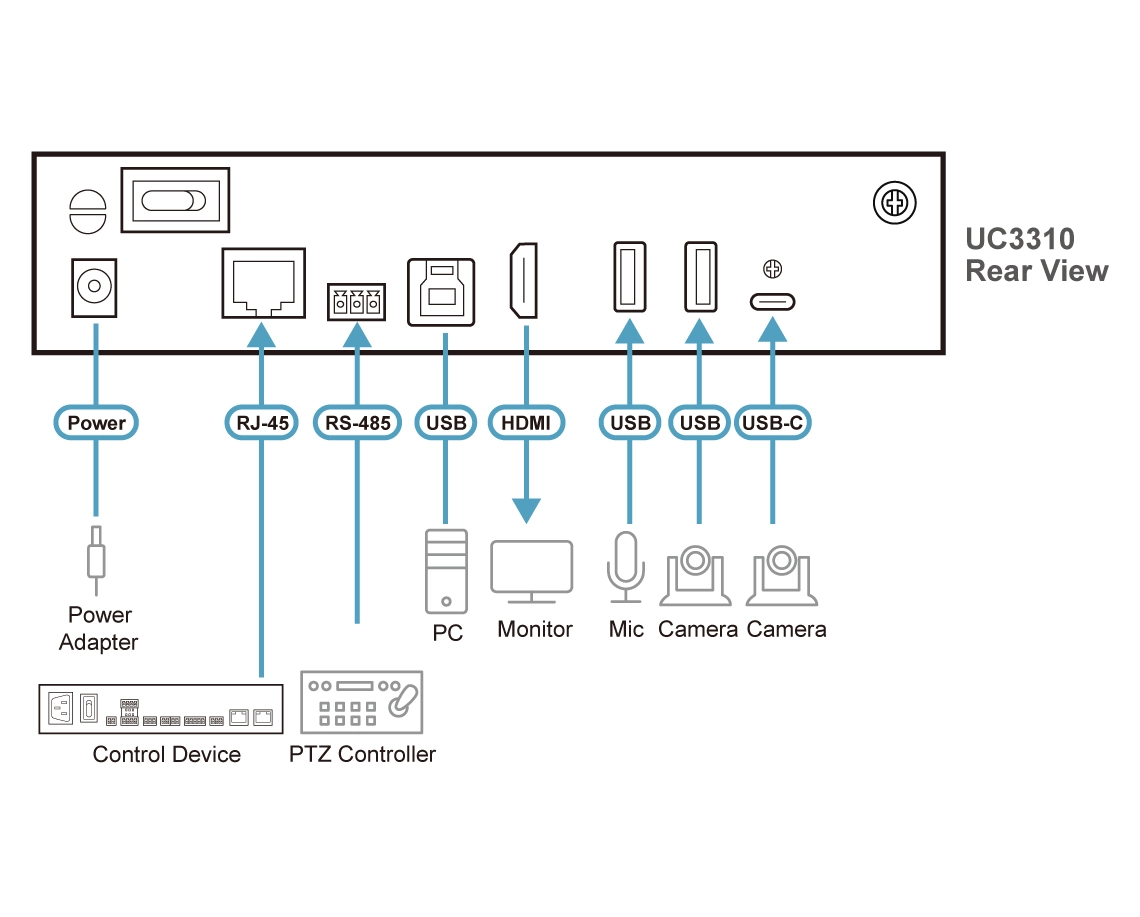

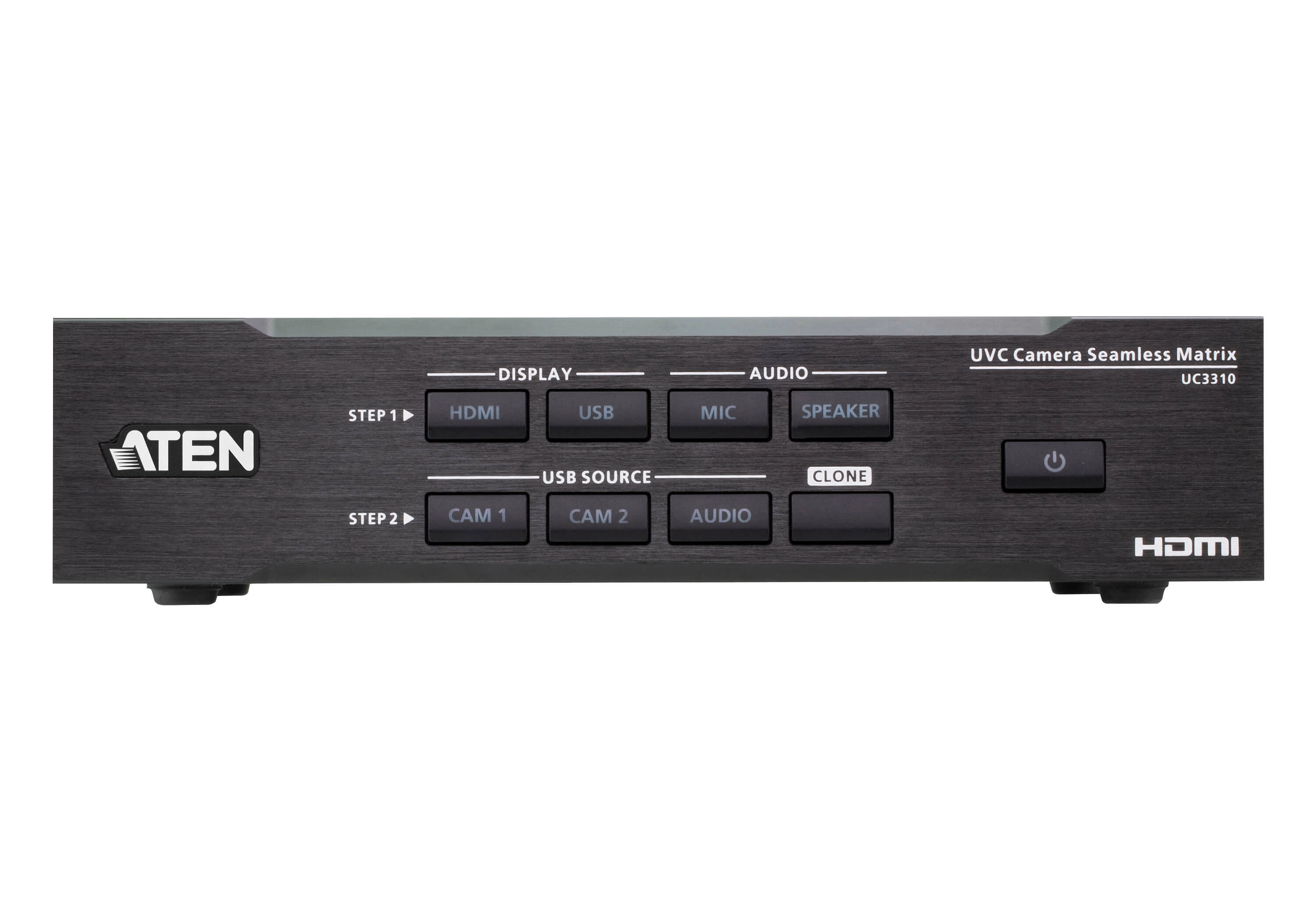

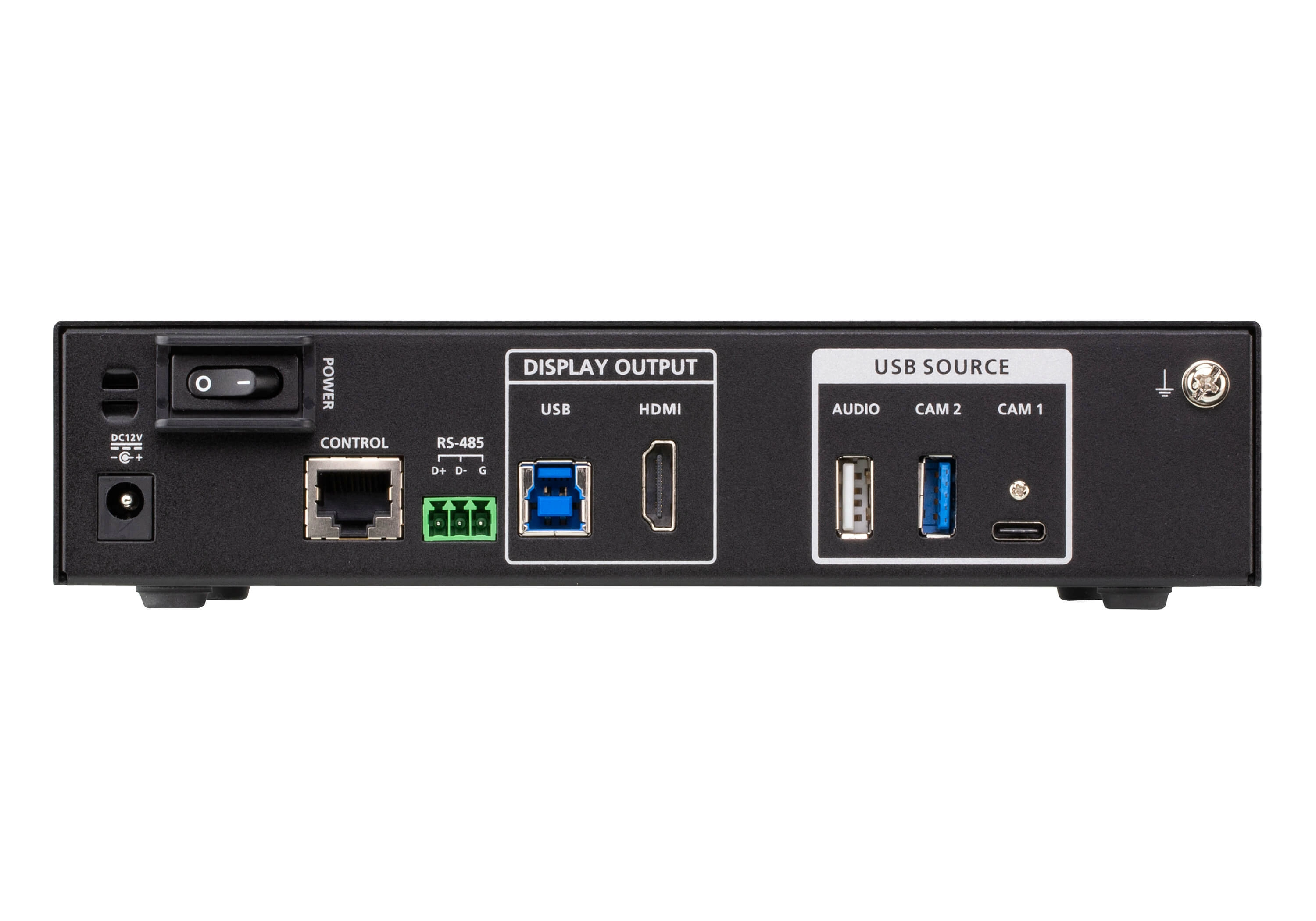

Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.

Specification

Product
Product id	968880
Brand	Aten
Partnr	UC3310-AT-G
EAN/UPC code	4710469349317
Technical details
Internal	N
Harmonized System (HS) code	85176200
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Housing material	Metal
Product colour	Black
Performance
Country of origin	Taiwan
Video
Supported video modes	720p, 1080p, 2160p
Audio
Audio sampling rate	48 kHz
Audio sampling rate	16 Bit
Ports & interfaces
USB port	Y
USB connector type	USB Type-A, USB Type-C
Number of HDMI outputs	1
USB ports quantity	3
Weight & dimensions
Width	200 mm
Depth	164.6 mm
Height	44 mm
Weight	980 g
Power
Power supply type	DC
Output voltage	12 V
Software
Windows operating systems supported	Windows 10, Windows 11
Mac compatibility	Y
System requirements
Minimum processor	Intel i3 Dual Core 2.8Ghz
Minimum RAM	4000 MB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Logistics data
Master (outer) case weight	5500 g
Master (outer) case length	427 mm
Master (outer) case net weight	3690 g
Packaging data
Package weight	1650 g
Package height	117 mm
Package width	207 mm
Package depth	414 mm
Other features
Video in	1 x USB3.2 Gen1 Type A, 1 x USB3.2 Gen1 Type C
RS-232 ports	1
Master (outer) case width	370 mm
Master (outer) case height	232 mm
