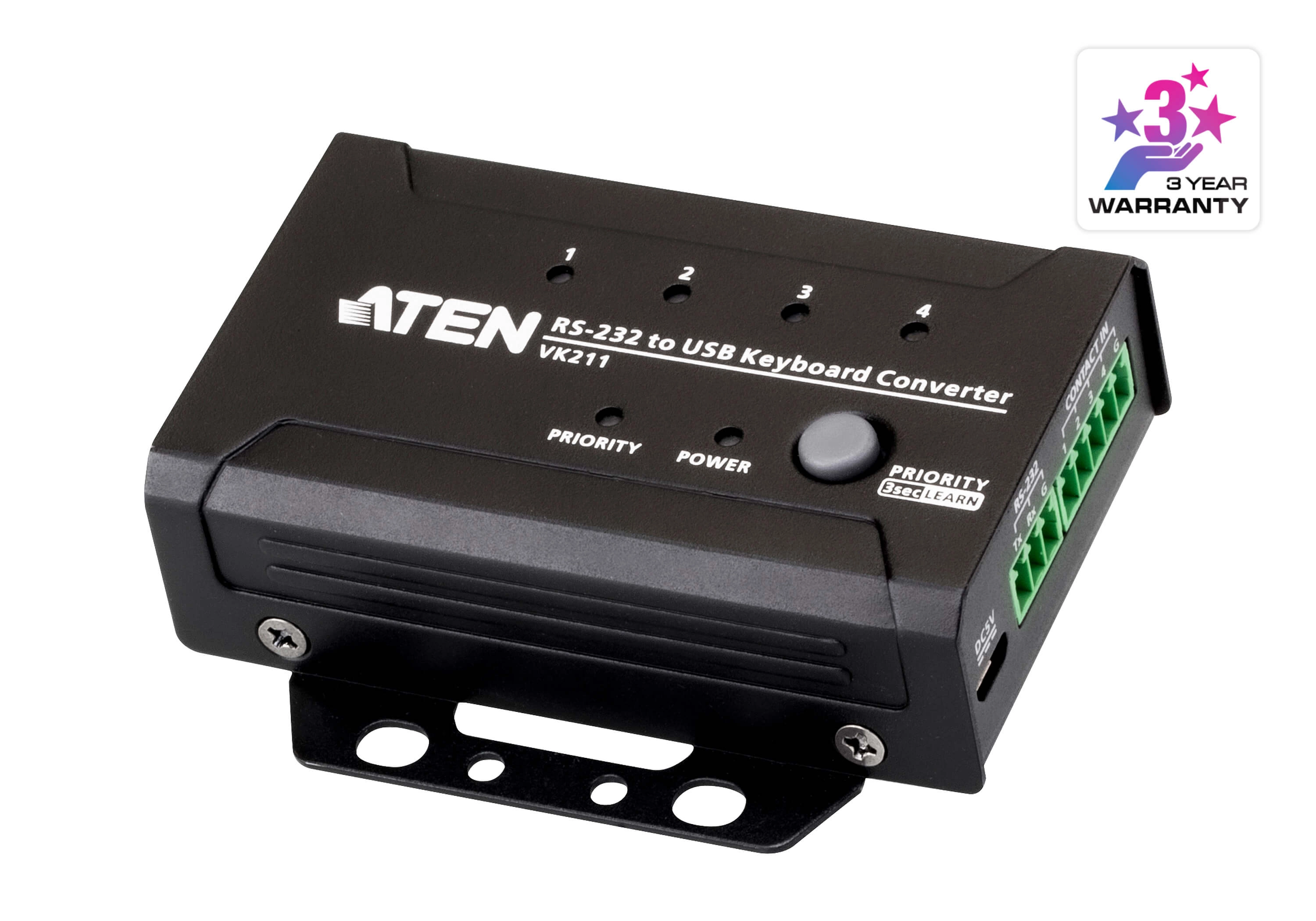

VK211 converts RS-232 commands to full-range USB keyboard signals for remote control over PC-based devices/KVM Switches, broadening ATEN Control System/3rd party controller applications. Besides, VK211 can recall the stored key codes and store up to 4 preset actions triggered via Contact In signals. The Learn function captures USB keyboard signals by pressing certain key combinations to ease the setup procedure and configurations.

A priority control push button is easy to spot on the panel for local operators to manage remote access, ensure operational accuracy, and handle emergencies. LEDs are built in to indicate the status of digital input signals, priority control, and power at a glance.

With the capabilities of emulating USB keyboard signals, the VK211 is perfect to provide RS-232 / Contact In interfaces for KVMs or any PC-based devices without remote control functionalities. Its compact size and non-power source design are suitable for applications such as factory production lines, control rooms, or any facility that requires automation with control system and remote secure operation without installing any software.

Specification

Product
Product id	979437
Brand	Aten
Partnr	VK211-AT
EAN/UPC code	4710469349232
Warranty (months)	3 years
Ports & interfaces

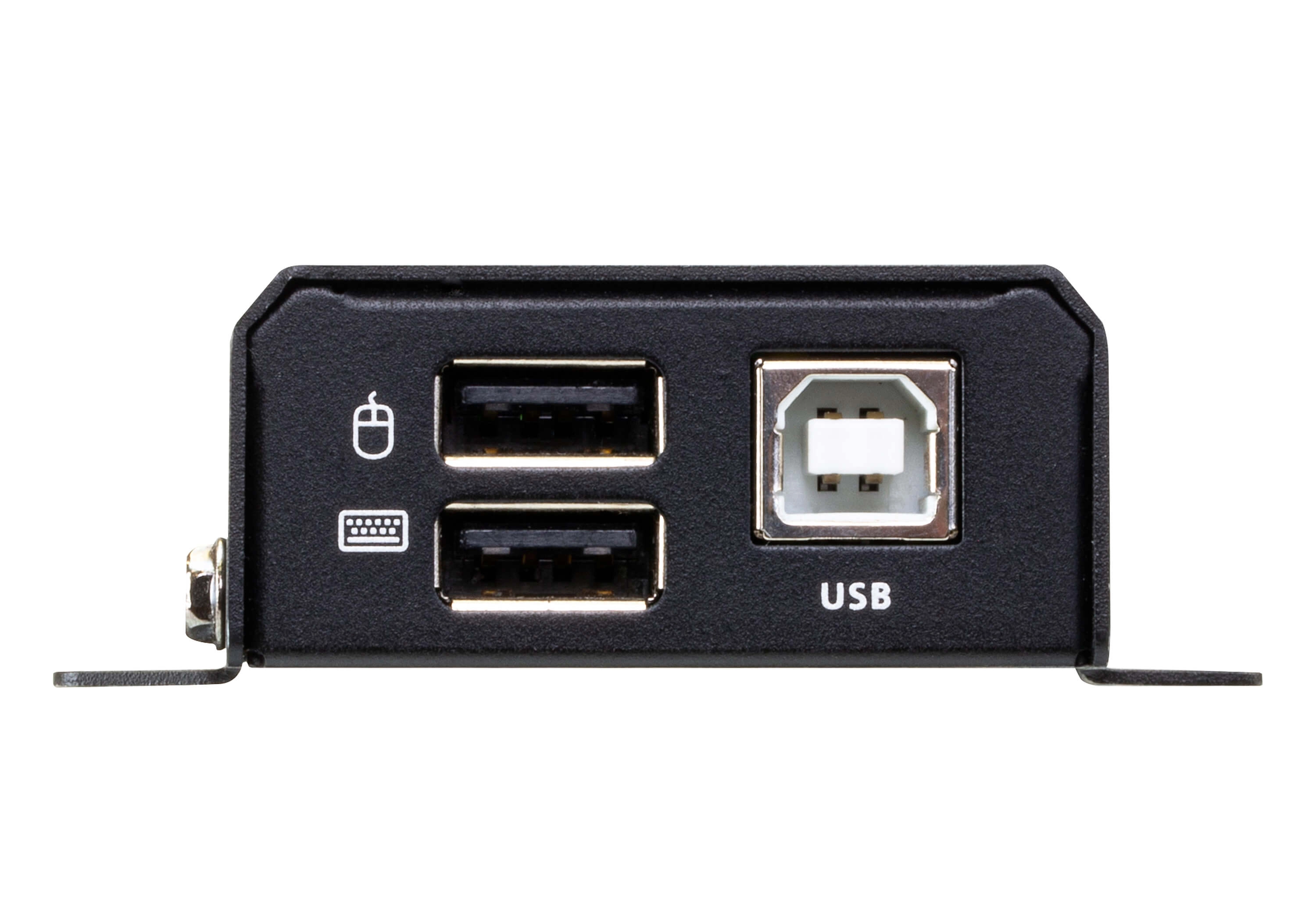

USB 2.0 ports quantity	3
RS-232 ports	1
Console port	USB
Number of console ports	2
DC-in jack	Y
Weight & dimensions
Width	73 mm
Depth	82 mm
Height	26.2 mm
Weight	270 g
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	360 g
Power
Power consumption (typical)	0.69 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Indication
LED indicators	Y
Technical details
Country of origin	Taiwan
Design
Product colour	Black
Enclosure material	Metal
Logistics data
Harmonized System (HS) code	85176200
