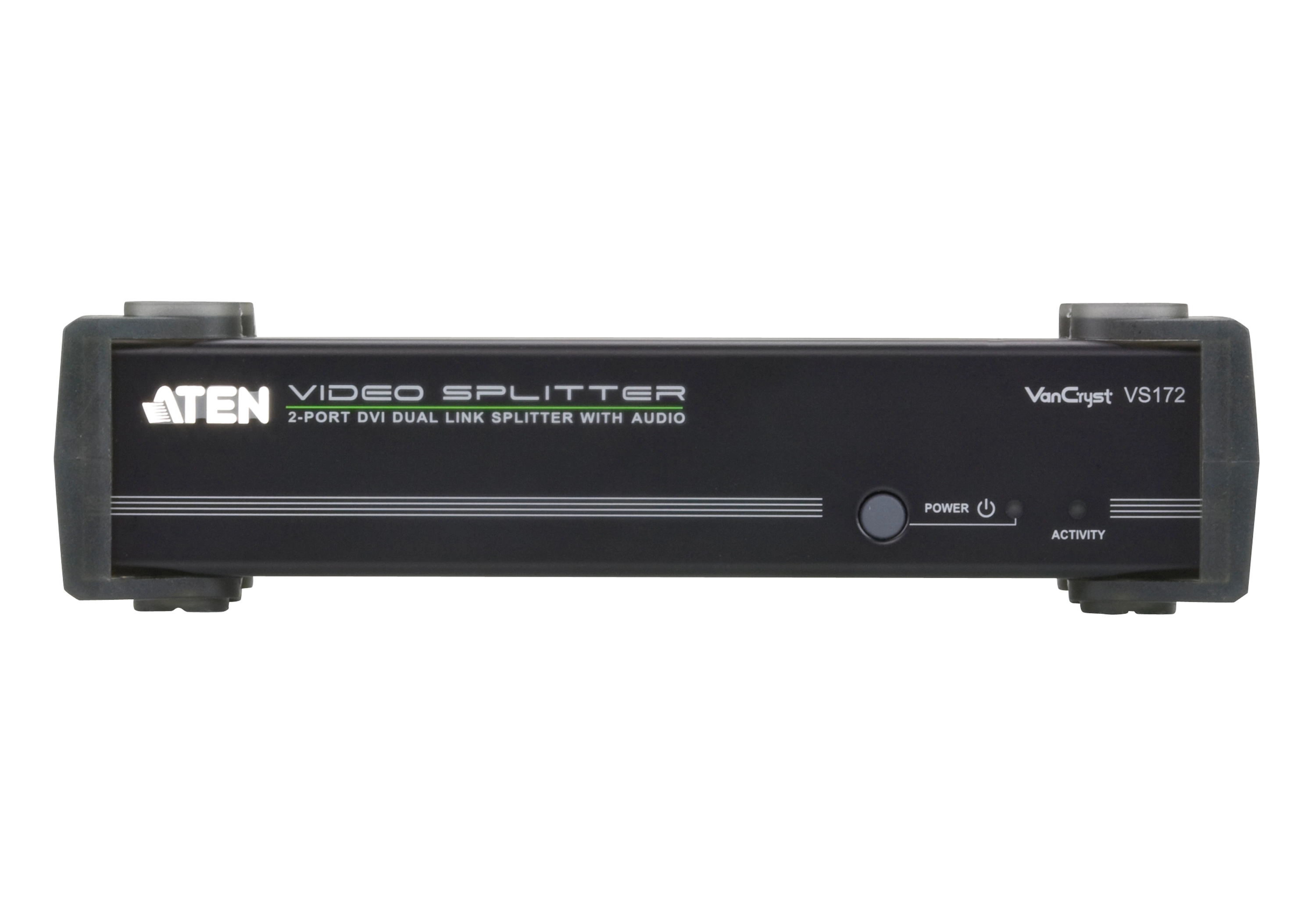

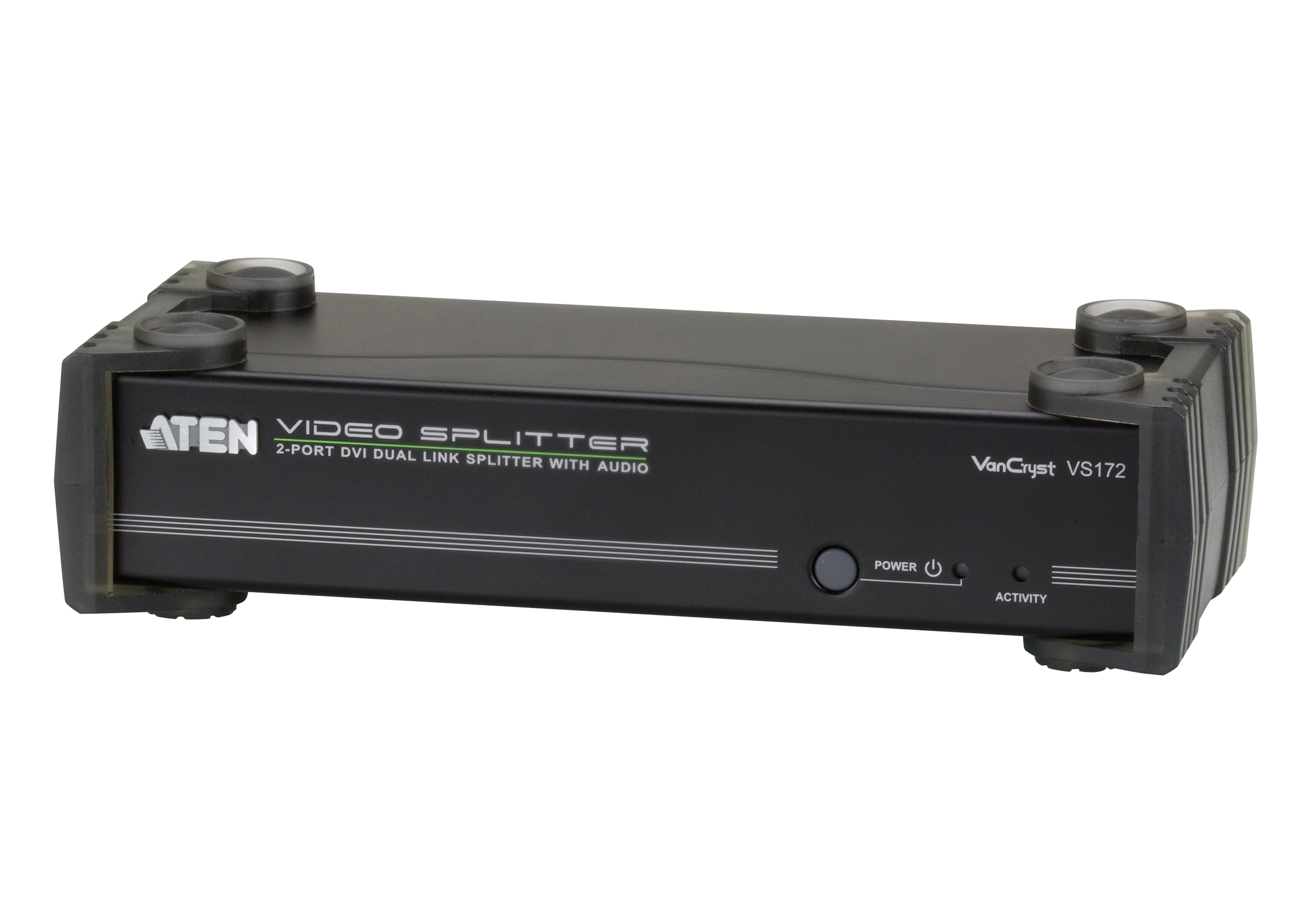

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

Specification

Product
Product id	420461
Brand	Aten
Partnr	VS172-AT-G
EAN/UPC code	4710423778481
Features
Product colour	Black
Housing material	Metal
Maximum resolution	2560 x 1600 Pixels
Maximum operating distance	5 m
Power LED	Y
Technical details
Audio input	3.5mm
Audio output	3.5mm
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent

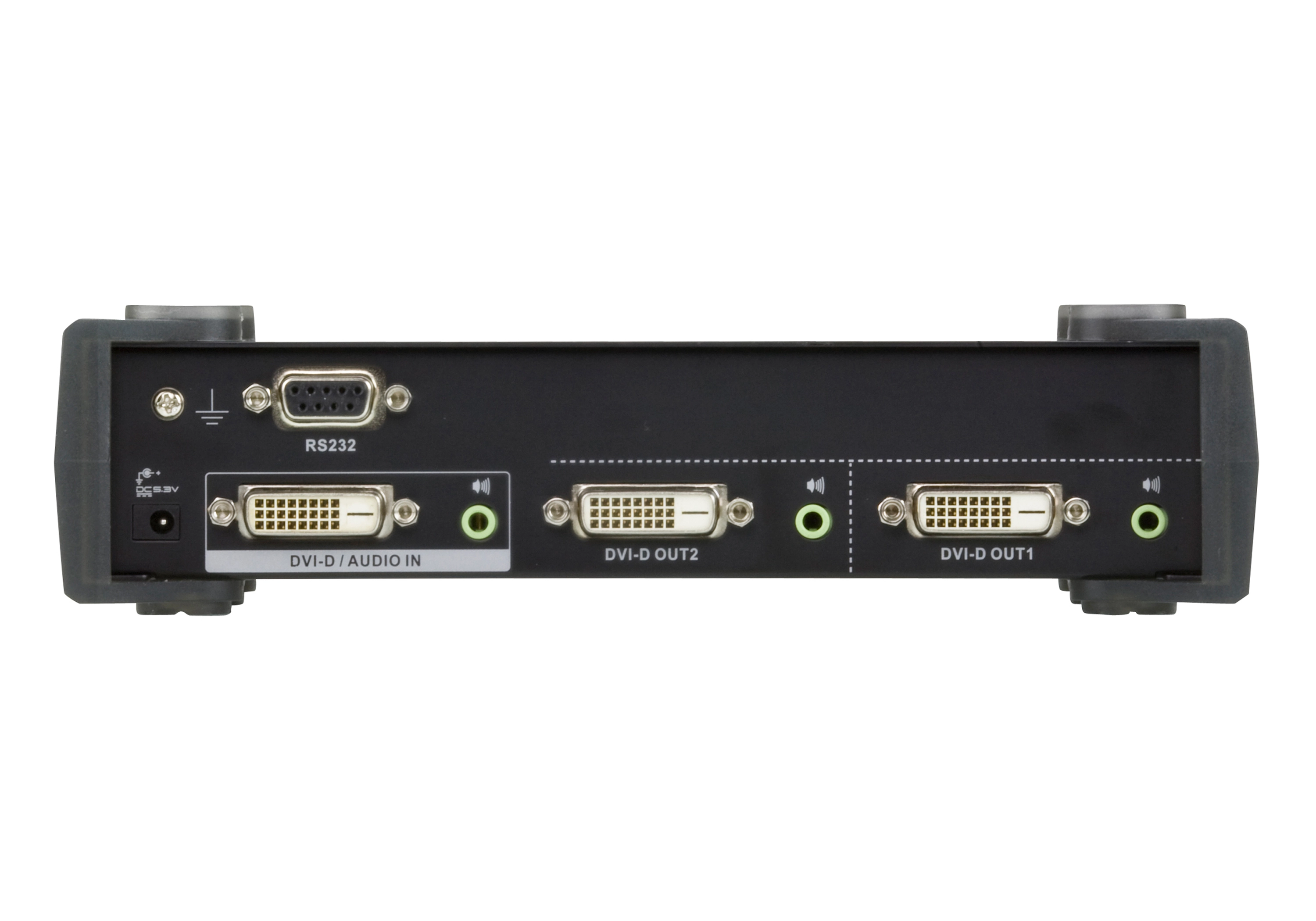

Ports & interfaces
Video ports quantity	3
Video port type	DVI
Video in	DVI-D DL
Video out	3x DVI-D
Audio ports quantity	3
DC-in jack	Y
Serial ports quantity	1
Packaging content
Packaging content	RoHS
Power
AC input voltage	5.3 V
Power consumption (typical)	3.1 W
Weight & dimensions
Dimensions (WxDxH)	88 x 210 x 55.5 mm
Weight	680 g
