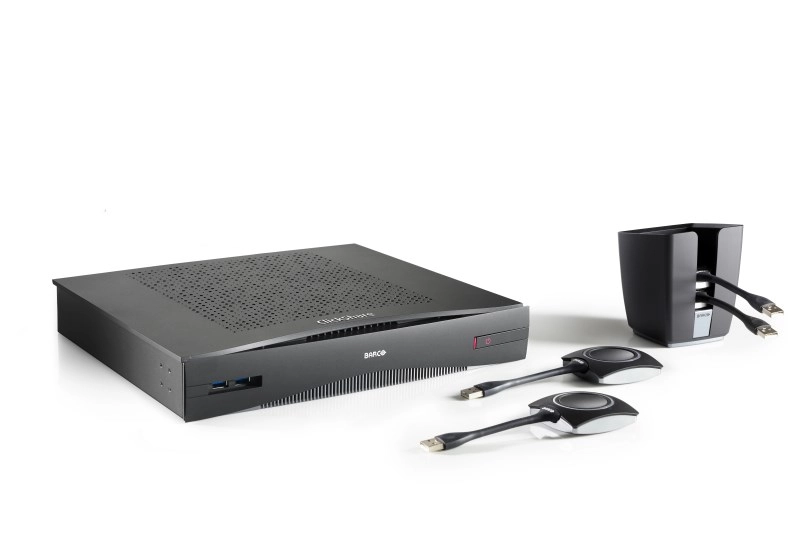

About ClickShare CSE-800

The CSE-800 was designed to bring the ClickShare experience to boardrooms, high-end meeting rooms, and conference rooms. Introducing a number of unique features, including simultaneous sharing of up to 8 people, automatic & manual moderation, and blackboarding & annotation, the CSE-800 is the most powerful system in the ClickShare family today. The CSE-800 was designed for enterprise rollouts and offers enhanced security features, a wider range of connectivity options – including AirPlay and Google Cast support for non-HDCP content – and central management.

The power of 2

The CSE-800 features two HDMI inputs and outputs. There is a direct connection with legacy equipment and easy integration with conferencing systems, and two 4K DCI displays can be driven by a single base unit. Furthermore, the 2 network connections allow separate and simultaneous connection to multiple networks (e. g. guest and corporate networks), and provide additional security and convenience for users. Allowing up to 8 persons to share content simultaneously, the CSE-800 ensures connectivity to the central screen and encourages collaboration.

The moderation functionality was specifically designed for use in larger rooms, with multiple people sharing at the same time. To prevent the rapid switching of screens, making the content difficult to follow, a moderator can manually select which content appears on screen and when, ensuring a great experience for all attendees. The moderation function can be switched off at any time, returning the system into ClickShare's normal operating mode, with content being shared upon the click of a button. For user convenience, security features of the CSE-800 can be set to one of three predefined levels, depending on the company’s policies and needs.

Contains:
- R9861580EU
- 4x R9861500D01
- R9861500T01

Accessories included:
- power cables CEE7 and BS 1363
- wall/ceiling mounting brackets
- antenna extension cables

Specification

Product
Product id	565163
Brand	Barco
Partnr	R9861580EU
EAN/UPC code	5400503000128
Warranty (months)	3 years
Design
Form factor	Desktop
Product colour	Black
LED indicators	Y
Certification	FCC, CE
Features
Maximum resolution (HDMI)	4096 x 2160 Pixels
AirPlay mirroring	Y
Maximum frame rate	60 fps
Number of users	64 gebruiker(s)
Streaming capability	Y
Management features
Reset button	Y
On/off switch	Y
Antenna
Antenna type	External
Antennas quantity	4
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g
Frequency band	2.4 & 5 GHz
Ethernet LAN	Y
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, PEAP, WPA2-PSK
Maximum operating distance	30 m
Ports & interfaces
Interface	HDMI
Number of HDMI outputs	2
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
Headphone outputs	1
S/PDIF out port	Y
Power
Power source type	AC
Power consumption (max)	90 W
Power consumption (typical)	52 W
Input voltage	110 - 220 V
Power consumption (standby)	1 W
System requirements
Windows operating systems supported	Y
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 10.0, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Width	282.3 mm
Depth	206.5 mm
Height	46.2 mm
Weight	2200 g
Logistics data
Harmonized System (HS) code	85176990
