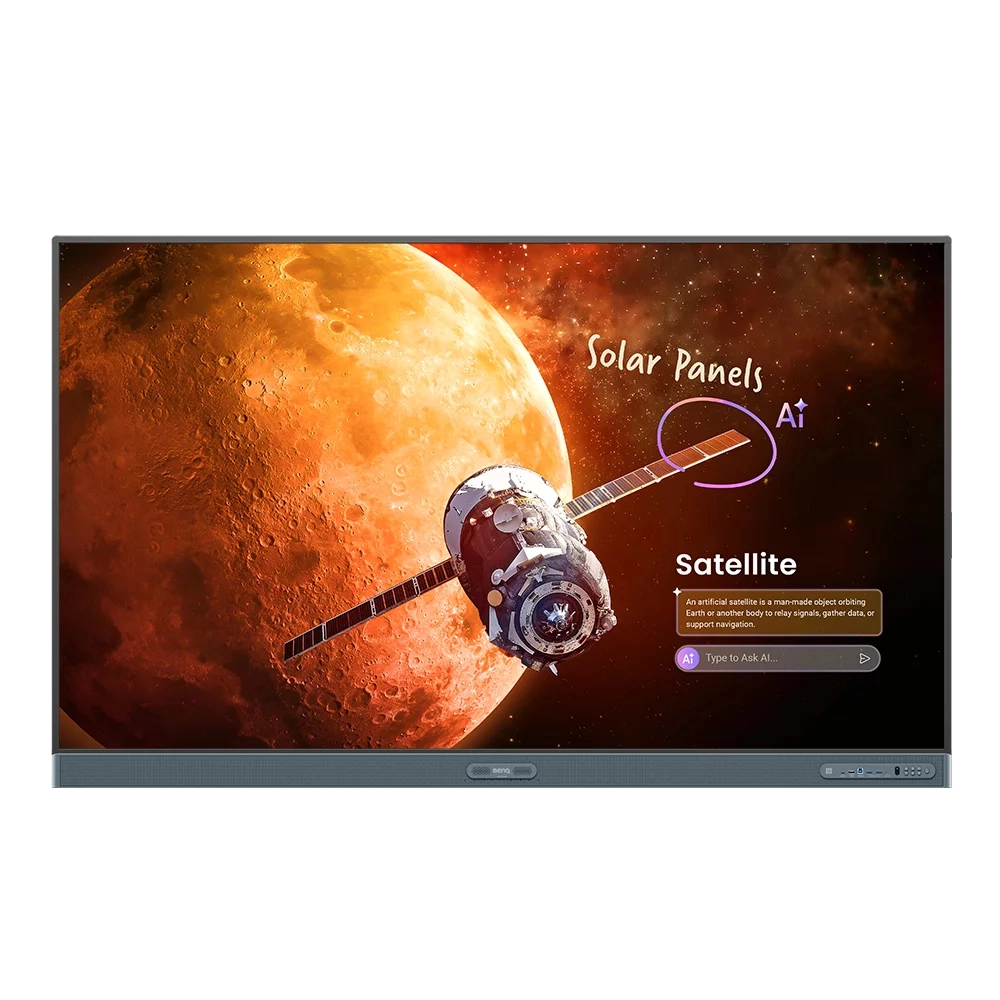

The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.

Specification

Product
Product id	1018961
Brand	BenQ
Partnr	9H.FC3TC.DE1
EAN/UPC code	4718755096075
Features
Display diagonal	86 inch
Display brightness	450 cd/m²
Display resolution	3840 x 2160 Pixels
Anti-glare screen	Y
HD type	4K Ultra HD
Panel type	IPS
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1200:1
Native aspect ratio	16:9
Response time	8 ms
Touchscreen	Y
Touch technology	Multi-touch
Touchscreen type	Infrared
Number of simultaneous touchpoints	50
Touch system response time	5 ms
Working area	1895 x 1066 mm
Product colour	Black
Operating system installed	Android
Country of origin	China
Surface material	Tempered glass
Hardness	9H
Computer system
Operating system version	15
Graphics adapter family	ARM
Network
Near Field Communication (NFC)	Y
Performance
Handheld remote control	Y
Humidity sensor	Y
Temperature sensor	Y
PM2.5 sensor	Y
Number of air ionizers	1
Motion sensor	Y
Technical details
Colour gamut	72 procent
Processor
Built-in processor	Y
Processor architecture	ARM Cortex A78 + ARM Cortex A55
Processor cores	8
Memory
User memory	64 GB
Internal RAM	16 GB
Ports & interfaces
Interface	HDMI
Wi-Fi	Y
Bluetooth	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN	Y
USB Type-C ports quantity	3
HDMI ports quantity	4
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI version	2.0
HDMI output ports quantity	1
DisplayPort version	1.2a
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Bluetooth version	5.2
S/PDIF out port	Y
Microphone connectivity	3.5 mm
USB Power Delivery	Y
VGA (D-Sub) ports quantity	1
Headphone connectivity	3.5 mm
Line-in	Y
Line-out	Y
OPS slot	1
Audio output	3
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
Speaker power	25 W
Built-in subwoofer	Y
Subwoofer RMS power	20 W
Built-in microphone	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	800 x 600 mm
Wall mountable	Y
Power
Power consumption (typical)	126.4 W
Power consumption (standby)	0.5 W
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 60 procent
Weight & dimensions
Width	1957 mm
Depth	130 mm
Height	1200.6 mm
Packaging data
Package width	2110 mm
Package depth	205 mm
Package height	1314 mm
Package weight	55000 g
Quantity per pack	1 stuk(s)
Packaging content
Cables included	HDMI, USB, USB Type-C
Mounting kit	Y
Stylus included	Y
Number of stylus pens	2
Logistics data
Customs product code (TARIC)	8528521000
Quantity per pallet	5 stuk(s)
