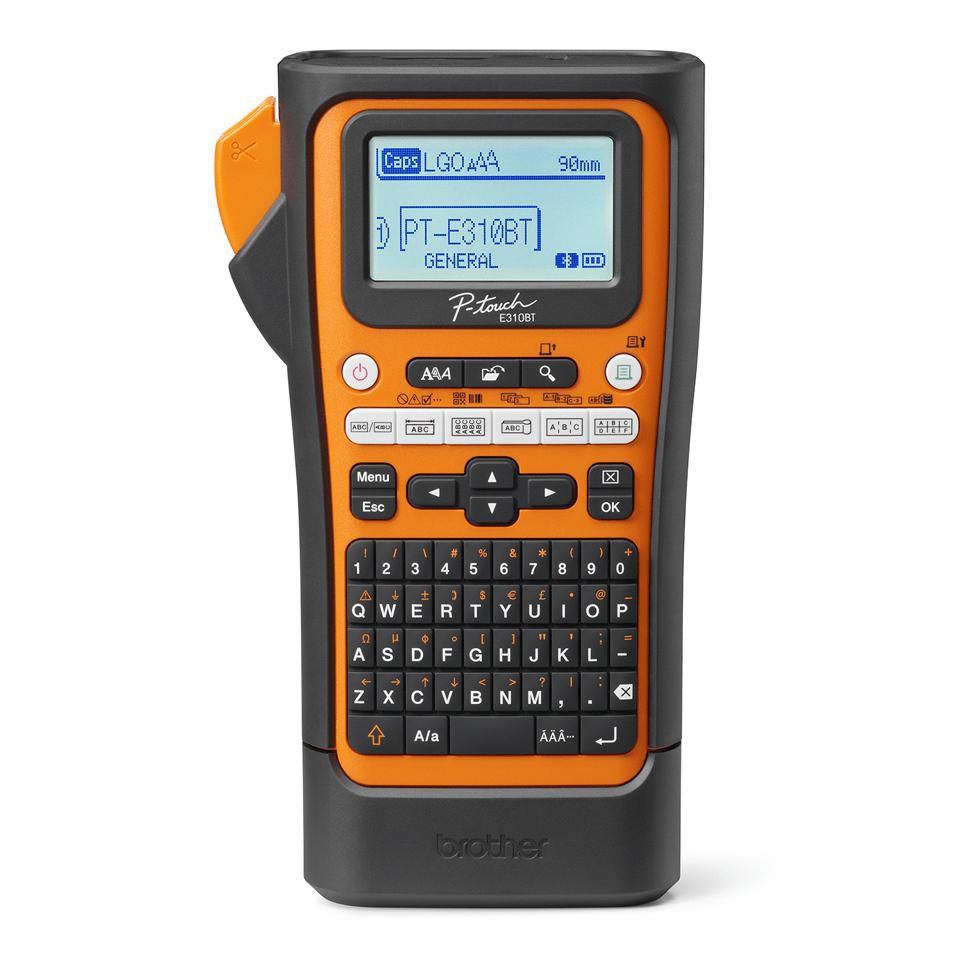

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.

Specification

Product
Product id	958970
Brand	Brother
Partnr	PTE310BTVPQL1
EAN/UPC code	4977766834049
Warranty (months)	24 months
Printing
Print technology	Thermal transfer
Colour	N
Maximum resolution	180 x 180 pixels
Print speed	20 mm/sec
Printable dot numbers	128 dot
Maximum printing width	15.8 mm
Maximum print height	18 mm
Vertical printing	Y
Mirror printing	Y
Rotated printing	Y
Maximum print length	1 m
Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN	N
Wi-Fi	N
Bluetooth	Y
Bluetooth version	5.0
USB port	Y
Performance
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E
Number of symbols	477
Number of fonts	7
Tape type	HSE/TZe
Number of printing lines (max)	5
Underline	Y
Design
Product colour	Black, Orange
Keyboard number of keys	64
Display	LCD
Built-in display	Y
Backlight display	Y
Keyboard layout	QWERTY
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Battery type	Built-in battery
Number of batteries supported	1
Battery technology	Lithium-Ion (Li-Ion)
Auto power off	Y
Power source type	Battery
Technical details
Pallet type	1200 x 1000 mm
Sustainability certificates	ENERGY STAR
Sustainability compliance	Y
PC connection	USB 3.2 Gen 1 (3.1 Gen 1)
Multi-block	99
Battery
Battery weight	190 g
Rechargeable battery	Y
Battery capacity (Watt-hours)	14 Wh
System requirements
Mobile operating systems supported	Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 80 procent
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	135 mm
Depth	236 mm
Height	70 mm
Weight	800 g
Packaging data
Package width	126 mm
Package depth	334.4 mm
Package height	393 mm
Package weight	3080 g
Packaging content
Cables included	USB
Batteries included	Y
Wrist strap included	Y
Warranty card	Y
Quick start guide	Y
Logistics data
Pallet height	165 mm
Pallet weight	258000 g
Number of cartons per pallet	24
Number of cartons per pallet layer	6
Number of layers per pallet	4
Quantity per pallet	72 stuk(s)
Other features
Number of frames	7
Languages support	Multi
Label memory	99 etikett(en)
Print preview	Y
Memory capacity	1500 tekens
