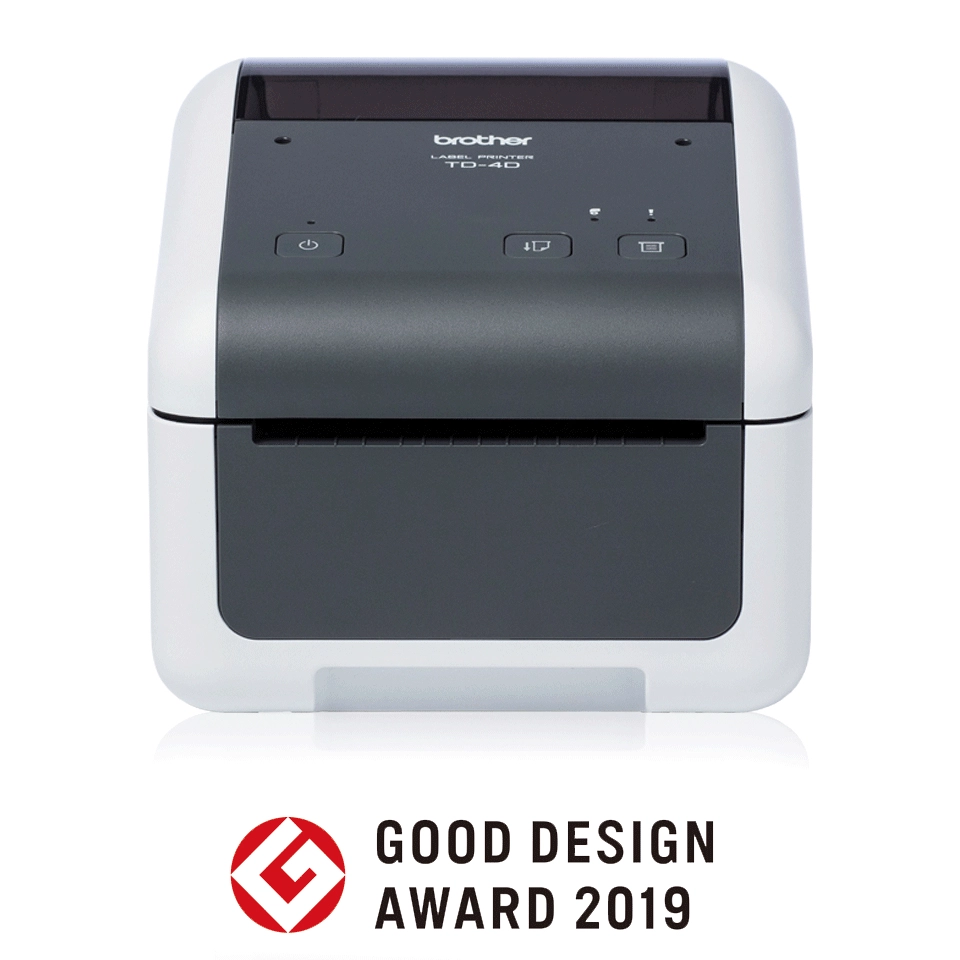

TD-4420DN high-quality network desktop label printer

Print high-quality, continuous labels using media up to 118mm/4.65 inch wide. With built-in network for easy sharing.

With built-in network connectivity, the TD-4420DN is designed to be shared.

Labels are printed at a high-resolution, producing sharp and clear images. Making the TD-4420DN ideal for printing 1D barcodes for scanning.

Direct thermal print technology produces accurate images, with crisp definition. Utilising heat-sensitive coating, ink is not required. A good choice for printing high-volume, temporary labels with barcodes with a maximum media width up to 118mm/4.65 inches wide.

Network connectivity

Increase your teams productivity with this network desktop label printer. Sharing is made easier with the integrated network port.

Seamless integration

Understanding that integration into legacy systems is important, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation and many more.

Print from your Windows PC

Custom labels are easily created using Brother's P-touch Editor. Add your company logo, symbols to hundreds of built-in images to the labels you create. Not to mention, linking your excel data to print large batches of labels.

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs

Healthcare, medical and laboratory

With the strict regulations on the tracking of patient specimens and other items within the healthcare industry, clear, high quality labelling is essential to maintain safety and traceability.

Warehousing and logistics

Efficient warehousing operation and worker productivity are critical to the success of many companies. With the most common sizes of shipping labels available and the ability to create custom size labels, there are many uses for these models in the warehouse.

Retail

Easy to read labels are essential for consumers to help make informed decisions prior to a potential purchase. The high print resolution and high quality labels used in this range ensure that every output printed looks professional, offering sharp text, logos and barcodes with a high contrast to ensure faultless scanning at the checkout.

Specification

Product
Product id	663322
Brand	Brother
Partnr	TD-4420DN
EAN/UPC code	4977766798259
Printing
Print technology	Direct thermal
Colour	N
Maximum resolution	203 x 203 pixels
Print speed	203 mm/sec
Print speed	8 lpm
Maximum print height	104 mm
Mirror printing	Y
Text style	Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Maximum print length	3 m
Paper handling
Maximum label width	118 mm
Maximum roll diameter	127 mm
Core diameter	12.7 mm
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Page description languages	ESC P, Raster_P, ZPL II
Internal memory	256 MB
Flash memory	64 MB
Number of fonts	6
Font styles	Brougham, Brussels, Helsinki, Letter Gothic, San Diego
Design
Product colour	Grey, White
Display	N
Power
Auto power off	Y
System requirements
Linux operating systems supported	Y
Mobile operating systems supported	Android 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 12, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Operational conditions
Operating relative humidity (H-H)	5 - 40 procent
Storage relative humidity (H-H)	20 - 85 procent
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	108 mm
Depth	155 mm
Height	224 mm
Weight	2080 g
Packaging data
Quantity per pack	1 stuk(s)
Packaging content
Cables included	AC, USB
Software development kit (SDK)	Y
AC adapter included	Y
Warranty card	Y
Quick start guide	Y
Starter roll included	Y
Other features
LED indicators	Error, Power, Status
Languages support	CHI (SIMPL), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, HUN, ITA, JPN, NOR, POL, POR, RUS, SWE, TUR
Date & time printing	Y
Number of languages	18
