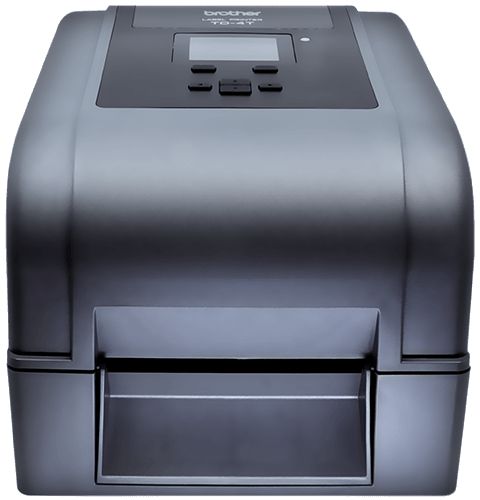

The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.

Specification

Product
Product id	677931
Brand	Brother
Partnr	TD4750TNWBZ1
EAN/UPC code	4977766800402
Printing
Print technology	Direct thermal / thermal transfer
Colour	N
Maximum resolution	300 x 300 pixels
Print speed	152 mm/sec
Maximum printing width	105 mm
Maximum print length	11.43 m
Paper handling
Maximum label width	112 mm
Maximum roll diameter	127 mm
Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN	Y
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Y
Bluetooth version	4.2
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Internal memory	128 MB
Flash memory	128 MB
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Design
Product colour	Black
Display	LCD
Display diagonal	2.3 inch
Built-in display	Y
Colour display	Y
Technical details
Harmonized System (HS) code	84433210
Pallet type	800 x 1200 mm
Sustainability certificates	ENERGY STAR
System requirements
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Operational conditions
Operating relative humidity (H-H)	5 - 40 procent
Storage relative humidity (H-H)	25 - 85 procent
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	10 - 90 °C
Weight & dimensions
Width	300 mm
Depth	440 mm
Height	275 mm
Weight	3798 g
Packaging data
Package weight	4770 g
Packaging content
Cables included	AC, USB
Bundled software	Bartender Ultra Lite Edition
Software development kit (SDK)	Y
AC adapter included	Y
Quick start guide	Y
Logistics data
Pallet height	152.5 mm
Pallet weight	163200 g
Number of cartons per pallet	30
Number of cartons per pallet layer	6
Number of layers per pallet	5
Quantity per pallet	30 stuk(s)
Other features
Spare part retention	5 jaar
Country of origin	Taiwan
Languages support	DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, SLV
