The USB-C® Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection – allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go.

This docking station supports crisp, high definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled “DP Alt Mode”, be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

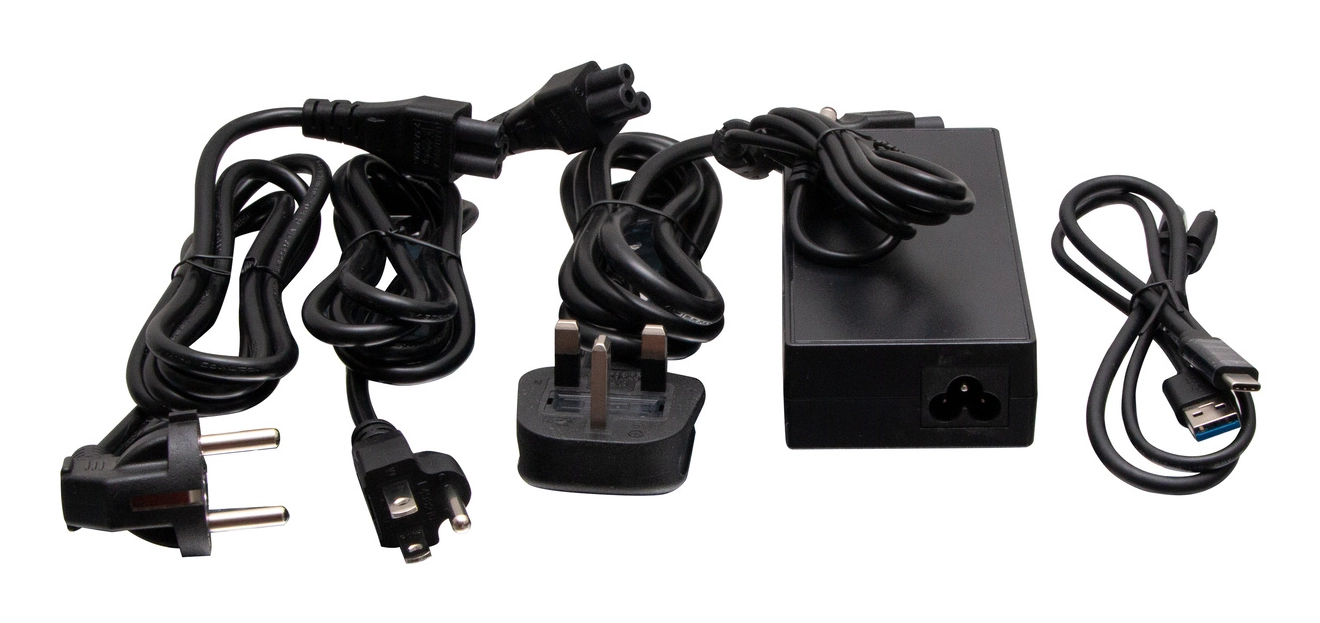

The included 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds.

The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS.

Specification

Product
Product id	942124
Brand	C2G Cables To Go
Partnr	C2G54538
EAN/UPC code
Warranty (months)	5-Year
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	100 W
HDMI ports quantity	3
DisplayPorts quantity	2
Microphone in	N
DC-in jack	Y
HDCP	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	N
Data transfer rate	10 Gbit/s
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	3
Maximum refresh rate	60 Hz
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Country of origin	China
Power
Power source type	DC
AC input voltage	100 - 240 V
Power supply	130 W
Output current	4 A
Output voltage	24 V
Compatible power plug types	EU, UK, US
Weight & dimensions
Width	191 mm
Depth	85 mm
Height	31.8 mm
Packaging data
Quantity per pack	1 stuk(s)
Packaging content
Manual	Y
AC adapter included	Y
Cables included	USB Type-A to USB Type-C, USB Type-C to USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 85 procent
Technical details
Warranty period	5 jaar
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
