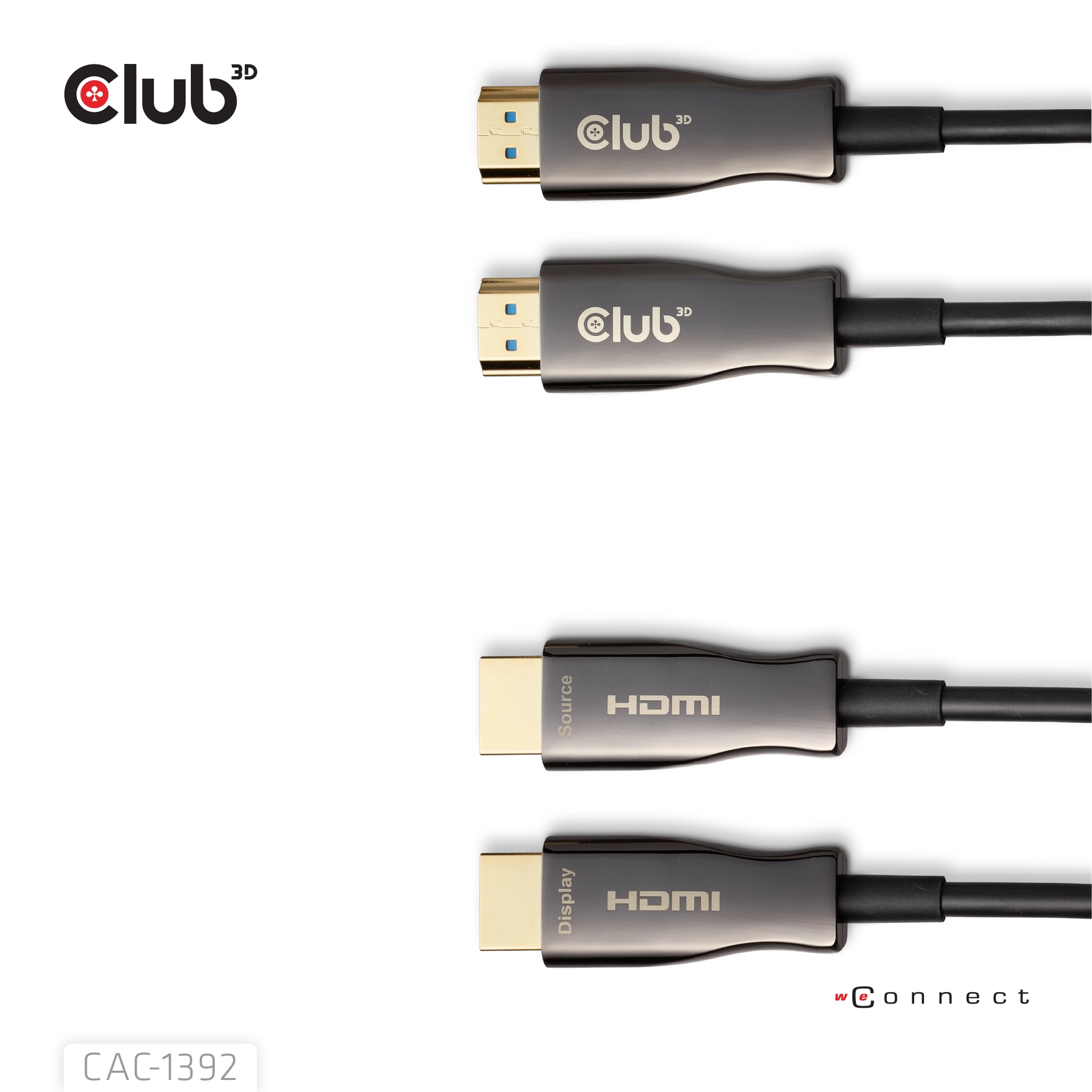

• DESIGNED FOR LONG RANGE: Hybrid Active Optical HDMI™ 2.1 Cable delivers 8K60Hz beyond the length of standard copper cables, The fiber optic inner cores greatly reduce EMI for optimal signal quality and minimal degradation. Note: Cable is unidirectional. • PLENUM RATED: Ultra High Speed HDMI™ Hybrid AOC is Plenum-rated (CPR) for safe installation in plenum spaces, Suitable for ceiling, conduit, and in-wall cable runs, For use in commercial environments where compliance with fire codes(EN50575:2014+ A1:2016 / EN 13501-6:2014) must be considered. • VERSATILE PERFORMANCE: Full-featured HDMI™ 48Gbps enables Dynamic HDR processing for vibrant picture quality, 7.1 and 32-C®h audio w/eARC, Ideal for video walls, conference rooms, and dedicated video/media devices, Compatible with lower HDMI™ 2.0/1.4/1.2 specs. • QUALITY CONSTRUCTION: Shielded gold-plated connectors rated beyond 10, 000 insertion cycles, Optical fiber core reinforced strands for tensile strength, Tested beyond 6, 000 bending cycles at 120°, Labeled connector ends for Source and Display. • SPECS: Black, 30m / 98.42ft, Unidirectional, CPR Certified, Ultra High Speed HDMI™ supports FRL/HDR/DSC 1.2a/HDCP, EDID, CEC, DDC, Audio, 48Gbps, 8K60Hz/4K120Hz, 32 AWG, O. D.4.8mm/0.19in, Ideal for long cable runs.

Specification

Product
Product id	986618
Brand	Club 3D
Partnr	CAC-1392
EAN/UPC code	8719214473457
Features
Cable length	30 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male connector
Connector 2 gender	Male connector
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI cable type	Ultra High Speed HDMI cable
HDMI version	2.1
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Supported video modes	2160p, 4320p
HDCP	Y
Data transfer rate	48 Gbit/s
High Dynamic Range (HDR) supported	Y
Maximum refresh rate	240 Hz
AWG wire size	32
Connector contacts plating	Gold
Magnetically shielded	Y
Unidirectional	Y
Cable type	Round cable
Quantity per pack	1 stuk(s)
Enhanced Audio Return Channel (eARC)	Y
Weight & dimensions
Cable diameter	4.8 mm
Weight	720 g
Package width	210 mm
Package depth	210 mm
Package height	75 mm
Package weight	838 g
Package type	Box
Packaging composition
Plastic packaging weight	6 g
Paper/cardboard packaging weight	112 g
Total plastic packaging weight	30 g
Total paper/cardboard packaging weight	560 g
Logistics data
Harmonized System (HS) code	8544 4290
