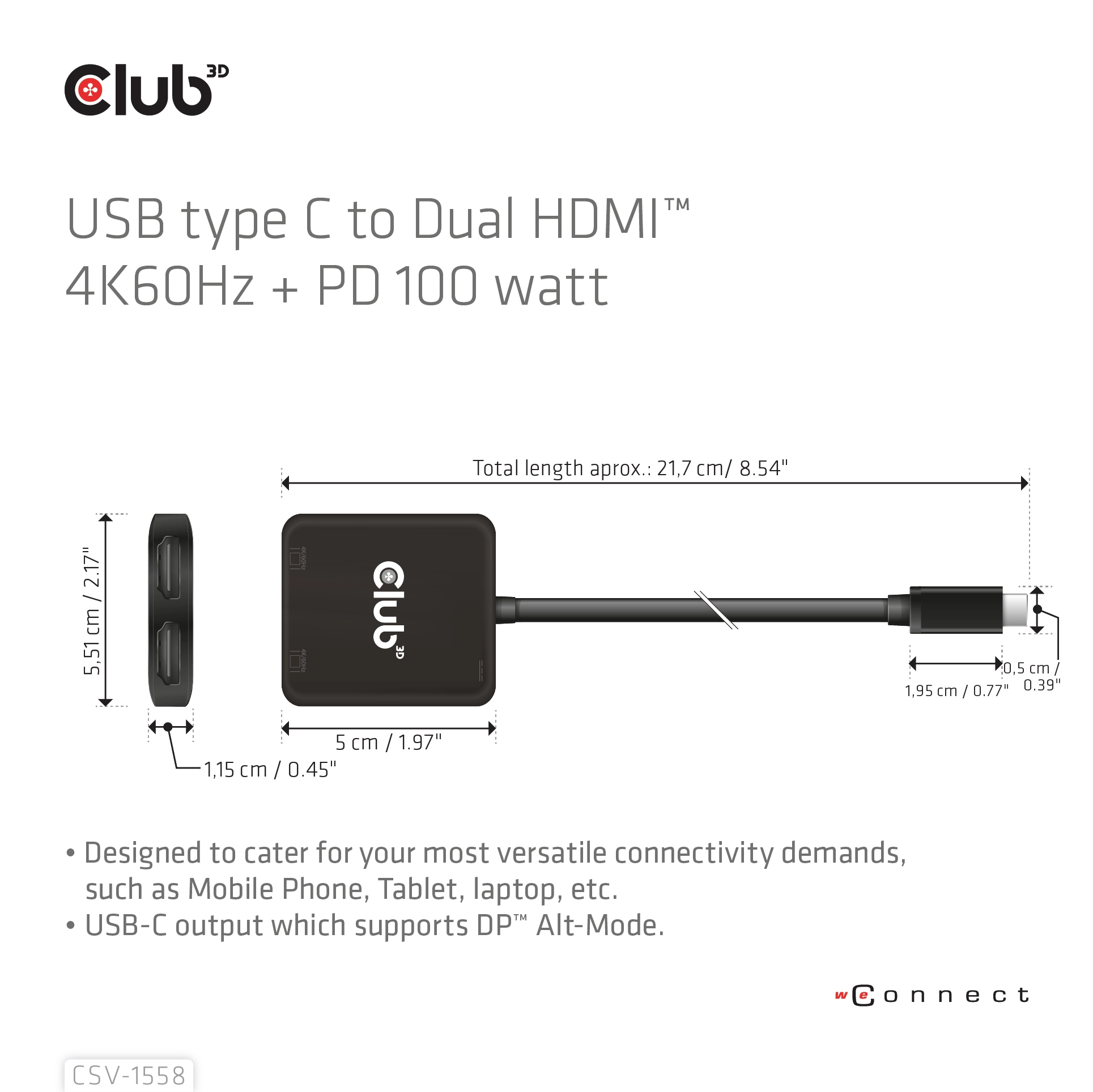

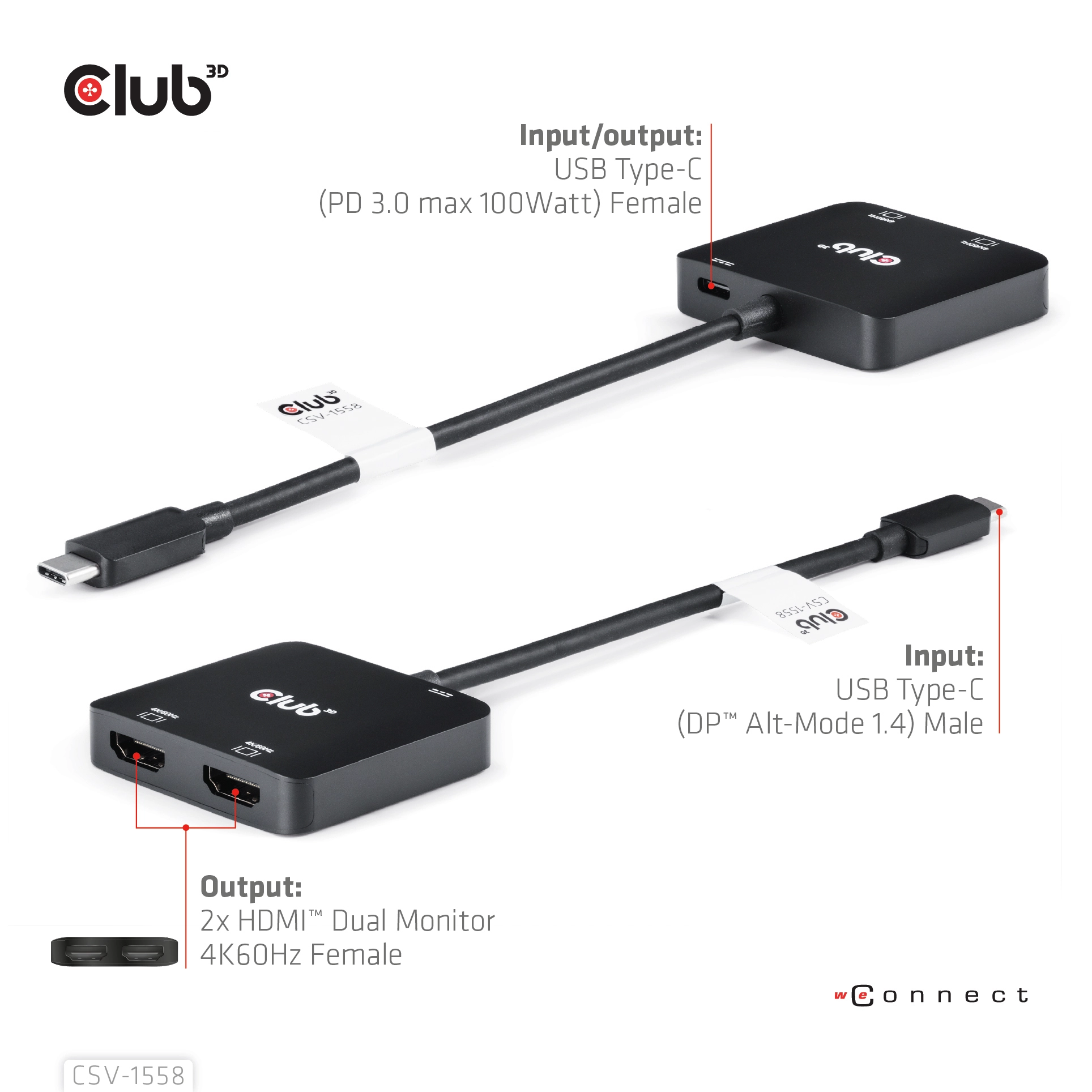

The Club 3D CSV-1558 USB-C® to Dual HDMI™ 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB-C® port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB-C® or Thunderbolt™ devices (including Phones with an USB-C® connetion and DP™ Alt modesupport).

Specification

Product
Product id	951975
Brand	Club 3D
Partnr	CSV-1558
EAN/UPC code	8719214472979
Features
Product colour	Black
Maximum resolution	3840 x 2160 Pixels
HD type	4K Ultra HD
HDCP version	2.2
Cable length	0.15 m
High Dynamic Range (HDR) supported	Y
HDCP	Y
Data transfer rate	32.4 Gbit/s
Plug and Play	Y
Packaging data
Package width	60 mm
Package depth	240 mm
Package height	35 mm
Package weight	74 g
Package type	Box
Plastic packaging weight	1 g
Paper/cardboard packaging weight	28 g
Total plastic packaging weight	10 g
Total paper/cardboard packaging weight	280 g
Ports & interfaces
Video ports quantity	2
Video port type	USB Type-C
Video out	2x HDMI
HDMI version	1.4
Power
USB powered	Y
Weight & dimensions
Width	50 mm
Depth	55 mm
Height	9 mm
Weight	45 g
Logistics data
Harmonized System (HS) code	8473 3020
