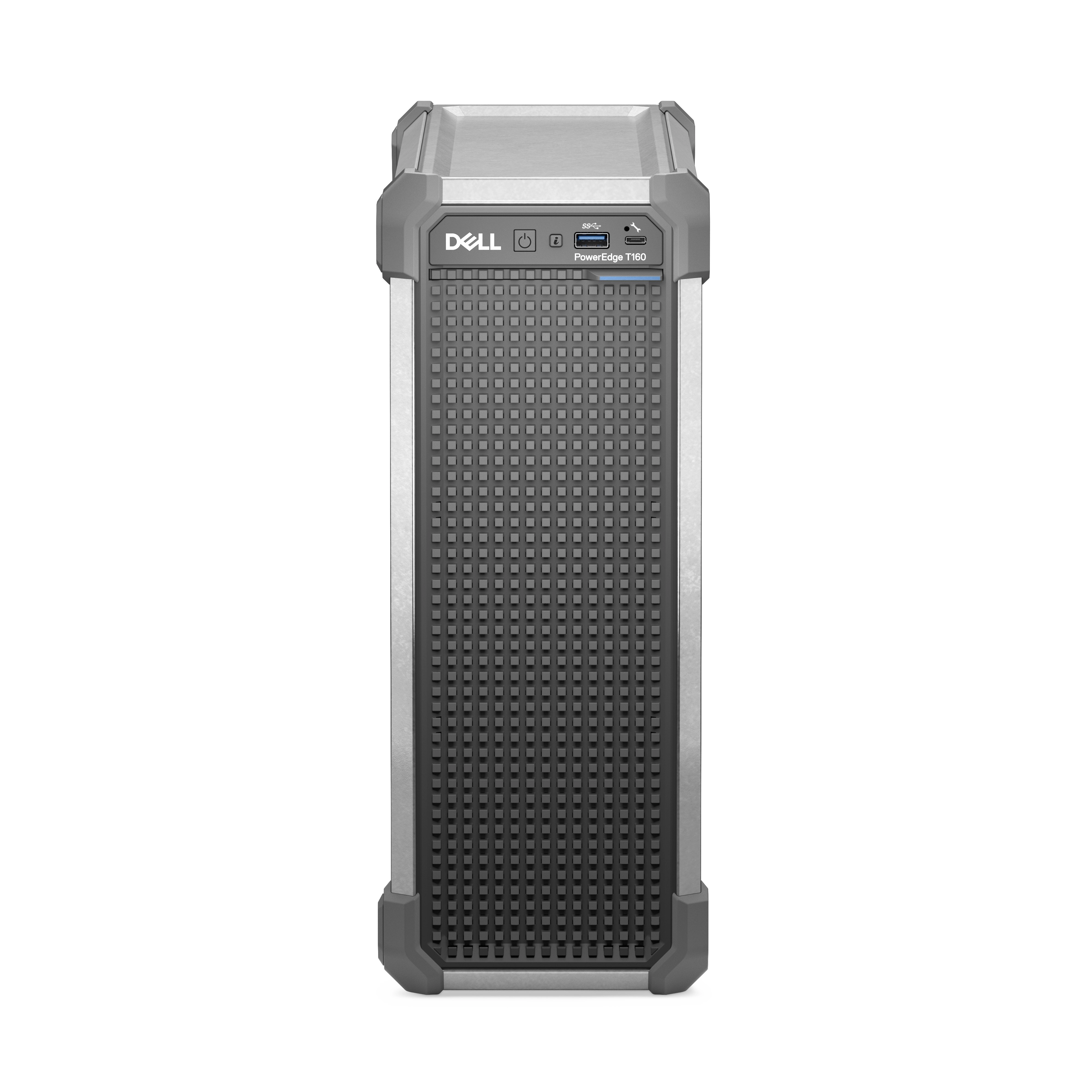

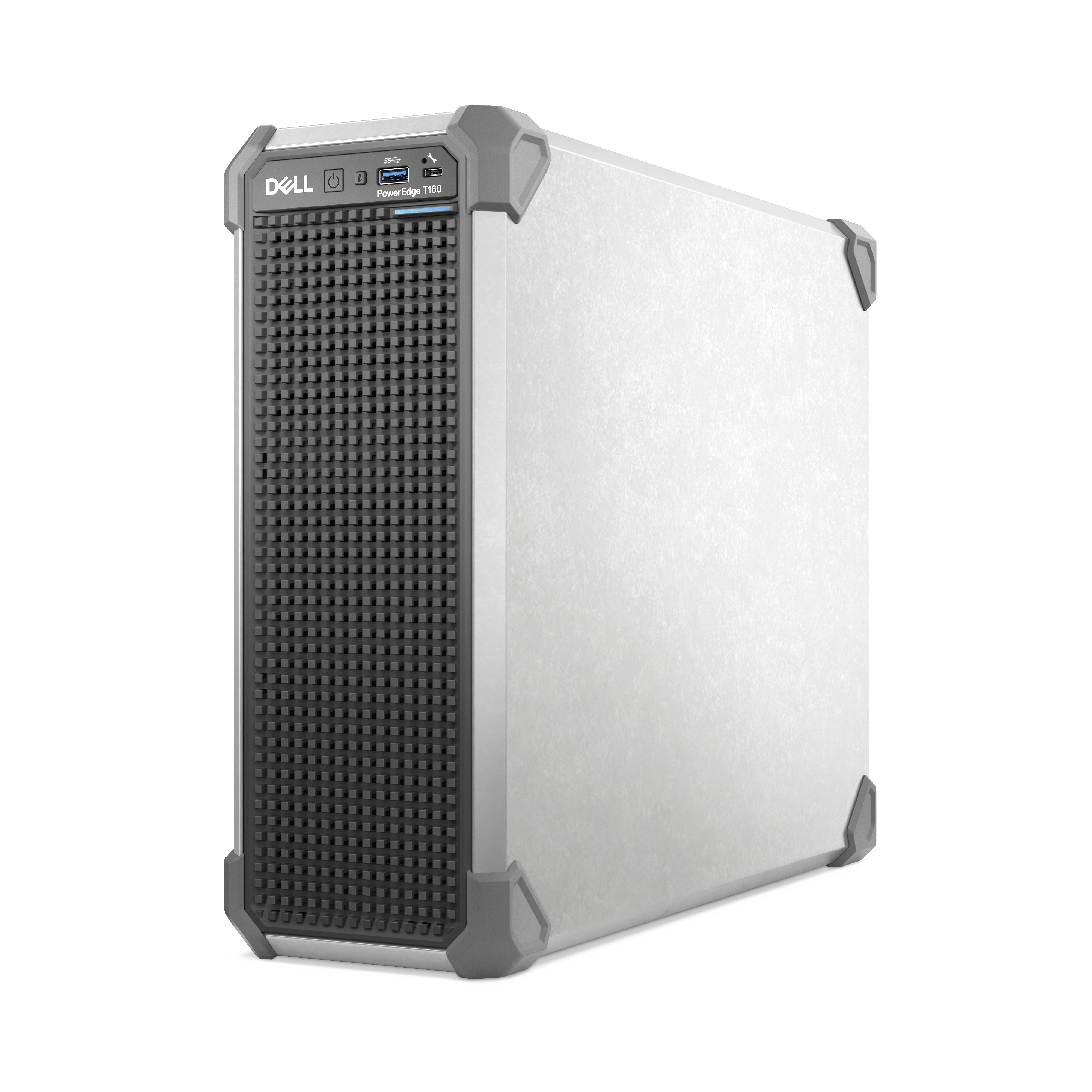

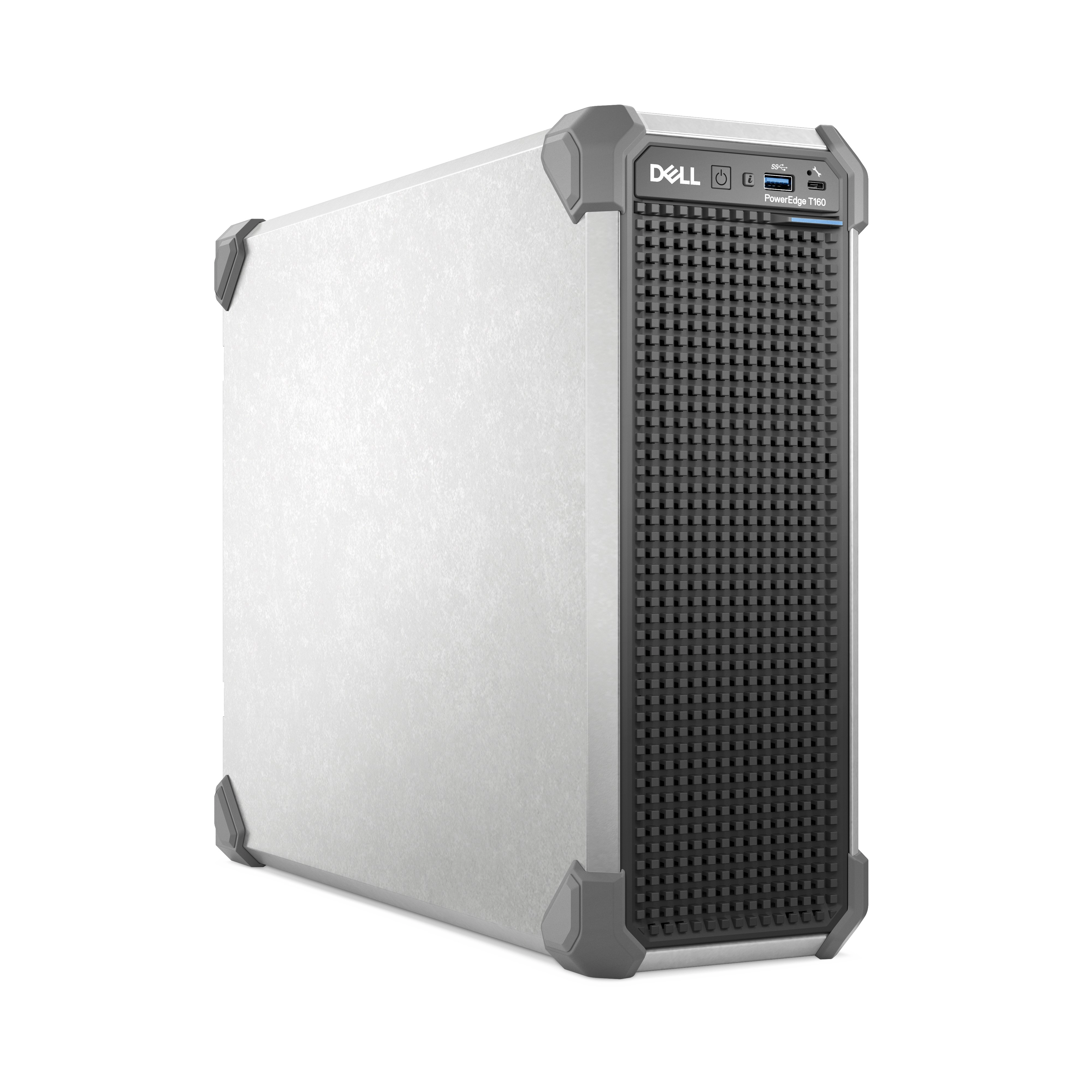

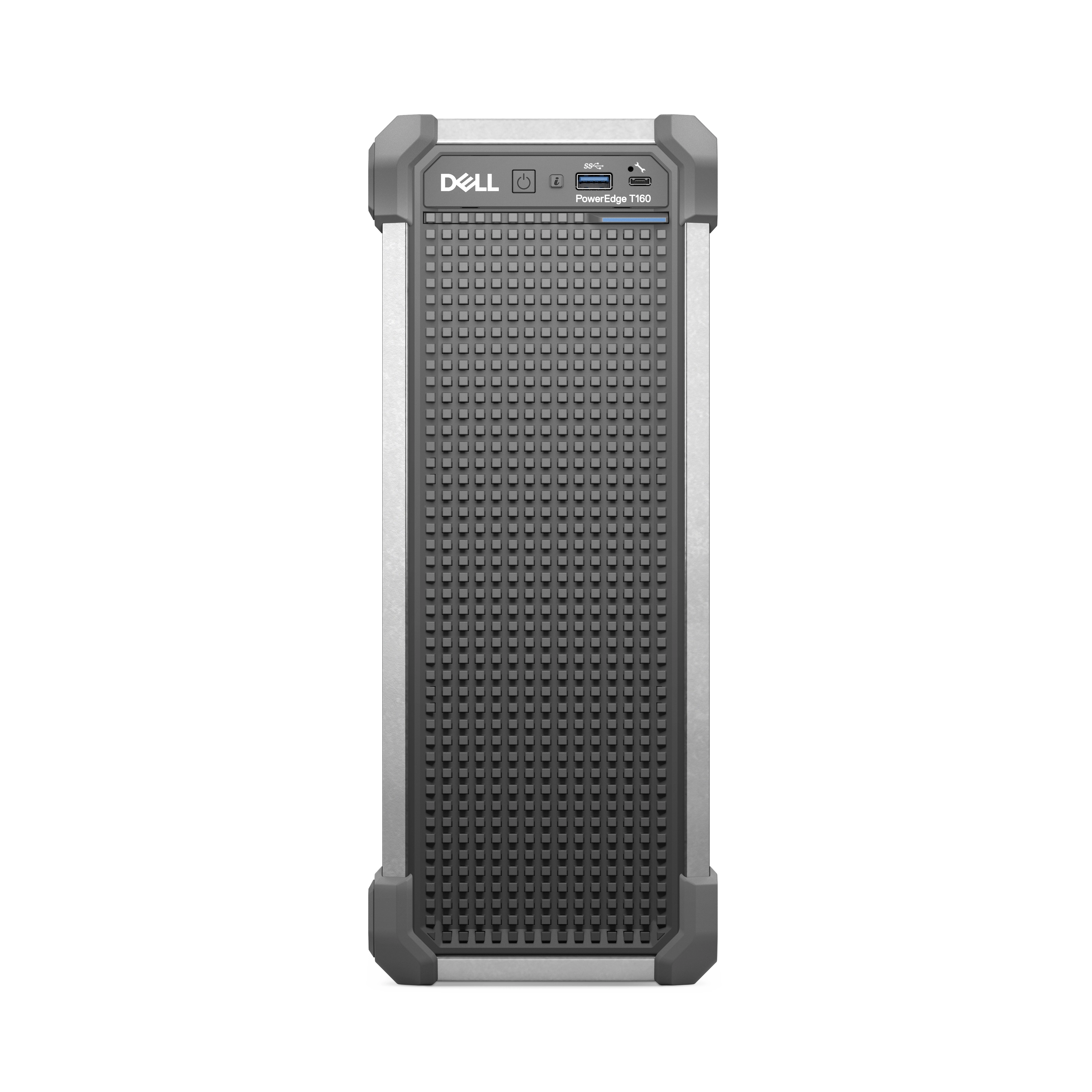

The single-socket Dell PowerEdge T160 is a small chassis tower server for customers desiring flexibility, affordability and processing power.

Specification

Product
Product id	1003010
Brand	Dell
Partnr	6TT6G
EAN/UPC code	5397184970126
Warranty (months)	3 Years Basic Onsite
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6315P
Processor frequency	2.8 GHz
Processor boost frequency	5.2 GHz
Processor cores	4
Processor cache	12 MB
Number of processors installed	1
Performance cores	4
Thermal Design Power (TDP)	55 W
System bus rate	16 GT/s
Processor threads	4
Memory clock speeds supported by processor	4800 MHz
Memory types supported by processor	DDR5-SDRAM
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 16 GB
Memory data transfer rate	5600 MT/s
Maximum internal memory	128 GB
Storage
Total storage capacity	2000 GB
Number of HDDs installed	1
HDD capacity	2000 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5
Number of HDDs supported	5
Supported HDD sizes	2.5, 3.5 "
RAID support	N
Optical drive type	N
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Tower (3U)
Product colour	Black
Performance
Remote administration	iDRAC9, Enterprise 16G
Software
Operating system installed	N
Compatible operating systems	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Redundant power supply (RPS) support	N
Power supply	300 W
Number of main power supplies	1
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Carbon footprint
Total carbon footprint	1182 kilogram CO2e
Total carbon emissions (Standard deviation)	924 kilogram CO2e
Carbon emissions (Manufacturing)	319.14 kilogram CO2e
Carbon emissions (Logistics)	130.02 kilogram CO2e
Carbon emissions (Use)	709.2 kilogram CO2e
Carbon emissions (End-of-Life)	23.64 kilogram CO2e
Weight & dimensions
Width	132.52 mm
Height	332.5 mm
Packaging content
Packaging content	European Power Cord 220V
Other features
Bytes per sector	512n
Data transfer rate	6 Gbit/s
