Processing performance, GPU support

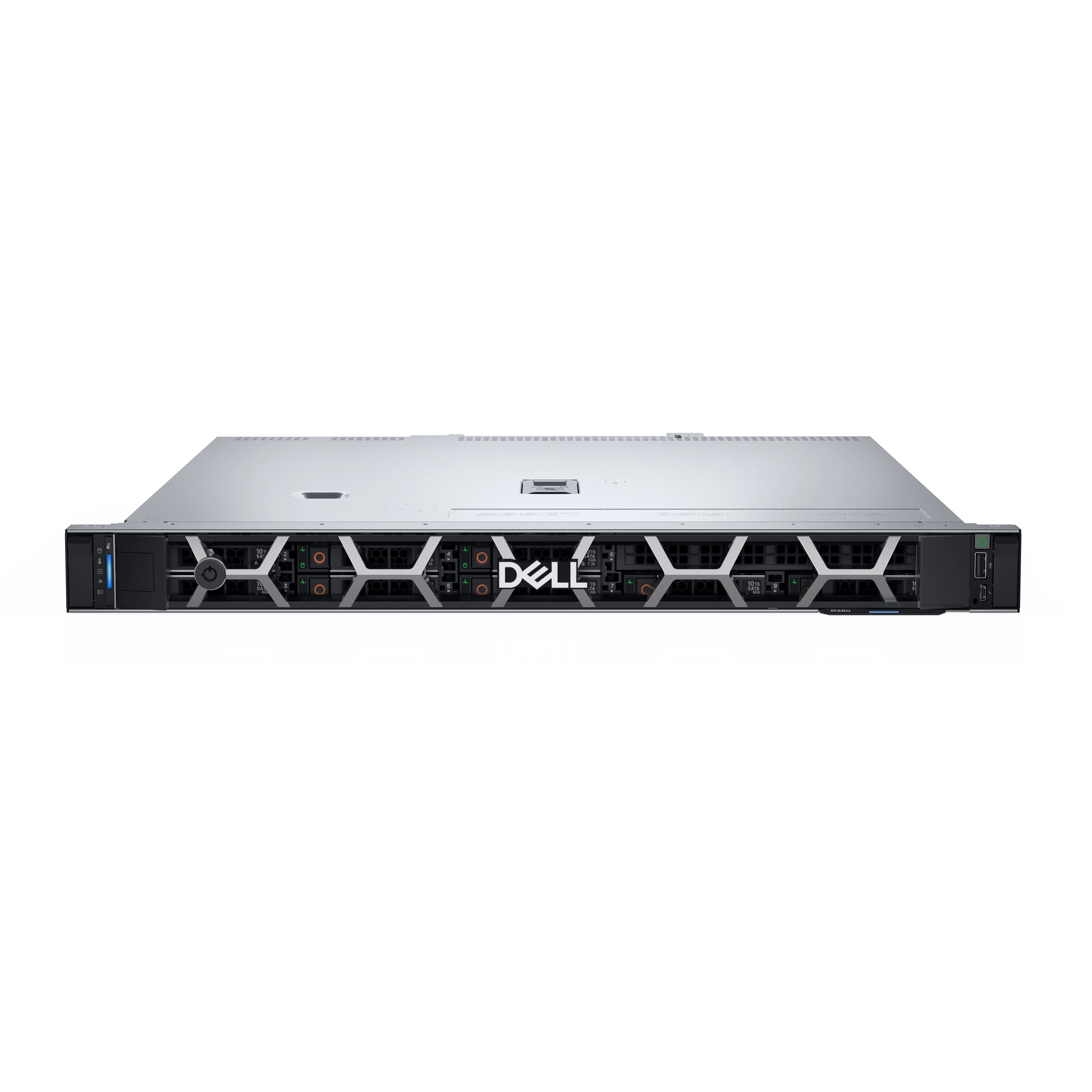

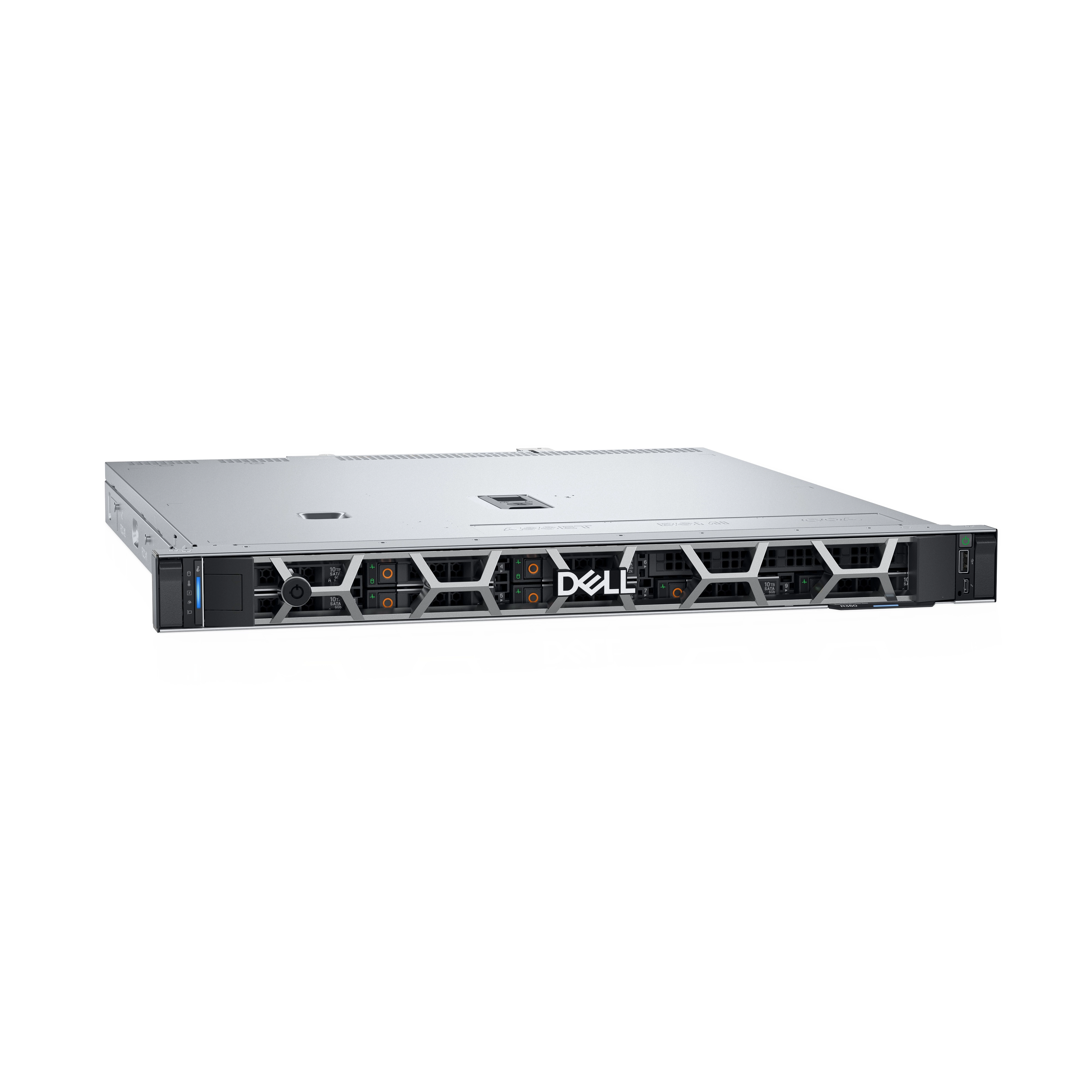

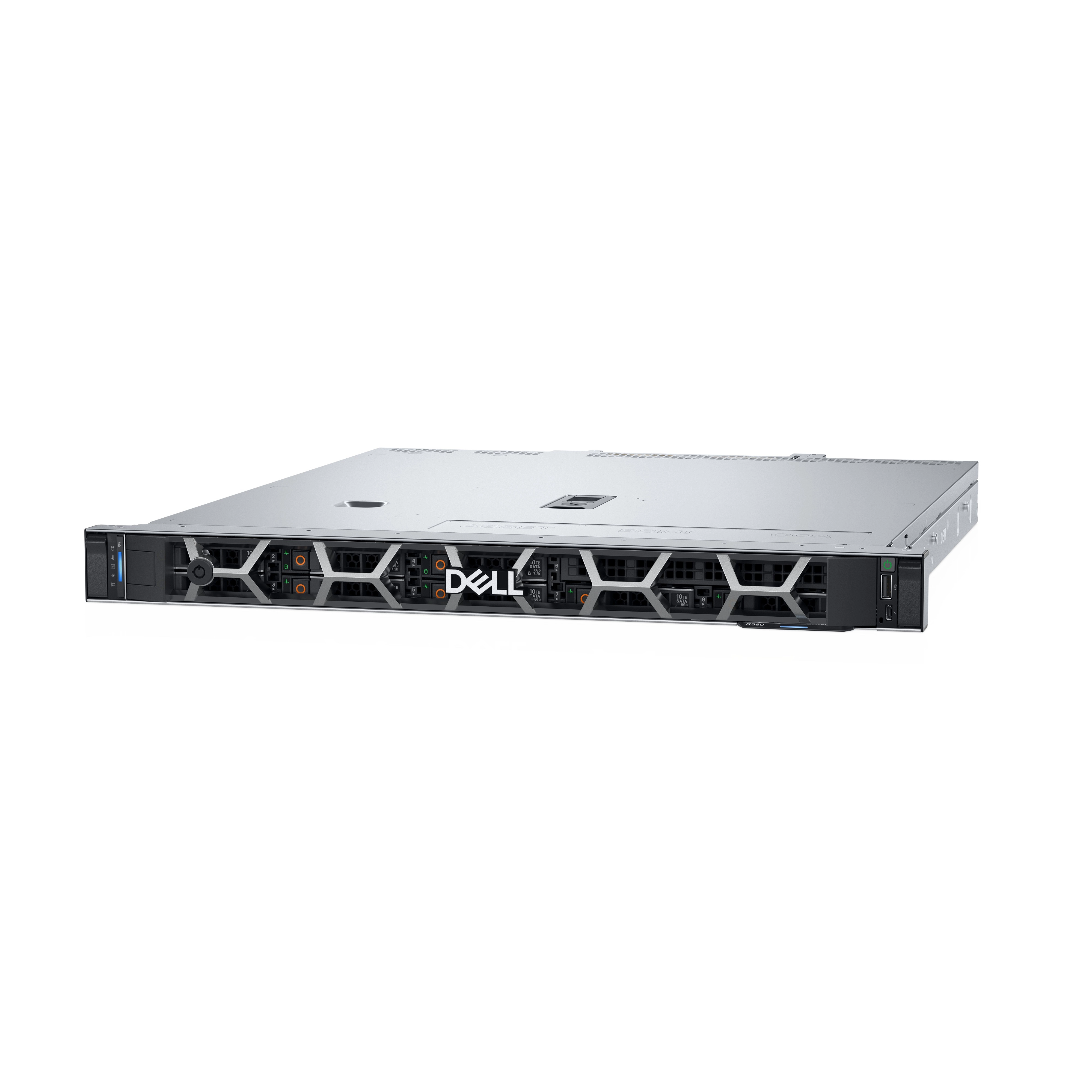

The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.

Specification

Product
Product id	1003037
Brand	Dell
Partnr	TRM6W
EAN/UPC code	5397184960486
Warranty (months)	3 Years ProSpt
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6357P
Processor frequency	3 GHz
Processor boost frequency	5.4 GHz
Processor cache	24 MB
Number of processors installed	1
Performance cores	8
Thermal Design Power (TDP)	80 W
System bus rate	16 GT/s
Processor threads	16
Memory clock speeds supported by processor	4800 MHz
Memory types supported by processor	DDR5-SDRAM
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	5600 MT/s
Maximum internal memory	128 GB
Storage
Total storage capacity	960 GB
Number of SSDs installed	2
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5" "
Number of SSDs supported	8
Supported SSD sizes	2.5"
RAID support	N
Supported RAID controllers	Front PERC H755 Front Load
Hot-Plug support	Y
Optical drive type	N
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Power cables quantity	2
Expansion slots
PCI Express x8 slots	1
PCI Express x16 slots	1
Design
Chassis type	Rack (1U)
Product colour	Black
Bezel	Y
Performance
Remote administration	iDRAC9, Enterprise 16G
Software
Operating system installed	N
Compatible operating systems	Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Power
Redundant power supply (RPS) support	Y
Power supply	700 W
Number of redundant power supplies installed	2
Power supply input voltage	200 - 240
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	12 A
Certificates
80 PLUS certification	80 PLUS Titanium
Carbon footprint
Total carbon footprint	1140 kilogram CO2e
Total carbon emissions (Standard deviation)	943 kilogram CO2e
Carbon emissions (Manufacturing)	307.8 kilogram CO2e
Carbon emissions (Logistics)	102.6 kilogram CO2e
Carbon emissions (Use)	718.2 kilogram CO2e
Carbon emissions (End-of-Life)	11.4 kilogram CO2e
PAIA version	1.4.0, 2024
Weight & dimensions
Width	482 mm
Height	42.8 mm
Packaging content
Packaging content	ReadyRails™ Sliding Rails Without Cable Management Arm
Other features
Target workload	Read Intensive (RI)
Bytes per sector	512
Data transfer rate	6 Gbit/s
