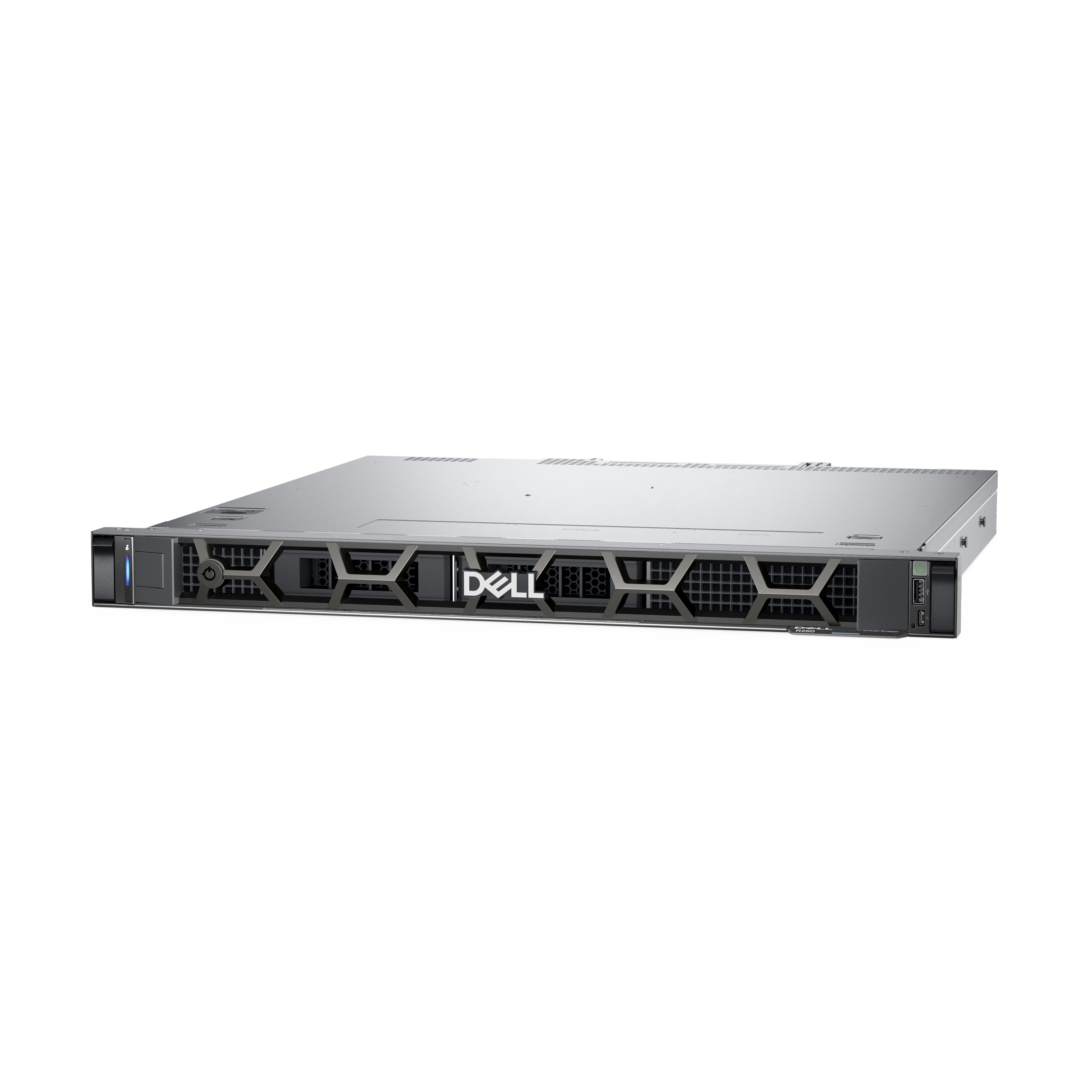

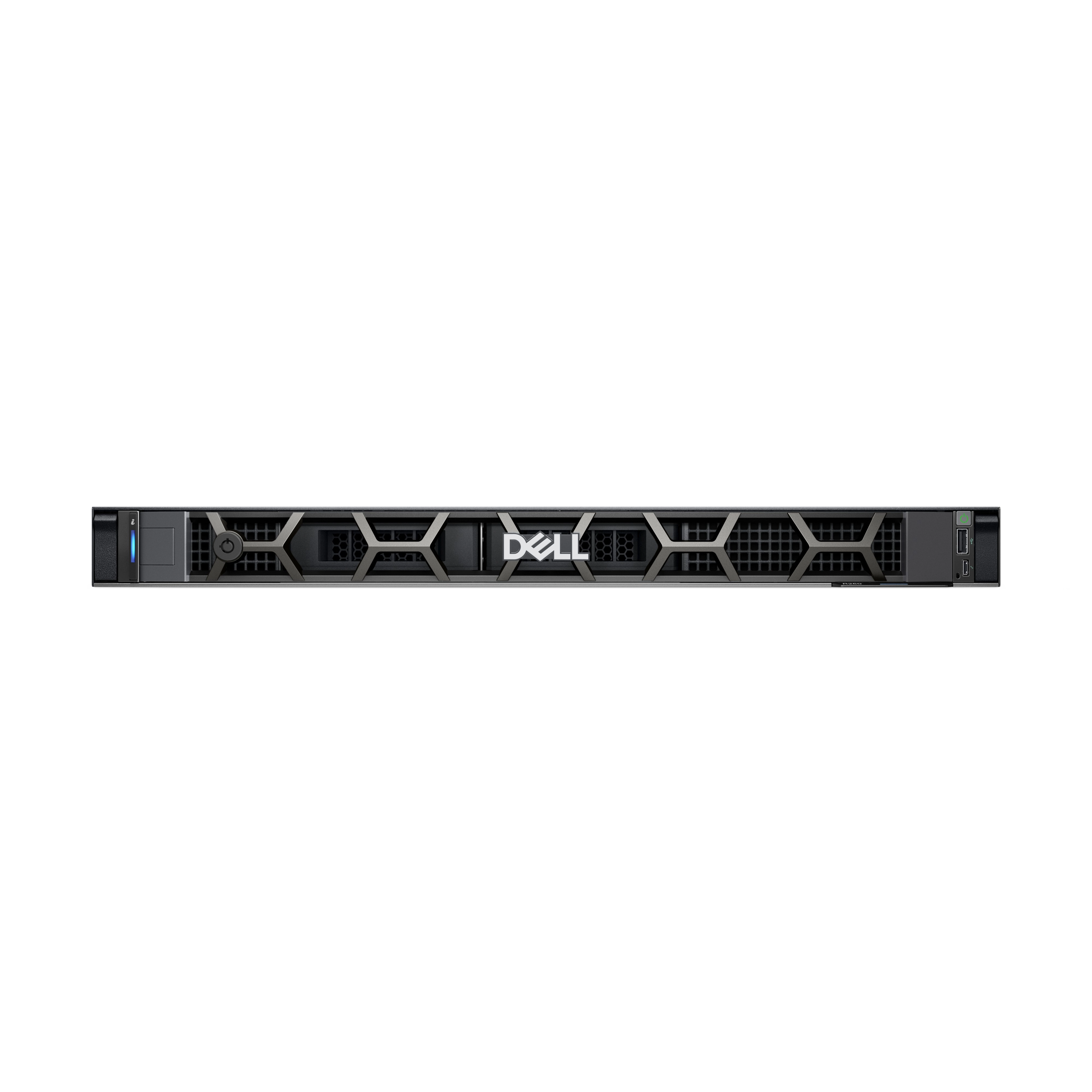

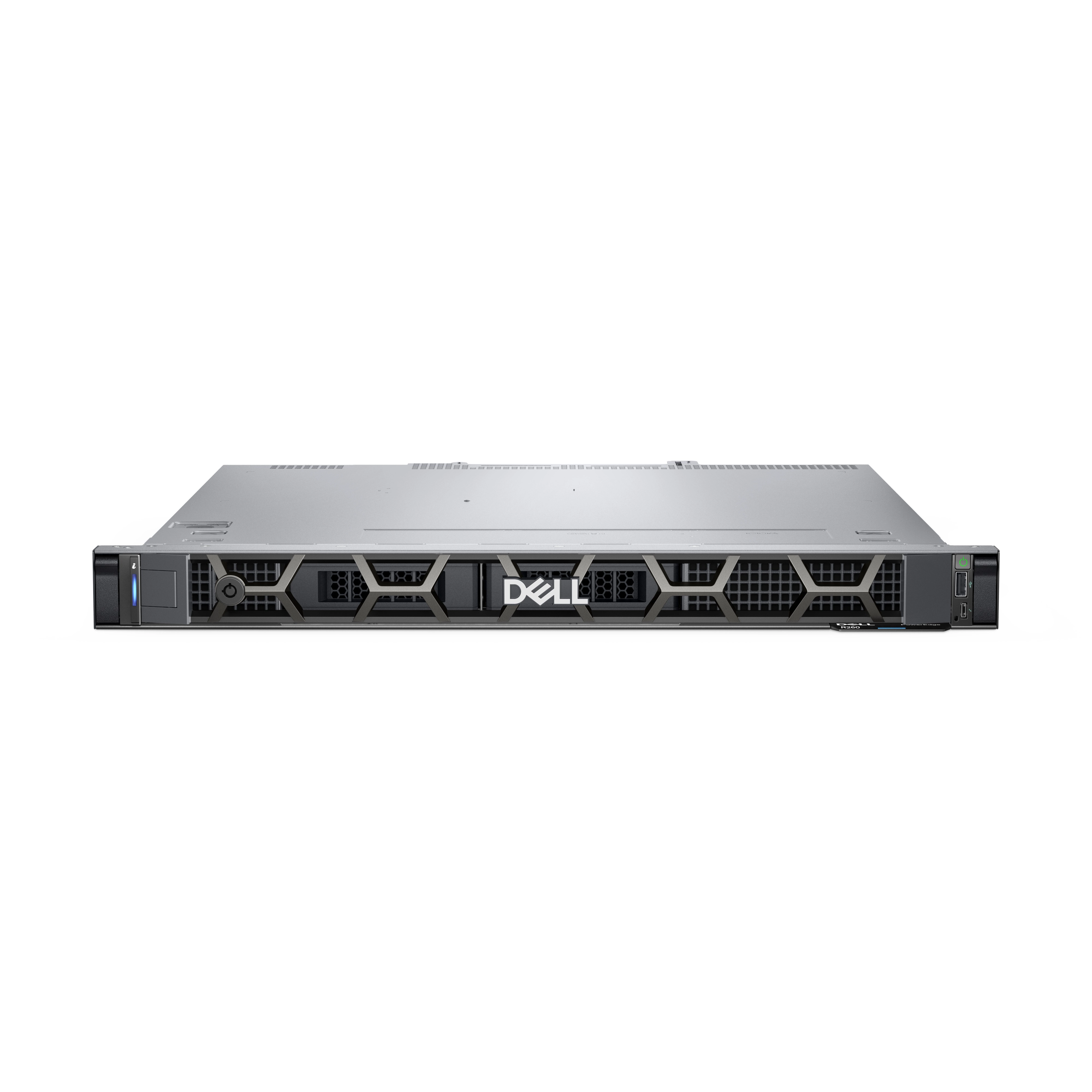

The 1U, single-socket Dell PowerEdge R260 is a short-depth form factor for customers desiring flexibility, affordability and processing power.

Specification

Product
Product id	1003039
Brand	Dell
Partnr	WPW6P
EAN/UPC code	5397184960448
Warranty (months)	3 Years Basic Onsite
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6333P
Processor frequency	3.1 GHz
Processor boost frequency	5.2 GHz
Processor cache	18 MB
Number of processors installed	1
Performance cores	6
Thermal Design Power (TDP)	65 W
System bus rate	16 GT/s
Processor threads	12
Memory clock speeds supported by processor	4800 MHz
Memory types supported by processor	DDR5-SDRAM
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 16 GB
Memory data transfer rate	5600 MT/s
Maximum internal memory	128 GB
Storage
Total storage capacity	480 GB
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5" "
Number of SSDs supported	6
Supported SSD sizes	2.5"
RAID support	N
Supported RAID controllers	PERC H355 Adapter LP
Hot-Plug support	Y
Optical drive type	N
Drive writes per day (DWPD)	1
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Rack (1U)
Product colour	Black
Bezel	Y
Performance
Remote administration	iDRAC9, Enterprise 16G
Trusted Platform Module (TPM)	Y
Software
Operating system installed	N
Compatible operating systems	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Redundant power supply (RPS) support	N
Power supply	700 W
Number of main power supplies	1
Power supply input voltage	200 - 240
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Certificates
80 PLUS certification	80 PLUS Titanium
Carbon footprint
Total carbon footprint	950 kilogram CO2e
Total carbon emissions (Standard deviation)	711 kilogram CO2e
Carbon emissions (Manufacturing)	304 kilogram CO2e
Carbon emissions (Logistics)	95 kilogram CO2e
Carbon emissions (Use)	541.5 kilogram CO2e
Carbon emissions (End-of-Life)	9.5 kilogram CO2e
PAIA version	1.3.2, 2024
Weight & dimensions
Width	482 mm
Height	42.8 mm
Packaging content
Packaging content	1U/2U 2/4-Post Static Rails, Riser Config 1, Gen4 Riser
Other features
Target workload	Read Intensive (RI)
Bytes per sector	512e
Data transfer rate	6 Gbit/s
