Processing performance, GPU support

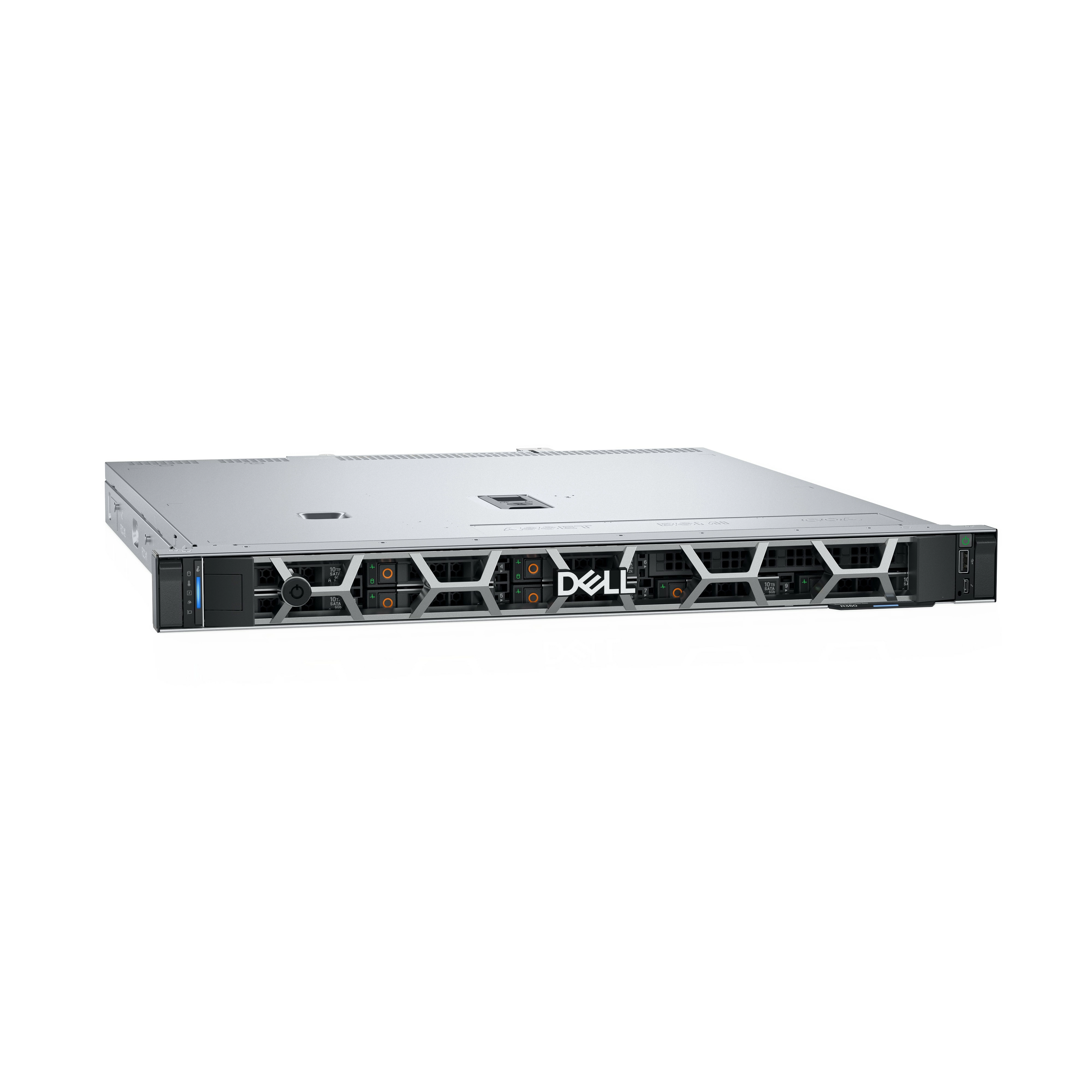

The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.

Specification

Product
Product id	967764
Brand	Dell
Partnr	XRH14
EAN/UPC code	5397184903438
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2434
Processor frequency	3.4 GHz
Processor boost frequency	5 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel C262
Number of processors installed	1
Performance cores	4
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
Memory layout (slots x size)	1 x 16 GB
Memory data transfer rate	4400 MT/s
Maximum internal memory	128 GB
Storage
Total storage capacity	480 GB
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5" "
RAID support	Y
Supported RAID controllers	PERC H755
Hot-Plug support	Y
Optical drive type	N
Internal drive bays	8
Drive writes per day (DWPD)	1
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Rack (1U)
Product colour	Black, Silver
Rack rails	Y
Bezel	Y
Performance
Remote administration	iDRAC9, Enterprise 16G
Software
Operating system installed	N
Compatible operating systems	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Redundant power supply (RPS) support	N
Power supply	700 W
Number of redundant power supplies supported	1
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Weight & dimensions
Width	482 mm
Height	42.8 mm
Technical details
Supported storage drives form factor (internal)	2.5"
Other features
Bytes per sector	512
Data transfer rate	6 Gbit/s
