CONNECT HOME AND SOHO TO A WIRELESS NETWORK
Connect this Access Point to a broadband modem and wirelessly share your Internet connection. The D-Link DAP-1360 access point is a draft 802.11n compliant device that delivers up to 14x faster speeds1 and 6x farther range1 than 802.11g while staying backward compatible with 802.11g and 802.11b devices. Enjoy surfing the web, checking e-mail, and chatting with family and friends online.

PROTECT YOUR WIRELESS NETWORK AND DATA EASILY
The DAP-1360 provides 64/128-bit WEP encryption and WPA/WPA2 security to protect your network and wireless data. This device also supports WiFi Protected Setup (WPS) to quickly and securely setup a wireless network. In addition, it also provides MAC address filtering a nd the disable SSID Broadcast function to limit outsiders’ access to your home and office network.

FLEXIBLY CONFIGURE YOUR AP FOR DIFFERENT APPLICATIONS
The DAP-1360 can be configured to operate as (1) an Access Point to act as a central hub for wireless users, (2) a Wireless Client to connect to another Access Point, (3) a Bridge to joint two wireless workgroups together, (4) a Bridge with AP to act as wireless hub and a bridge at the same time, (5) a Repeater to extend the wireless coverage to cover all “dead” spots, (6) a WISP Client Router to let wireless Internet service subscribers share Internet connection with home/office Ethernet-enabled computers without the need for an extra router, or (7) a WISP Repeater to let WISP subscribers share Internet connection with wireless computers without any extra router.

EASY TO INSTALL AND USE
With D-Link Setup Wizard, you can set up your wireless network in minutes. It configures your DAP-1360’s operation mode and makes it easy to add new wireless devices onto the network, and helps you create a simple wireless network for your home and office.

Specification

Product
Product id	293861
Brand	D-Link
Partnr	DAP-1360/E
EAN/UPC code	790069323058
Management features
Web-based management	Y
Packaging data
AC adapter included	Y
Package width	208 mm
Package depth	274 mm
Package height	68 mm
Package weight	600 g
Features
2.4 GHz	Y
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Cabling technology	10/100Base-T(X)
Channels quantity	13 kanalen
Modulation	CCK, DBPSK, DQPSK, OFDM
Quality of Service (QoS) support	Y
Security
Security algorithms	128-bit WEP, 64-bit WEP, SSID, TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPS
MAC address filtering	Y

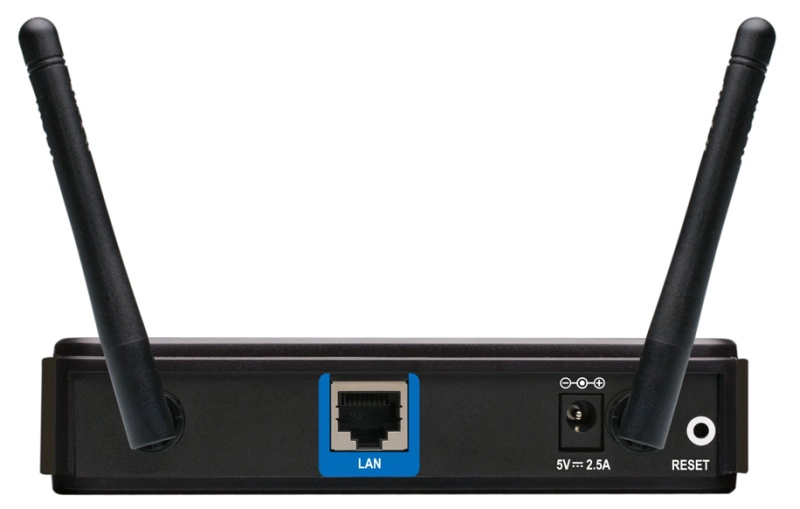

Ports & interfaces
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power requirements	5VDC, 2.5A
Design
LED indicators	LAN, Power, Status, WLAN
Certification	FCC B
Internal	N
Antenna
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Antenna connector type	RP-SMA
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 procent
Technical details
Shipping (inner) case length	571 mm
Pallet height (sea)	2055 mm
Quantity per pallet (sea)	480 stuk(s)
Number of cartons per pallet (sea)	48
Pallet gross weight (sea)	343600 g
Pallet height (air)	1335 mm
Pallet width	1100 mm
Pallet length	1200 mm
Quantity per pallet (air)	300 stuk(s)
Number of cartons per pallet (air)	30
Pallet gross weight (air)	223000 g
Quantity per shipping (inner) case	10 stuk(s)
Shipping (inner) case net weight	6000 g
Shipping (inner) case height	240 mm
Shipping (inner) case width	360 mm
Shipping (inner) case weight	6700 g
Weight & dimensions
Dimensions (WxDxH)	144 x 109 x 30 mm
Weight	229 g
Other features
Wireless technology	802.11b/g/n
Networking features	Fast Ethernet
Frequency range	2400 - 2483.5 MHz
