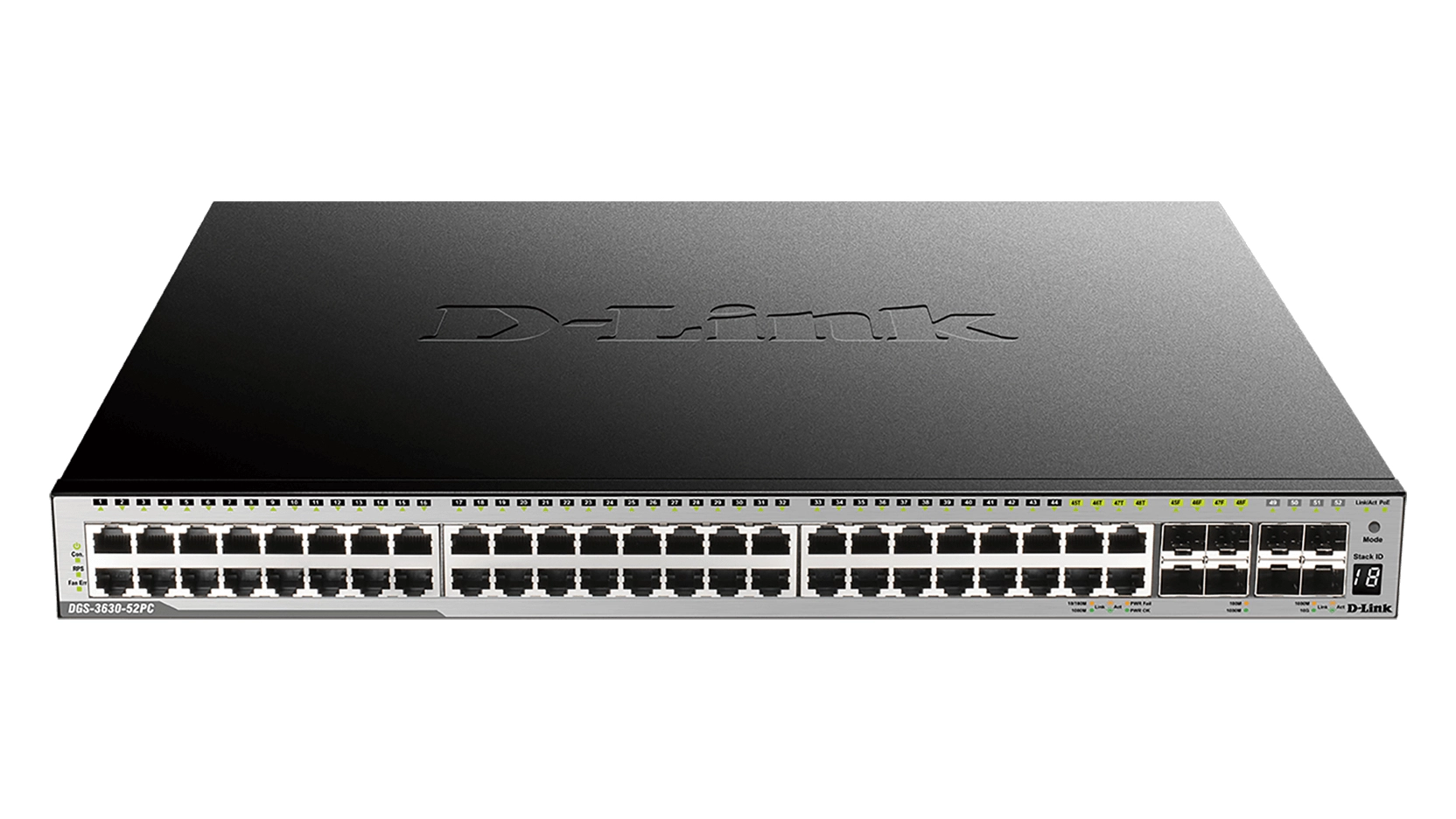

The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.

Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Specification

Product
Product id	882613
Brand	D-Link
Partnr	DGS-3630-52TC/SI/E
EAN/UPC code	790069472114
Data transmission
MAC address table	68000 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.95 Mpps
Number of queues	8
Static route	Y
Number of static routes	512
Number of IP interfaces	256
Jumbo frames support	Y
Jumbo frames	12000
Packet buffer memory	4 MB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Y
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Y
Full duplex	Y
Routing entries	16000
Ethernet Ring Protection Switching (ERPS)	Y
Flow control support	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
Traffic classification	Y
System event log	Y
Protocols
Management protocols	SNMP, NTPv3/v4, Telnet
Routing protocols	BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP
IP Source Guard (IPSG)	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	44
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	AC-in jack
Security
DHCP features	DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Authentication type	IEEE 802.1x
Security algorithms	802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC address filtering	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Authentication	Guest VLAN, Port-based authentication
Root protection	Y
Weight & dimensions
Width	441 mm
Depth	259.8 mm
Height	44 mm
Weight	4040 g
Packaging data
Package weight	5551 g
Package width	538 mm
Package depth	560 mm
Package height	170 mm
Power
Power source	AC
Power supply included	Y
Redundant power supply (RPS) support	Y
Number of power supply units	1
AC input voltage	100 - 240 V
Power consumption (max)	62 W
Surge protection	Y
Surge protection voltage	6 kV
Multicast features
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	Y
Endurance
Mean time between failures (MTBF)	263936.78 uur
Design
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	2 ventilator(en)
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Operational conditions
Heat dissipation	212 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	10 - 95 procent
Performance
Virtual stacking (units)	32
Dying Gasp	Y
Noise level	53.9 dB
Harmonized System (HS) code	85176990
Technical details
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
