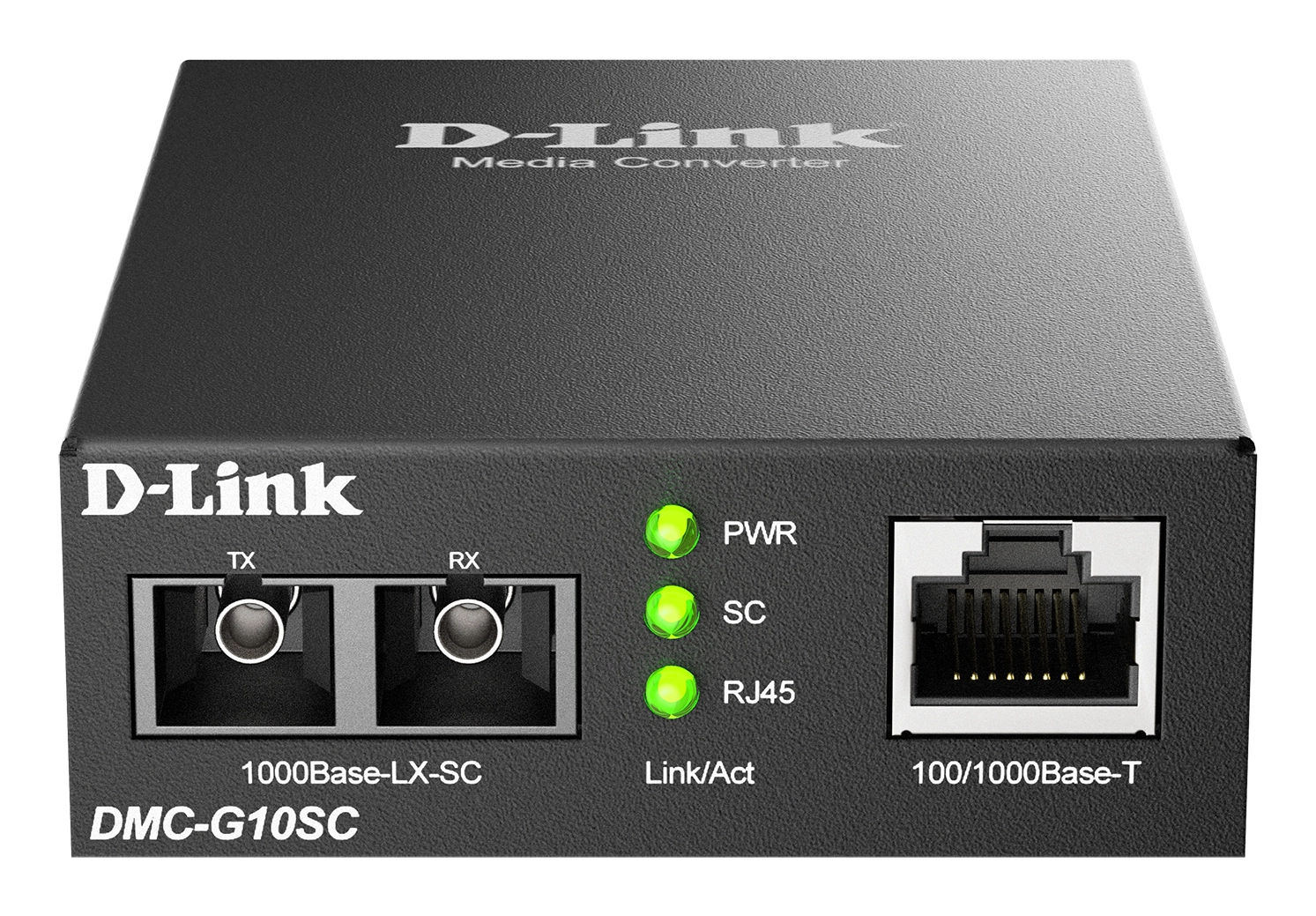

The DMC-G10SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a single-mode fibre 1000Base-LX Gigabit Ethernet connection to extend a connection distance (up to 10 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.

Specification

Product
Product id	905334
Brand	D-Link
Partnr	DMC-G10SC/E
EAN/UPC code	790069470110
Network
Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-T, 1000Base-T
Converter output interface	1000Base-LX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-X	Y
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SC

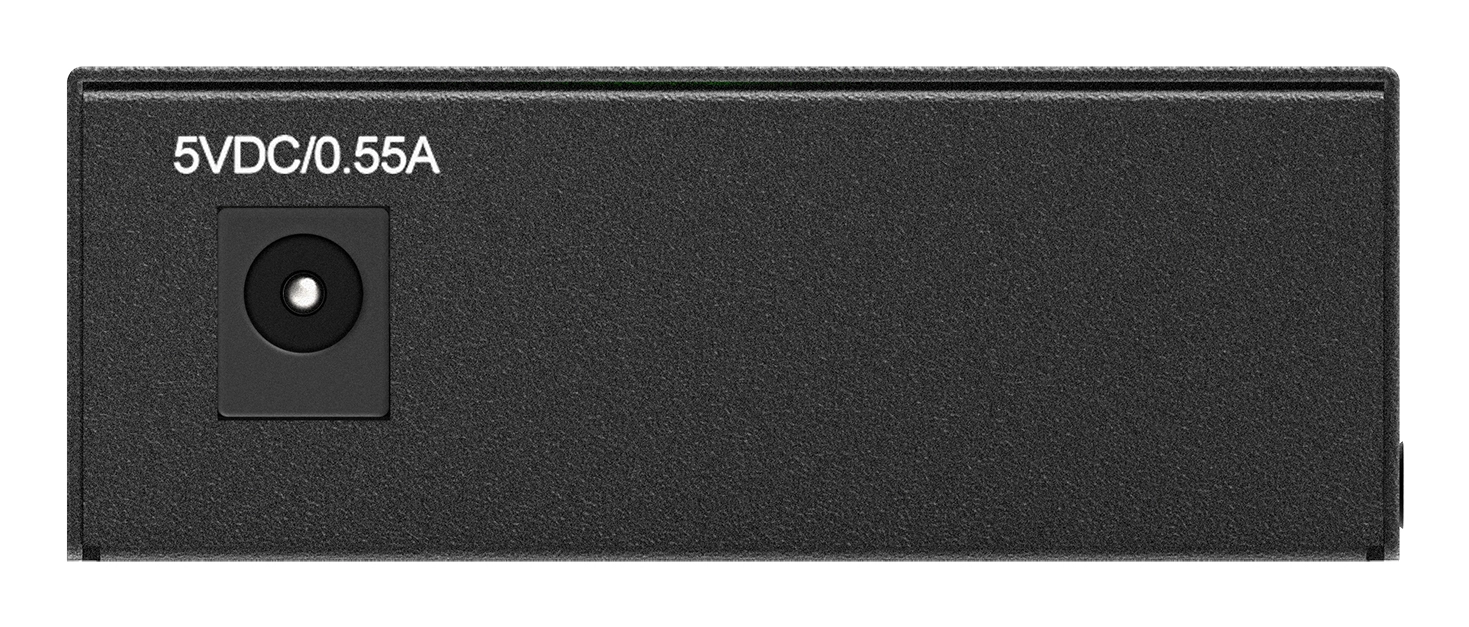

DC-in jack	Y
Performance
Maximum transfer distance	10000 m
Fiber mode structure	Single-mode
Design
Internal	N
LED indicators	Activity, Link, Power
Power
Output voltage	5 V
Output current	0.55 A
Power consumption (max)	1.65 W
Weight & dimensions
Width	93.5 mm
Depth	70.5 mm
Height	26 mm
Weight	124 g
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80 procent
