Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 4G Redundancy
Seamless failover between Ethernet WAN and 4G for reliable connectivity

SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.

Carrier Diversity and Network Redundancy

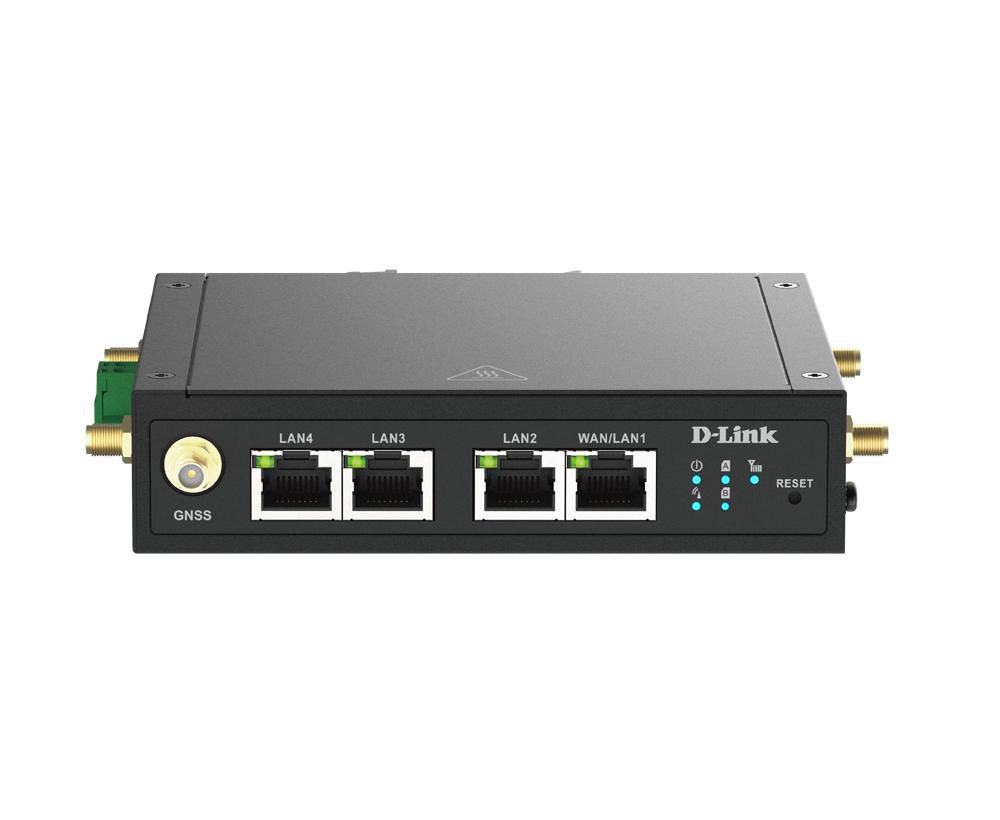

The DWM-530-T 4G M2M Router ensures continuous service with Dual SIM (Micro-SIM 3FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and LTE connections, ensuring you always have the best network access.

Secure Your Network with VPN
The DWM-530-T 4G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, and GRE. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-530-T ensures that financial transactions and customer information are securely managed and transmitted.

Robust Build Quality
The DWM-530-T is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting allows the DWM-530-T to be mounted virtually anywhere to optimize signal quality.

Specification

Product
Product id	1003064
Brand	D-Link
Partnr	DWM-530-T
EAN/UPC code	790069476709
Design
Device type	Cellular network router
Product colour	Black
Mounting	DIN-rail
Reset button	Y
LED indicators	Y
Ethernet LAN features
DHCP server	Y
Wireless LAN features
Wi-Fi	Y
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	300 Mbit/s
Mobile network
Data network	4G
4G standard	LTE
Number of SIM cards	2
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Network address translation (NAT)	Y
Firewall	Y
DMZ support	Y
Port forwarding	Y
Antenna
Antenna type	External
Antenna connector type	SMA
Antennas quantity	4
Power
Power source type	DC
Input voltage	9 - 36 V
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 procent
Weight & dimensions
Width	131 mm
Depth	99 mm
Height	31 mm
