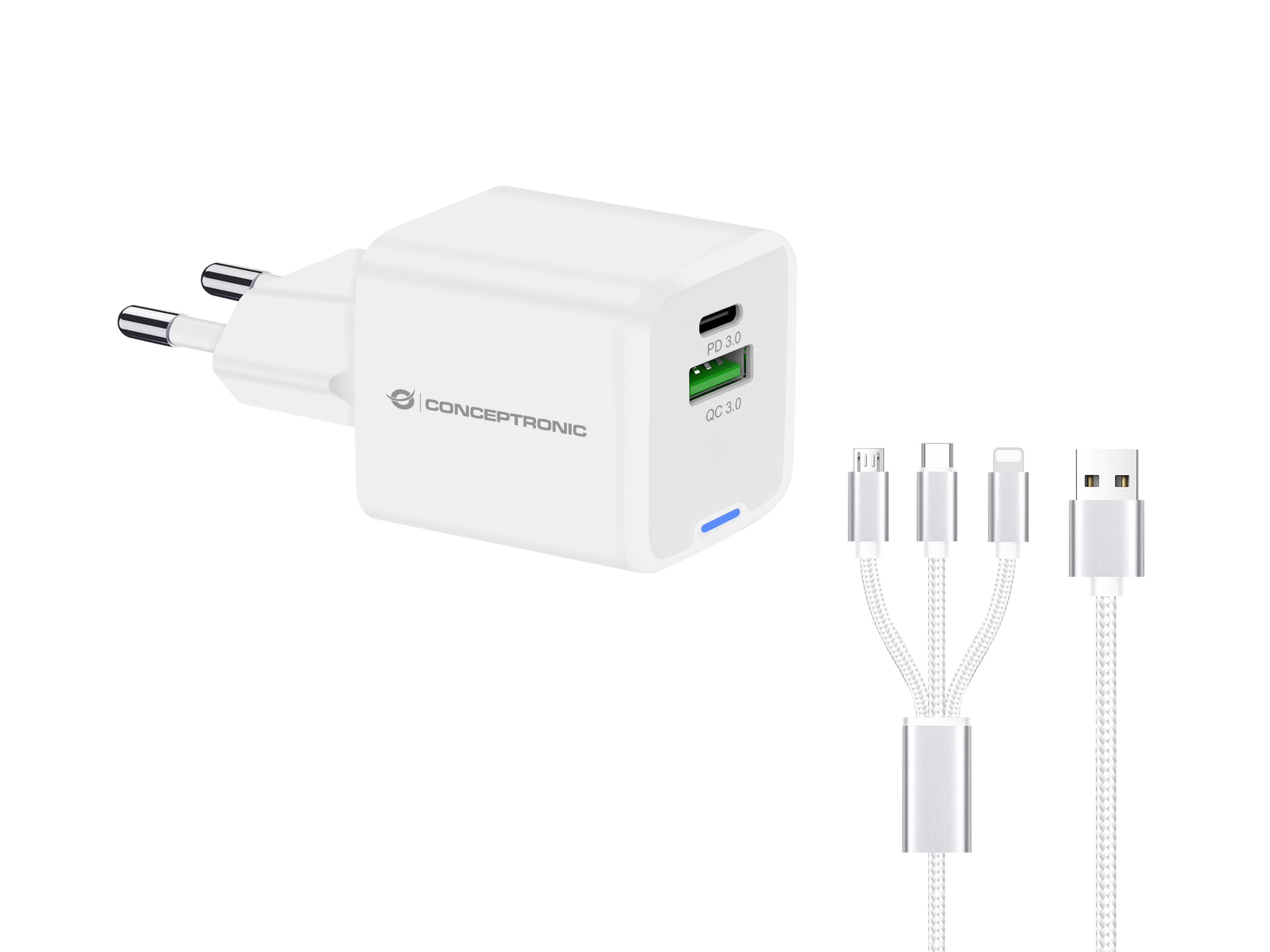

2-Port 33W GaN USB PD Charger with 3-in-1 Charging Cable - USB-C x 1 - USB-A x 1 - QC 3.0

2-Port 33W GaN USB PD Charger with 3-in-1 Charging Cable - USB-C x 1 - USB-A x 1 - QC 3.0 - PPS

Conceptronic

Not in stock

€ 17,41

€ 21,07 incl 21% VAT

Would you like to ask us a question about this product?

This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 33W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation. For added convenience, the charger includes a 1.5m 3.0A 3-in-1 cable.

Specification

Product
Product id	1012302
Brand	Conceptronic
Partnr	ALTHEA16W
EAN/UPC code
Performance
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	1
Quick charge	Y
Quick charge version	Power Delivery 3.0, Quick Charge 3.0
USB Power Delivery	Y
USB Power Delivery revision	3.0
Number of simultaneously connected devices (max)	2
Power protection features	Overheating, Overload, Short circuit
Country of origin	China
Design
Product colour	White
Cable length	1.5 m
Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	0.8 A
Maximum power	33 W
Maximum output voltage	20 V
Output current (15V)	2 A
Minimum output voltage	3.3 V
Output current (20V)	1.5 A
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	2.5 A
Technical details
Sustainability compliance	Y
Sustainability certificates	ErP
Harmonized System (HS) code	8504408390
Weight & dimensions
Width	35 mm
Depth	72 mm
Height	34 mm
Weight	54 g
Packaging data
Cables included	USB
Package type	Box
Package width	95 mm
Package depth	37 mm
Package height	194 mm
Package weight	194 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	5 - 95 procent
Certificates
Compliance certificates	CE, REACH, RoHS
Logistics data
Master (outer) case width	450 mm
Pallet height	1800 mm
Master (outer) case length	450 mm
Master (outer) case height	300 mm
Master (outer) case weight	10000 g
Quantity per master (outer) case	50 stuk(s)
Pallet width	1200 mm
Pallet length	800 mm
Other features
Manual	Y
