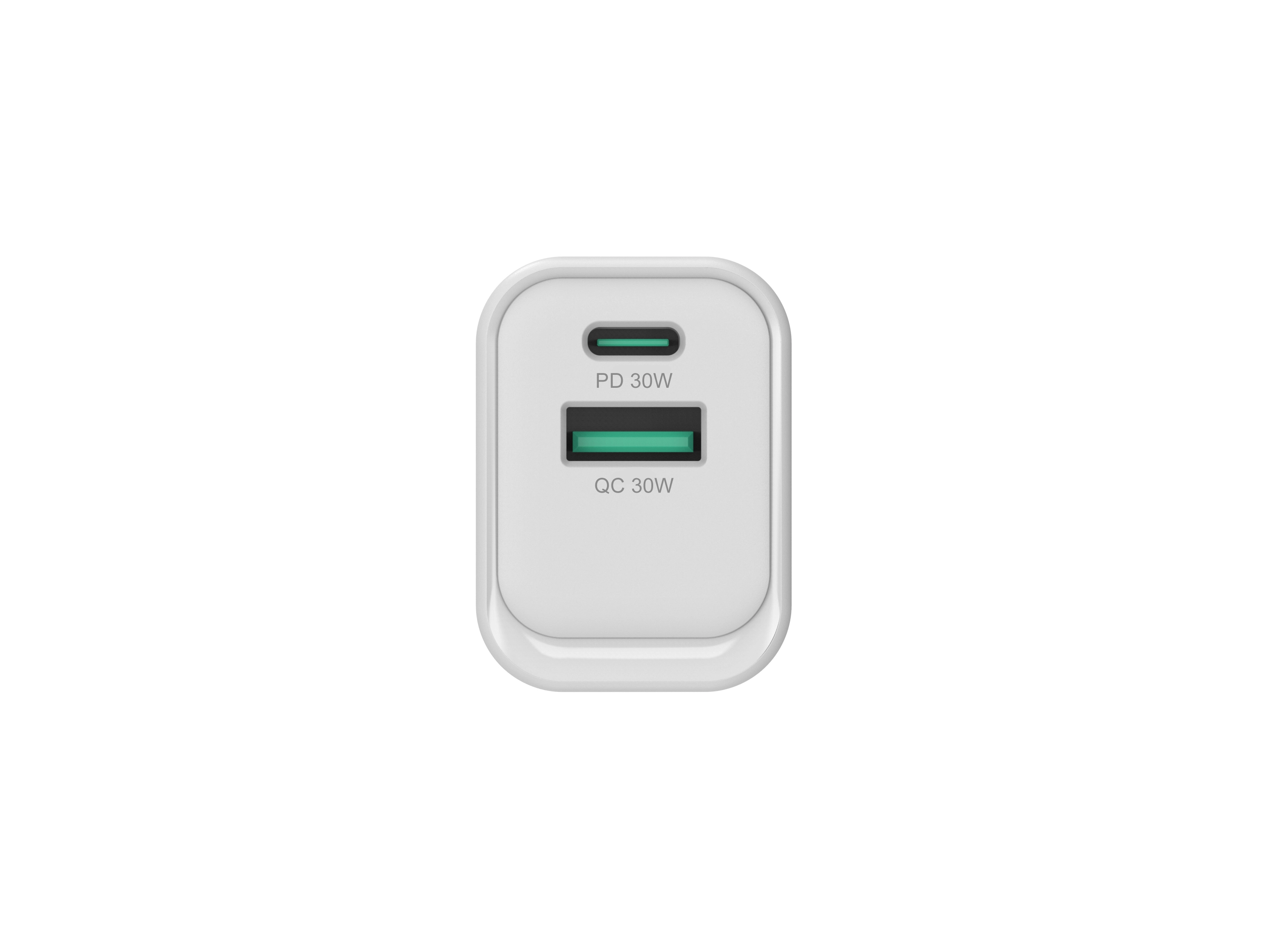

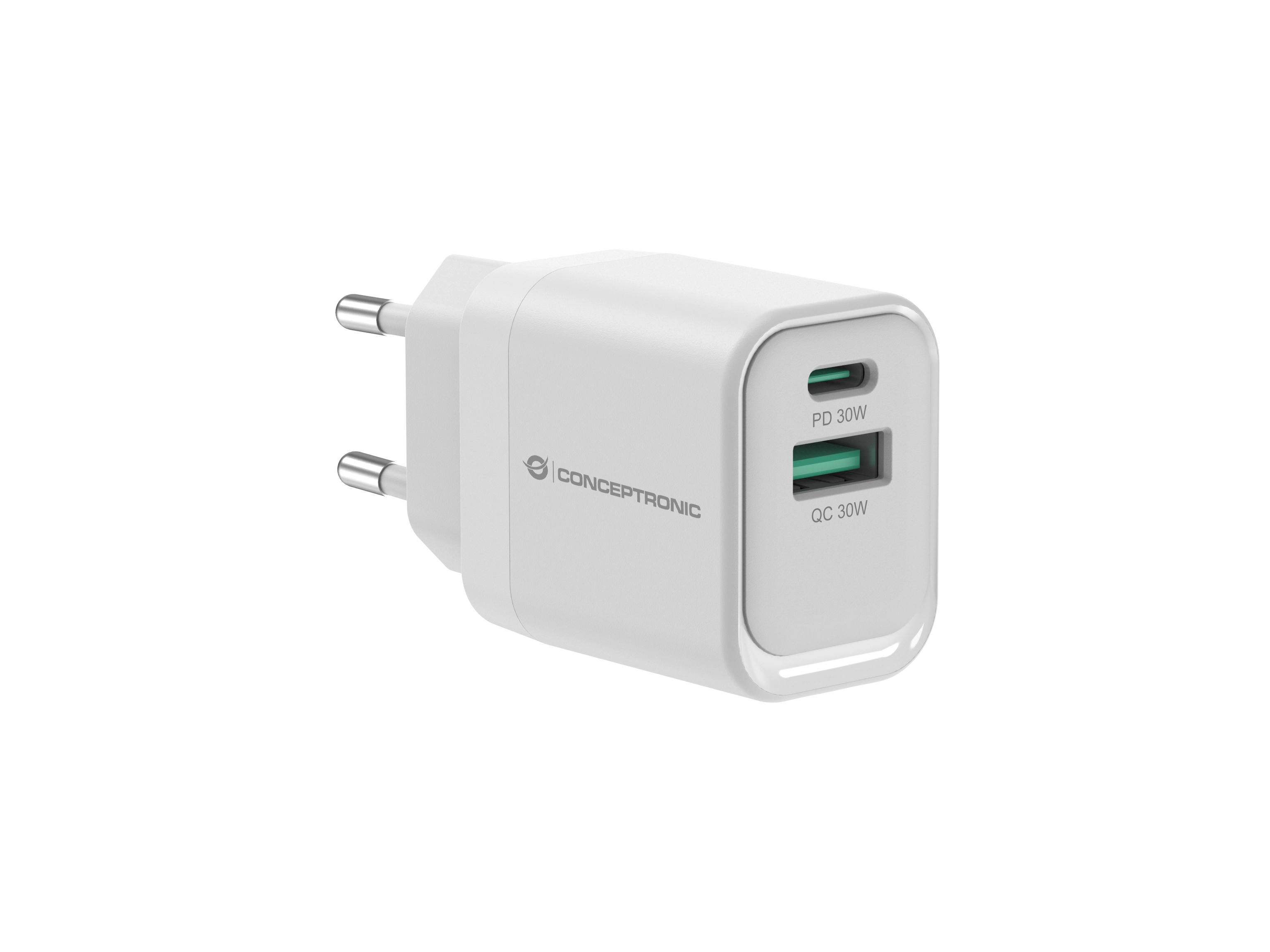

This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 33W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation.

Specification

Product
Product id	1012306
Brand	Conceptronic
Partnr	ALTHEA19W33
EAN/UPC code
Performance
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	1
Quick charge	Y
Quick charge version	Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
USB Power Delivery	Y
USB Power Delivery revision	3.0
Number of simultaneously connected devices (max)	2
Programmable power supply (PPS)	Y
Power protection features	Overheating, Overload, Short circuit
Country of origin	China
Design
Product colour	White
Housing material	Polycarbonate (PC)
Gallium nitride (GaN) transistors	Y
Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	0.8 A
Maximum power	33 W
Maximum output voltage	20 V
Minimum output voltage	5 V
Port 1 output current	3 A
Port 2 output current	3 A
Technical details
Harmonized System (HS) code	850440
Number of cartons per pallet	36
Weight & dimensions
Width	42.5 mm
Depth	40 mm
Height	28 mm
Weight	57.3 g
Packaging data
Quantity per pack	1 stuk(s)
Package type	Hanging box
Package width	120 mm
Package depth	75 mm
Package height	33 mm
Package weight	92.3 g
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 80 °C
Storage relative humidity (H-H)	20 - 80 procent
Packaging content
Quick installation guide	Y
Certificates
Compliance certificates	CE, RoHS
Logistics data
Customs product code (TARIC)	8504408390
Master (outer) case width	257 mm
Pallet height	1752.4 mm
Master (outer) case length	365 mm
Master (outer) case height	400 mm
Master (outer) case weight	9730 g
Quantity per master (outer) case	100 stuk(s)
Pallet width	1200 mm
Pallet length	800 mm
