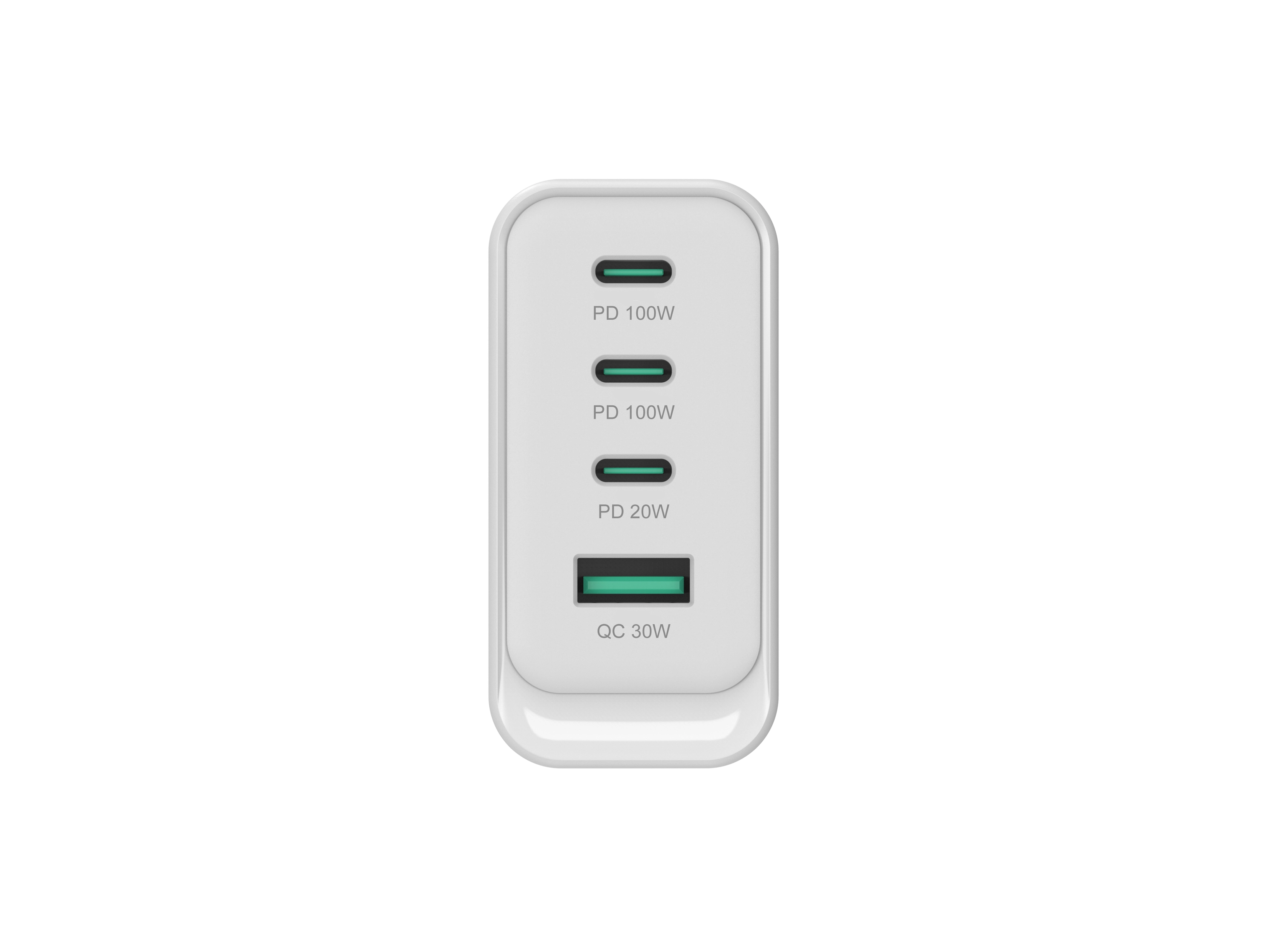

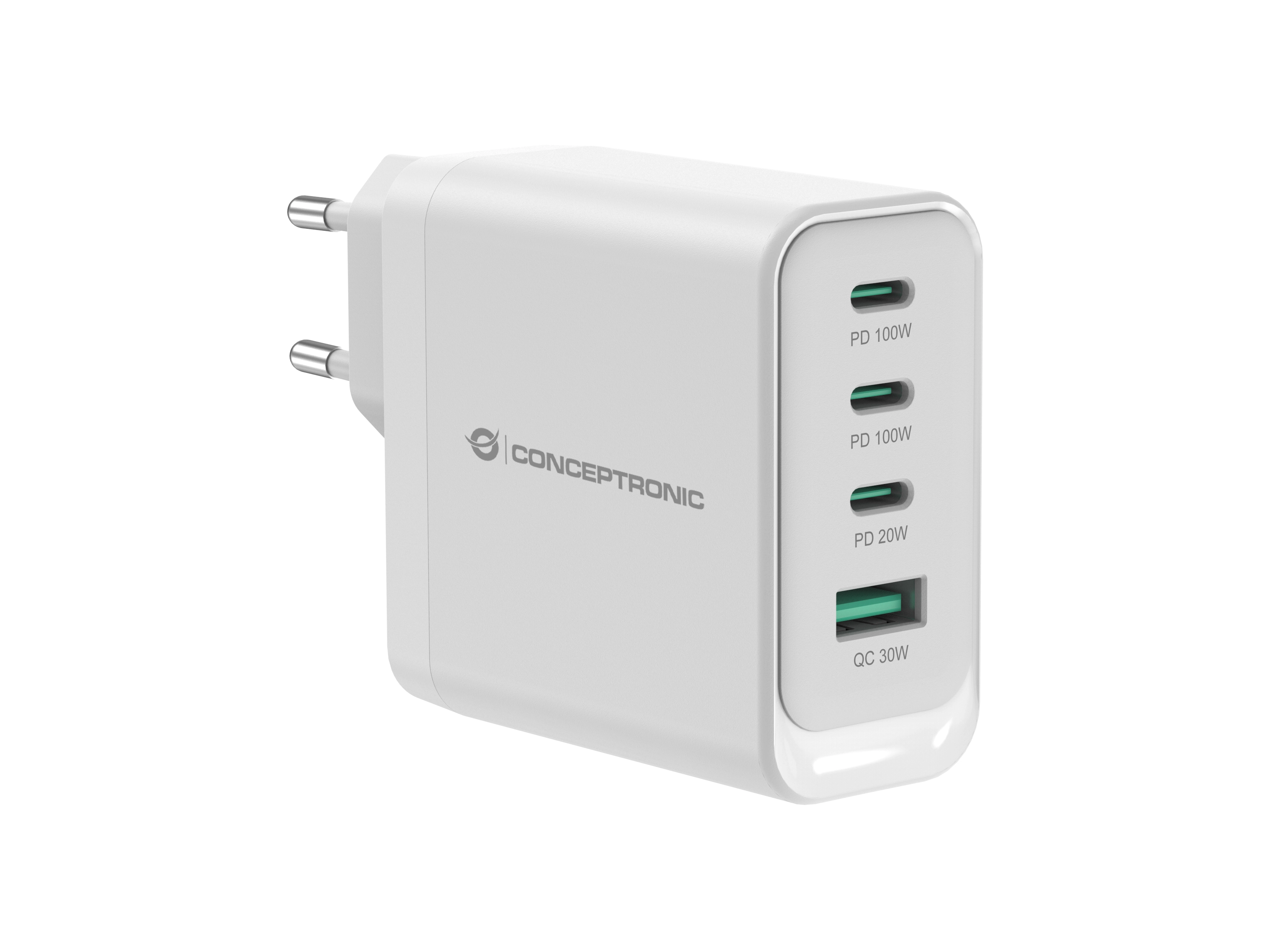

This charger harnesses cutting-edge Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring exceptionally fast and efficient charging. It features a versatile port selection with 4 ports: 3 USB-C ports supporting Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This configuration allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging and features Programmable Power Supply (PPS) compliance to optimize charging efficiency while minimizing heat generation.

Specification

Product
Product id	1012309
Brand	Conceptronic
Partnr	ALTHEA22W100
EAN/UPC code	4015867240731
Performance
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	3
Quick charge	Y
Quick charge version	Adaptive Fast Charging, Hisilicon FCP, Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
USB Power Delivery	Y
USB Power Delivery revision	3.0
Number of simultaneously connected devices (max)	4
Programmable power supply (PPS)	Y
Power protection features	Overheating, Overload, Short circuit
Country of origin	China
Design
Product colour	White
Housing material	Polycarbonate (PC)
Gallium nitride (GaN) transistors	Y
Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	2.2 A
Maximum power	100 W
Maximum output voltage	20 V
Minimum output voltage	3.3 V
Port 3 output current	3 A
Port 4 output current	3 A
Port 1 output current	4.5 A
Port 2 output current	4.5 A
Technical details
Harmonized System (HS) code	850440
Number of cartons per pallet	64
Weight & dimensions
Width	68.5 mm
Depth	65 mm
Height	32 mm
Weight	191.4 g
Packaging data
Quantity per pack	1 stuk(s)
Package type	Hanging box
Package width	127 mm
Package depth	94 mm
Package height	35 mm
Package weight	247.4 g
Operational conditions
Operating temperature (T-T)	0 - 25 °C
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Compliance certificates	CE, RoHS
Logistics data
Customs product code (TARIC)	8504408390
Master (outer) case width	385 mm
Pallet height	1832.4 mm
Master (outer) case length	272 mm
Master (outer) case height	210 mm
Master (outer) case weight	10396 g
Quantity per master (outer) case	40 stuk(s)
Pallet width	1200 mm
Pallet length	800 mm
Other features
Manual	Y
