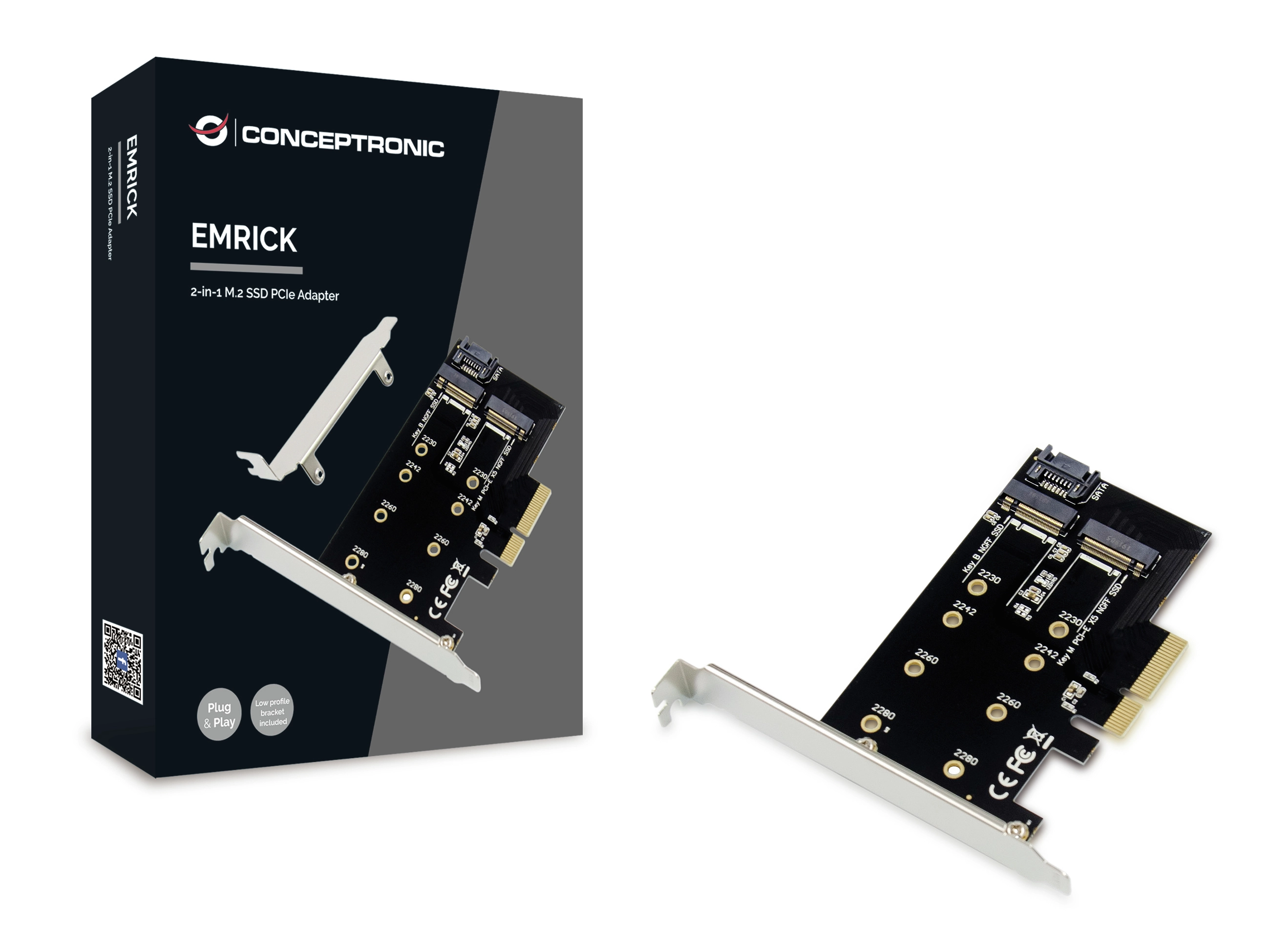

This 2-in-1 M.2 SSD PCIe Adapter is a multi-functional NVMe conversion card, which can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with a SATA cable. It also features ultra-fast PCI Express 3.0 X4 lanes, transmitting bandwidth up to 32GT/S, as well as Serial ATA v3.0 to transmit at speeds up to 6Gbps. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.

Specification

Product
Product id	1012405
Brand	Conceptronic
Partnr	EMRICK04B
EAN/UPC code
Technical details
Chipset	JMB585
Ports & interfaces
Host interface	PCIe
Output interface	M.2
Expansion card standard	PCIe 3.0
SATA revision	3.0
Internal SATA ports quantity	1
Number of M.2 (M) slots	1
Number of M.2 (B) slots	1
Design
Internal	Y
Cooling type	Passive
Country of origin	China
Features
Data transfer rate (max)	6 Gbit/s
Plug and Play	Y
Harmonized System (HS) code	84733020

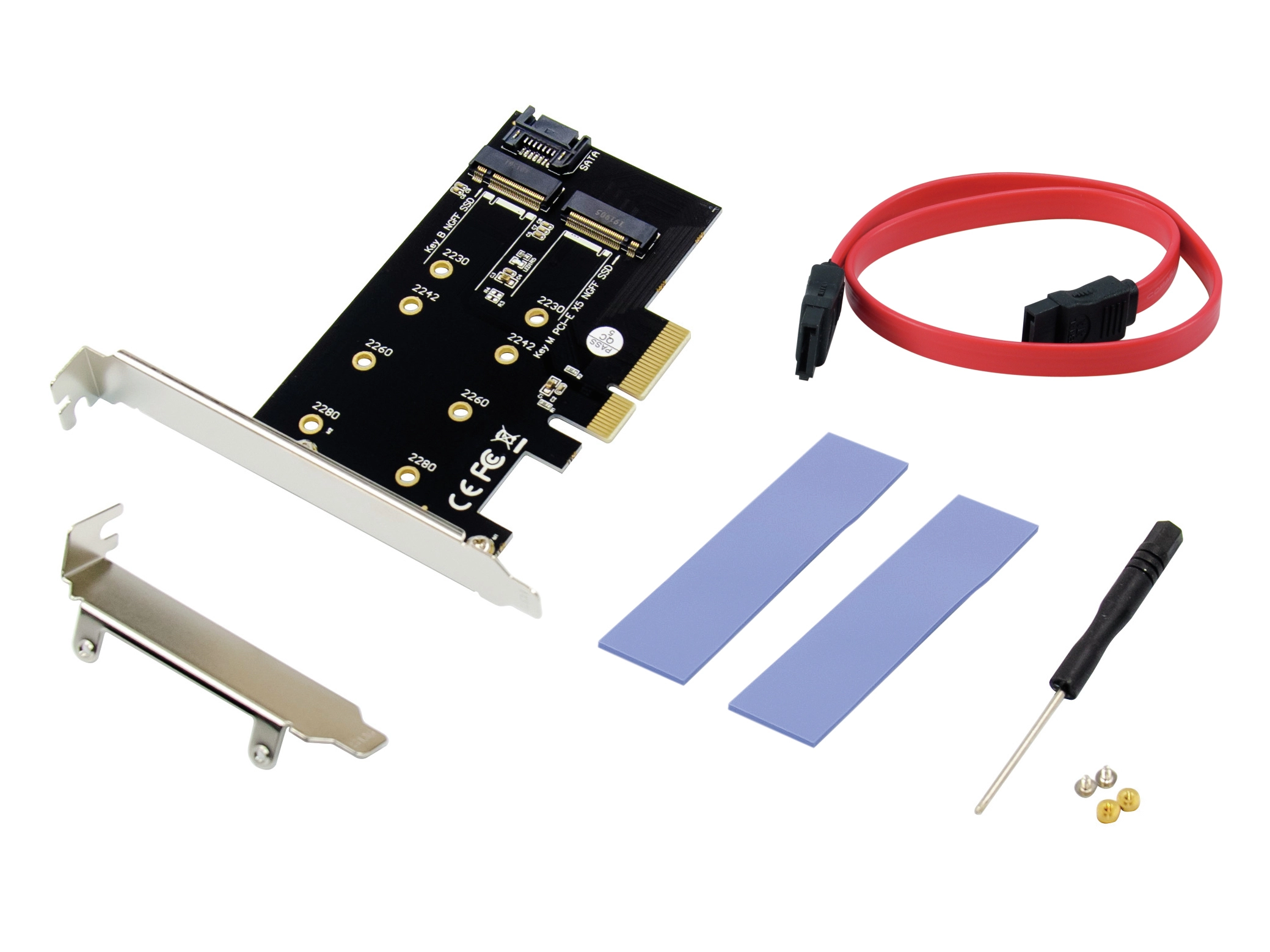

Packaging data
Cables included	SATA
Screws included	Y
Mounting brackets included	Y
Quick installation guide	Y
Package width	132 mm
Package depth	156 mm
Package height	26 mm
Package weight	100 g
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Y
Weight & dimensions
Width	70 mm
Depth	114 mm
Height	18 mm
Weight	42 g
Logistics data
Master (outer) case width	280 mm
Master (outer) case length	180 mm
Master (outer) case height	415 mm
Quantity per master (outer) case	30 stuk(s)
Master (outer) case weight	3600 g
