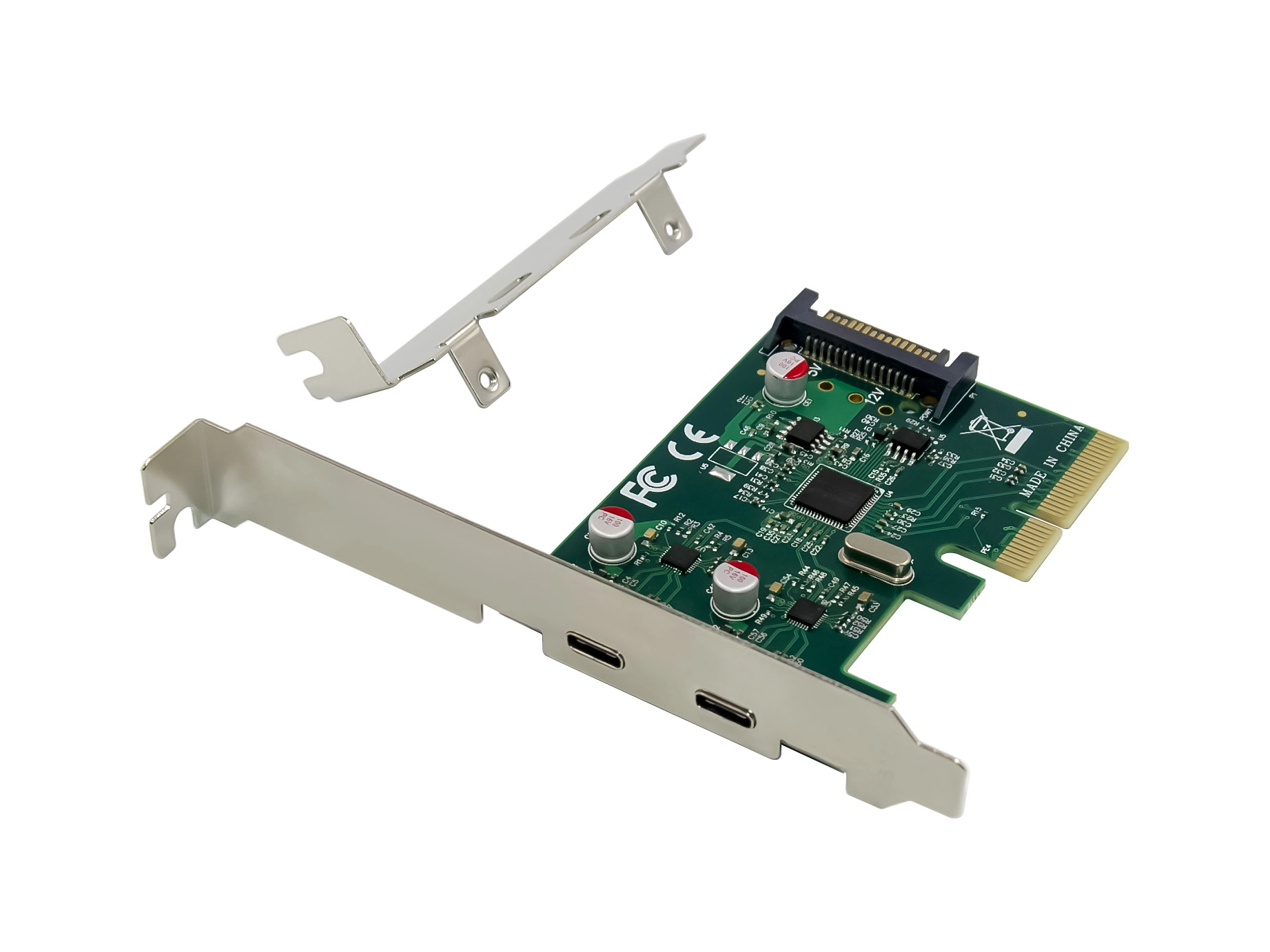

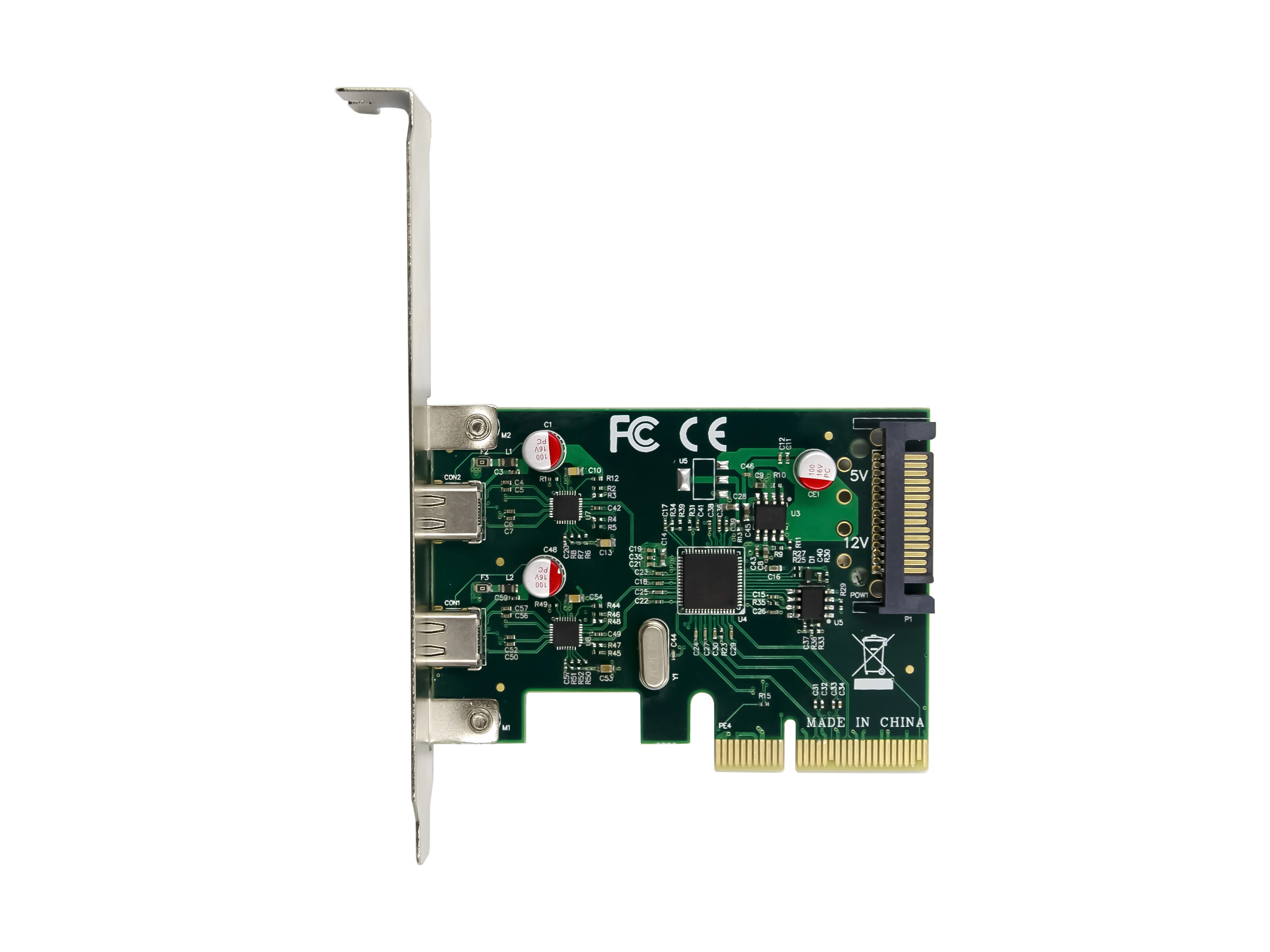

This PCIe card allows you to easily add two high-speed USB 3.2 Gen 2 ports to your desktop computer, with a maximum data transfer rate of 10Gb/s. It offers a fast and efficient solution for transferring large files and documents. Effortlessly upgrade your desktop and enjoy enhanced data transfer speeds with this reliable PCIe card.

Specification

Product
Product id	1012414
Brand	Conceptronic
Partnr	EMRICK13G
EAN/UPC code
Technical details
Chipset	ASM3142
Compliance certificates	CE, RoHS
Ports & interfaces
Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
SATA power connector type	SATA 15-pin
Design
Internal	Y
Product colour	Green
Hot-swap	Y
Country of origin	China
Features
Data transfer rate (max)	10 Gbit/s
UASP support	Y
Harmonized System (HS) code	8471800000
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Operating relative humidity (H-H)	15 - 90 procent
Packaging data
Mounting brackets included	Y
Drivers included	Y
Quick installation guide	Y
Package width	30 mm
Package depth	130 mm
Package height	140 mm
Package weight	120 g
Package type	Box
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Y
Weight & dimensions
Width	80 mm
Depth	58 mm
Height	30 mm
Weight	32 g
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	340 mm
Master (outer) case height	205 mm
Quantity per master (outer) case	30 stuk(s)
Master (outer) case weight	3600 g
Pallet width	1200 mm
Pallet length	800 mm
Pallet height	1630 mm
Number of cartons per pallet	36
