The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

Specification

Product
Product id	1012542
Brand	Conceptronic
Partnr	ZEUS07ES
EAN/UPC code
Technical details
Harmonized System (HS) code	8504402000
Compliance certificates	CE, RoHS
Features
UPS topology	Line-Interactive
Output power capacity	1 VA
Output power	600 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Automatic Voltage Regulation (AVR)	Y
Power protection features	Short circuit
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Auto-restart	Y
Country of origin	China

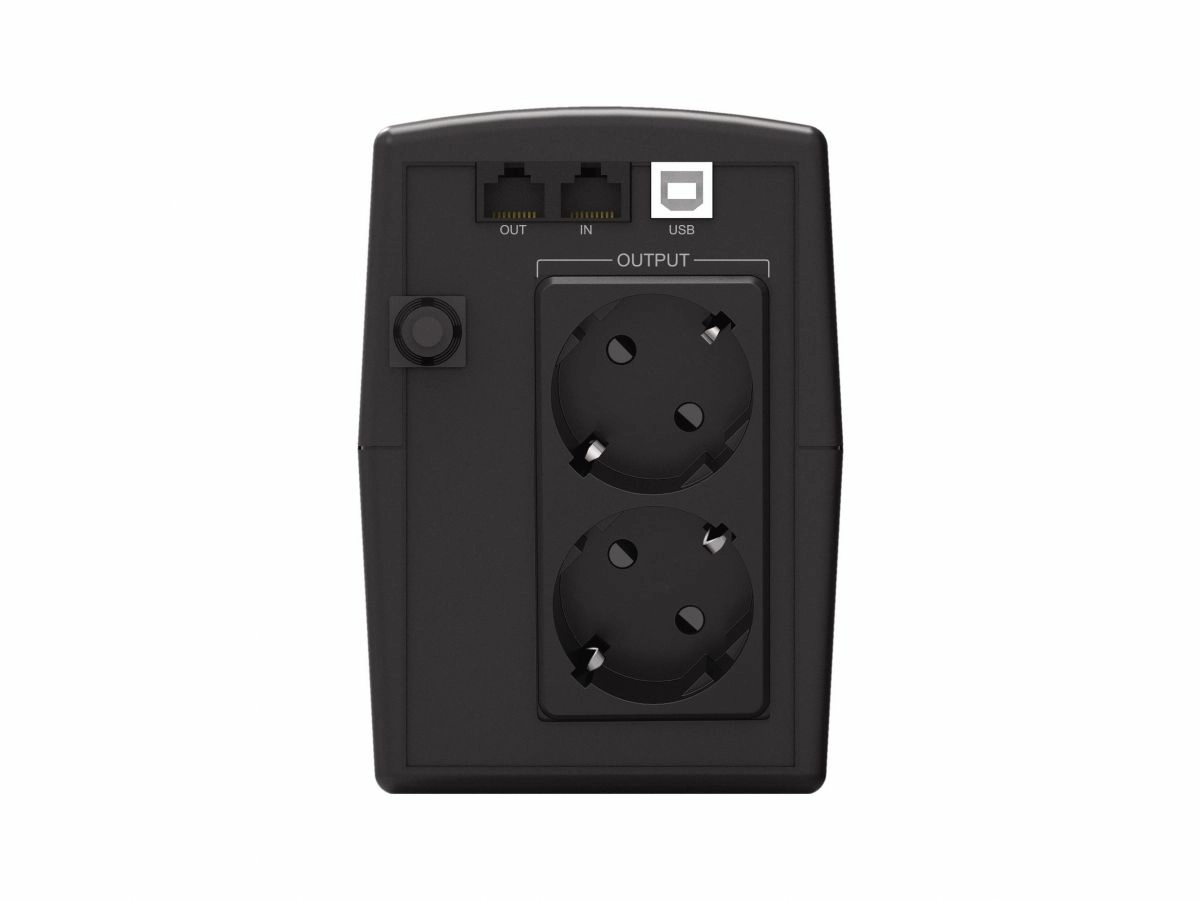

Ports & interfaces
AC outlet types	Type F
AC outlets quantity	2 AC-uitgang(en)
USB port	Y
USB port type	USB Type-B
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery capacity	7 Ah
Battery voltage	12 V
Battery recharge time(90%)	8 uur
Battery capacity (Watt-hours)	84 Wh
Design
Form factor	Compact
Product colour	Black
International Protection (IP) code	IP20
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Packaging data
Cables included	Output power cable, USB cable
Quick installation guide	Y
Package width	161 mm
Package depth	357 mm
Package height	215 mm
Package weight	5500 g
Weight & dimensions
Width	96 mm
Depth	286 mm
Height	138 mm
Weight	5190 g
Logistics data
Quantity per pallet	48 stuk(s)
Master (outer) case width	179 mm
Pallet height	2211 mm
Master (outer) case length	377 mm
Master (outer) case height	240 mm
Pallet width	1200 mm
Master (outer) case weight	5800 g
Pallet length	800 mm
Quantity per master (outer) case	1 stuk(s)
