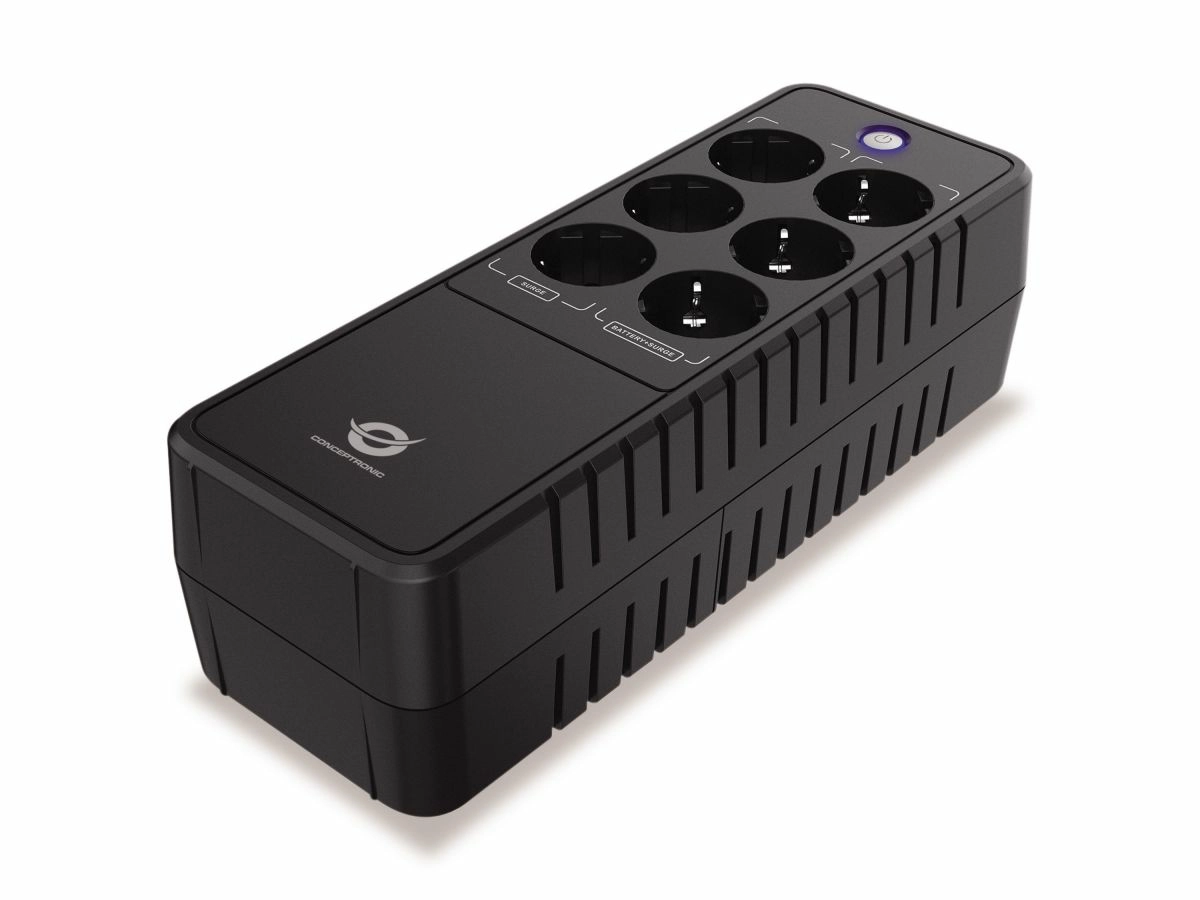

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

Specification

Product
Product id	1012545
Brand	Conceptronic
Partnr	ZEUS09E
EAN/UPC code
Technical details
Sustainability compliance	Y
Harmonized System (HS) code	8504402000
Pallet net width	1200 mm
Pallet net depth	800 mm
Compliance certificates	CE, RoHS
Pallet net height	1855 mm
Features
UPS topology	Standby (Offline)
Output power capacity	0.85 VA
Output power	490 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge protection	Y
Surge protection features	Modem, Network
Audible alarm(s)	Y
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Auto-restart	Y
Socket circuit breaker	Y
Country of origin	China
Ports & interfaces
AC outlet types	Type F
AC outlets quantity	6 AC-uitgang(en)
USB port	Y
USB port type	USB Type-B
Ethernet LAN (RJ-45) ports	2
Battery
Battery capacity	6 Ah
Battery voltage	12 V
Battery recharge time(90%)	8 uur
Battery capacity (Watt-hours)	72 Wh
Design
Form factor	Compact
Product colour	Black
LED indicators	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Packaging data
Quick installation guide	Y
Package width	138 mm
Package depth	351 mm
Package height	182 mm
Package weight	3200 g
Weight & dimensions
Width	110 mm
Depth	309 mm
Height	90 mm
Weight	2940 g
Logistics data
Master (outer) case width	302 mm
Master (outer) case length	370 mm
Master (outer) case height	397 mm
Master (outer) case weight	13600 g
Quantity per master (outer) case	4 stuk(s)
