The Conceptronic Online UPS is the ultimate solution for reliable battery backup in your home or office. With an output power factor of 1.0, this UPS ensures maximum efficiency and performance. The ECO mode feature helps save energy, making it an environmentally friendly choice. Designed for compatibility with generators, it provides continuous power even during extended outages.

The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.

Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.

Specification

Product
Product id	1012548
Brand	Conceptronic
Partnr	ZEUS51E3K
EAN/UPC code	4015867235461
Power
Input frequency	50/60 Hz
Technical details
Harmonized System (HS) code	8504402000
Compliance certificates	CE, RoHS
Features
UPS topology	Double-conversion (Online)
Output power capacity	3 VA
Output power	3000 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	16 A
Output power factor	1
ECO mode	Y
Emergency Power Off (EPO)	Y
Input current Total Harmonic Distortion (THD)	5 procent
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Country of origin	China

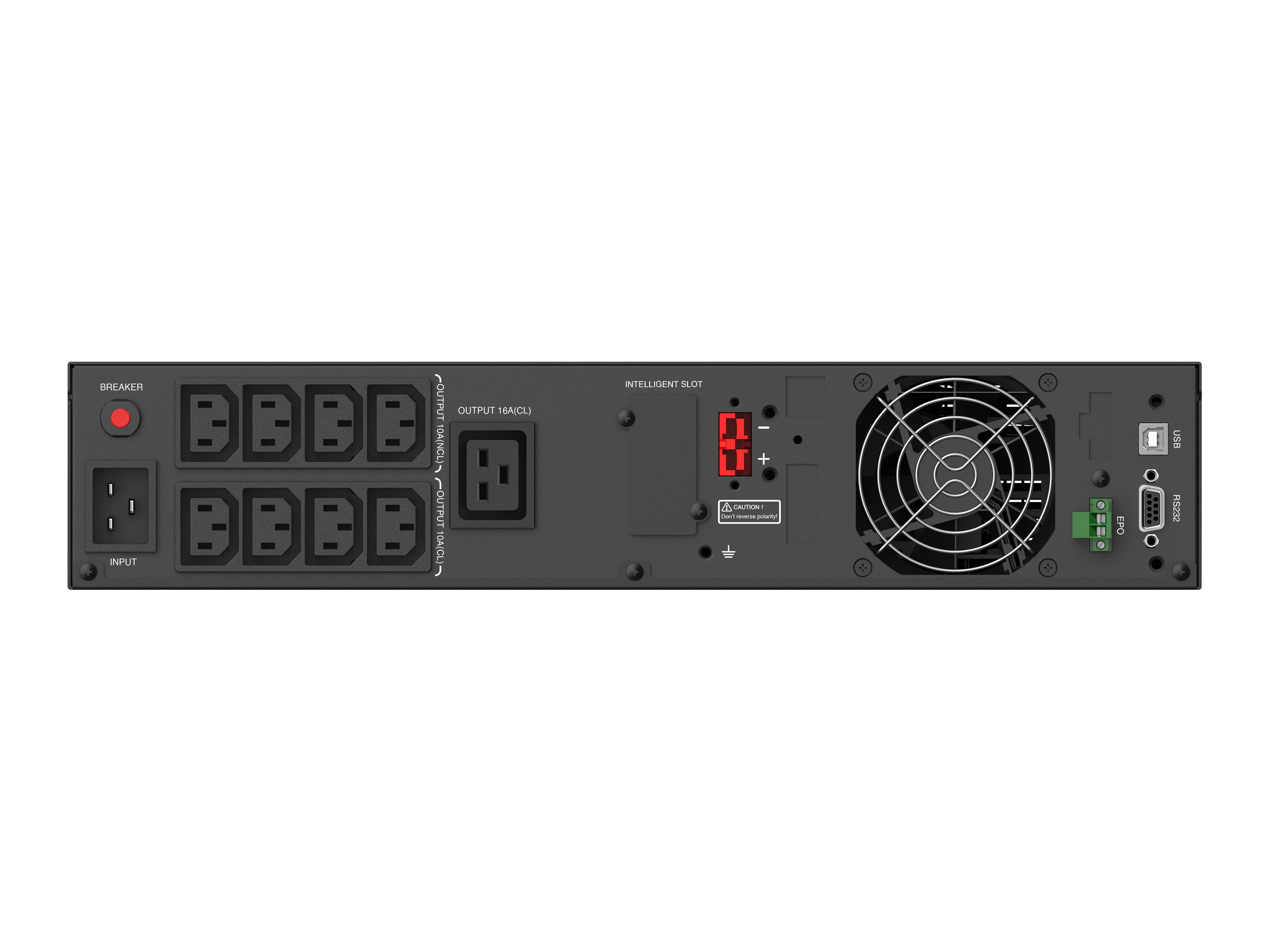

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	C19 coupler
AC outlets quantity	9 AC-uitgang(en)
USB port	Y
USB port type	USB Type-B
USB 2.0 ports quantity	1
Serial interface	Y
Serial interface type	RS-232
RS-232 ports	1
Programmable sockets	Y
Battery
Battery capacity	9 Ah
Battery voltage	12 V
Battery recharge time	4 uur
Battery capacity (Watt-hours)	108 Wh
Design
Form factor	Desktop
Product colour	Black
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 procent
Packaging data
Rack mount kit	Y
Screws included	Y
Cables included	Input power cable, RS-232, USB cable
Quick installation guide	Y
Weight & dimensions
Width	438 mm
Depth	610 mm
Height	88 mm
Weight	27340 g
Logistics data
Quantity per pallet	16 stuk(s)
Master (outer) case width	550 mm
Pallet height	2136 mm
Master (outer) case length	746 mm
Master (outer) case height	226 mm
Pallet width	760 mm
Master (outer) case weight	30330 g
Pallet length	1100 mm
Quantity per master (outer) case	1 stuk(s)
