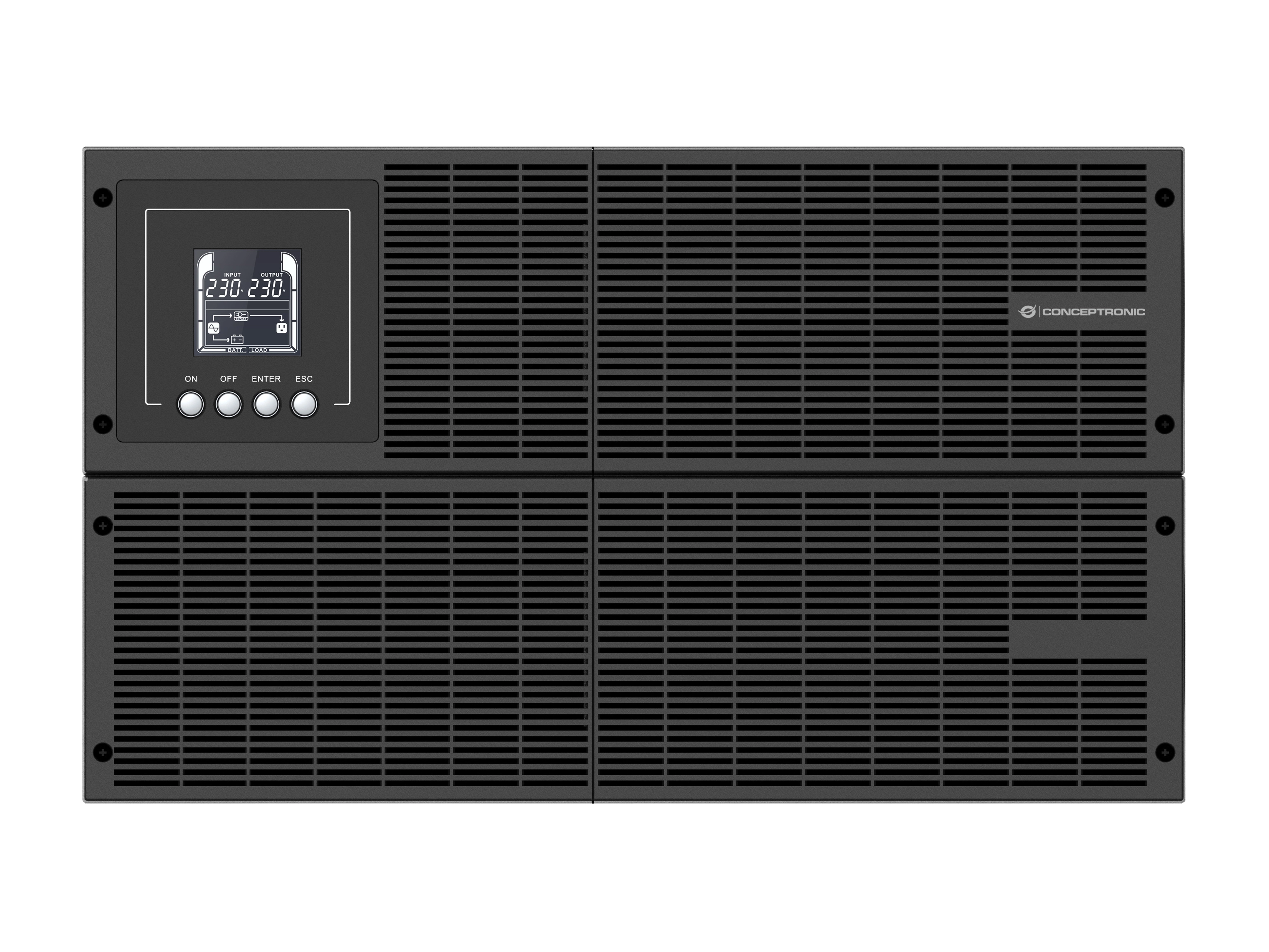

The Conceptronic Online Rack/Tower UPS is the ultimate solution for dependable battery backup in both home and office settings. With an output power factor of 1.0, this UPS delivers maximum efficiency and performance. Its ECO mode feature conserves energy, making it an environmentally friendly choice. Designed for generator compatibility, it provides continuous power even during extended outages.

Equipped with a HID-compatible USB connection for seamless device communication and an Emergency Power Off (EPO) port for added safety during emergencies, the Conceptronic Online Rack/Tower UPS offers both convenience and security. The easy battery replacement feature simplifies maintenance, while the programmable outlet management allows you to tailor power distribution to meet your specific needs.

Easy to install and operate, the Conceptronic Online UPS provides a reliable and efficient way to protect your systems from power surges and failures, ensuring the uninterrupted operation of your critical equipment. The included rackmount ears support both rack mounting and tower installation, offering flexibility in setup.

Specification

Product
Product id	1012549
Brand	Conceptronic
Partnr	ZEUS51E6K
EAN/UPC code	4015867237816
Power
Input frequency	50/60 Hz
Technical details
Harmonized System (HS) code	850440
Compliance certificates	CE, RoHS
Features
UPS topology	Double-conversion (Online)
Output power capacity	6 VA
Output power	6000 W
Waveform	Sine
Input operation voltage (min)	80 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Output power factor	1
ECO mode	Y
Input current Total Harmonic Distortion (THD)	5 procent
Audible alarm(s)	Y
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Country of origin	China
Ports & interfaces
USB port	Y
USB port type	USB Type-B
USB 2.0 ports quantity	1
Serial interface	Y
Serial interface type	RS-232
Serial ports quantity	1
Emergency Power Off (EPO) connector	Y
Battery
Battery capacity	7 Ah
Battery voltage	192 V
Number of batteries supported	16
Battery recharge time	4 uur
Battery capacity (Watt-hours)	84 Wh
Design
Form factor	Rackmount/Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 90 procent
Packaging data
Package type	Box
Weight & dimensions
Width	438 mm
Depth	480 mm
Height	131 mm
Weight	59400 g
Logistics data
Master (outer) case width	570 mm
Customs product code (TARIC)	8504406090
Pallet height	1260 mm
Master (outer) case length	890 mm
Master (outer) case height	572 mm
Pallet width	895 mm
Master (outer) case weight	66020 g
Pallet length	575 mm
Quantity per master (outer) case	1 stuk(s)
