Introducing the Conceptronic Online Tower UPS, the ultimate power backup solution for your home or office. With an ECO Mode for energy-saving operation and compatibility with generators, this UPS ensures continuous power even during extended outages. Equipped with HID USB communication, you can seamlessly connect and communicate with your devices for enhanced control and monitoring. For added safety during emergencies, the UPS is equipped with an Emergency Power Off (EPO) port, allowing for quick shutdown in critical situations. With its sleek tower design, the Conceptronic Online Tower UPS fits seamlessly into any environment, providing reliable power backup when you need it most.

Specification

Product
Product id	1012552
Brand	Conceptronic
Partnr	ZEUS52E3K
EAN/UPC code	4015867237847
Power
Input frequency	50/60 Hz
Technical details
Harmonized System (HS) code	8504402000
Compliance certificates	CE, RoHS
Features
UPS topology	Double-conversion (Online)
Output power capacity	3 VA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	16 A
Output power factor	0.9
ECO mode	Y
Emergency Power Off (EPO)	Y
Input current Total Harmonic Distortion (THD)	5 procent
Power protection features	Short circuit
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Country of origin	China

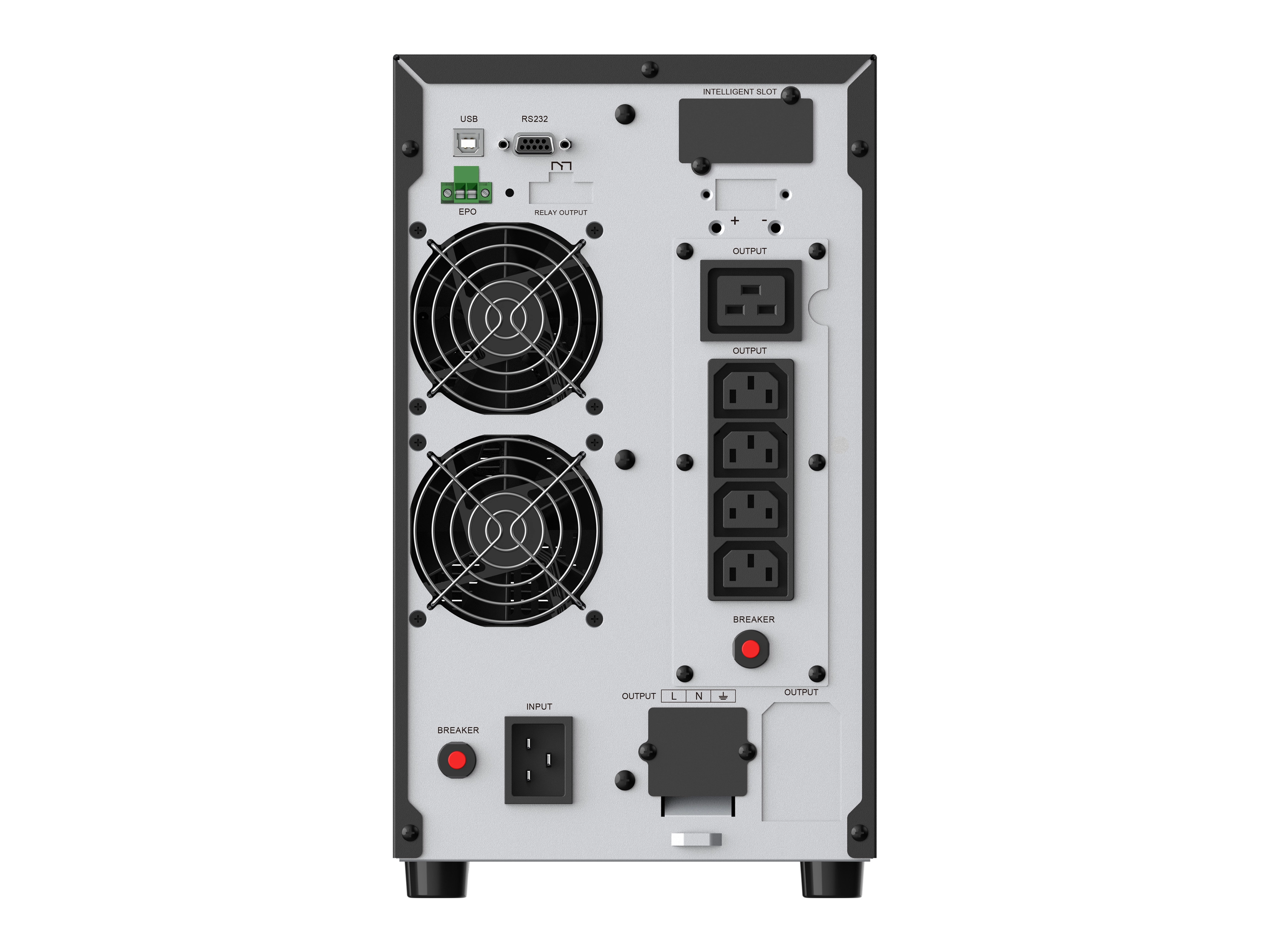

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	C19 coupler
AC outlets quantity	5 AC-uitgang(en)
USB port	Y
USB port type	USB Type-B
USB 2.0 ports quantity	1
Serial interface	Y
Serial interface type	RS-232
RS-232 ports	1
Battery
Battery capacity	9 Ah
Battery voltage	12 V
Battery recharge time	4 uur
Battery capacity (Watt-hours)	108 Wh
Design
Form factor	Tower
Product colour	Black
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 procent
Packaging data
Cables included	Input power cable, RS-232, USB cable
Quick installation guide	Y
Weight & dimensions
Width	196 mm
Depth	416 mm
Height	342 mm
Weight	21300 g
Logistics data
Quantity per pallet	16 stuk(s)
Master (outer) case width	295 mm
Pallet height	126 mm
Master (outer) case length	519 mm
Master (outer) case height	458 mm
Pallet width	1200 mm
Master (outer) case weight	22320 g
Pallet length	1000 mm
Quantity per master (outer) case	1 stuk(s)
