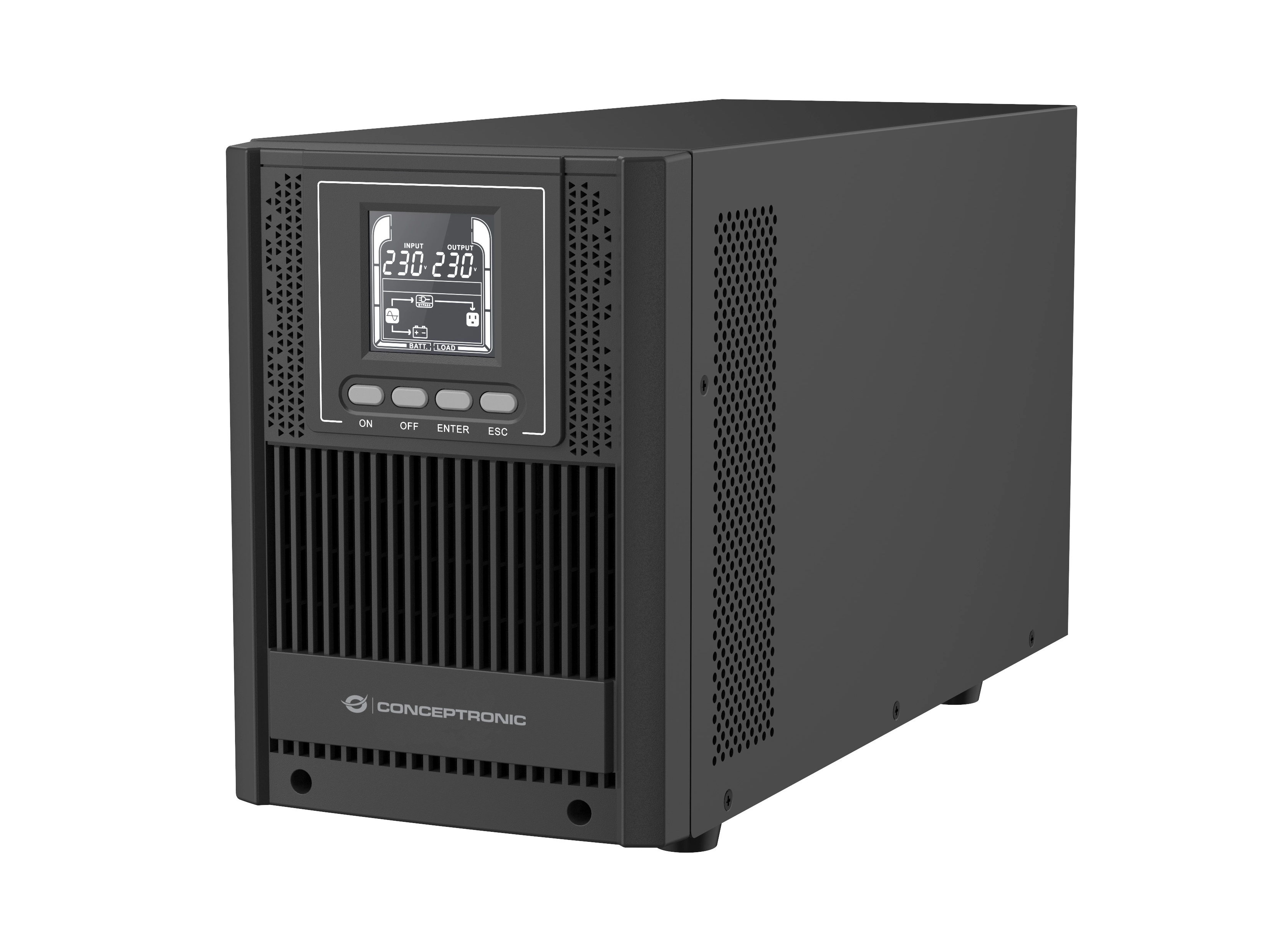

Introducing the Conceptronic Online Tower UPS—the premier power backup solution for your home or office. Featuring an output power factor of 0.9, this UPS delivers superior efficiency and performance. Its ECO Mode enhances energy savings, while compatibility with generators ensures uninterrupted power during extended outages.

The Conceptronic Online Tower UPS comes with HID USB communication for seamless device connectivity and enhanced control and monitoring. For added safety during emergencies, it includes an Emergency Power Off (EPO) port for swift shutdowns in critical situations.

With its sleek, modern tower design, the Conceptronic Online Tower UPS integrates effortlessly into any environment, providing reliable power backup when you need it most.

Specification

Product
Product id	1012555
Brand	Conceptronic
Partnr	ZEUS52ES2K
EAN/UPC code	4015867238189
Power
Input frequency	50/60 Hz
Technical details
Harmonized System (HS) code	8504406090
Compliance certificates	CE, RoHS
Features
UPS topology	Double-conversion (Online)
Output power capacity	2 VA
Output power	1800 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	10 A
Efficiency (ECO mode)	95 procent
Input power factor	0.99
Output power factor	0.9
Crest factor	3:1
ECO mode	Y
Emergency Power Off (EPO)	Y
Power protection features	Overload, Short circuit
Audible alarm(s)	Y
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Country of origin	China
Ports & interfaces
AC outlet types	Type F
AC outlets quantity	4 AC-uitgang(en)
USB port	Y
USB port type	USB Type-B
USB 2.0 ports quantity	1
RS-232 ports	1
Emergency Power Off (EPO) connector	Y
Battery
Battery capacity	9 Ah
Battery voltage	12 V
Battery recharge time	4 uur
Cold start	Y
Battery capacity (Watt-hours)	108 Wh
Design
Form factor	Tower
Product colour	Black
Cooling type	Active
Built-in fan	Y
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 procent
Packaging data
Cables included	Input power cable, RS-232, USB cable
Quick installation guide	Y
Package type	Box
Weight & dimensions
Width	151 mm
Depth	394 mm
Height	225 mm
Weight	17140 g
Logistics data
Master (outer) case width	241 mm
Pallet height	1260 mm
Master (outer) case length	510 mm
Master (outer) case height	313 mm
Pallet width	1200 mm
Master (outer) case weight	17625 g
Pallet length	1000 mm
Quantity per master (outer) case	1 stuk(s)
