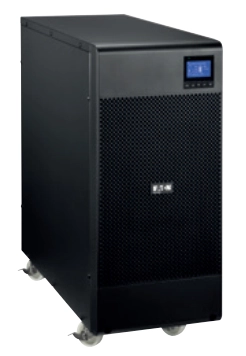

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.

Specification

Product
Product id	657467
Brand	Eaton (v/h MGE)
Partnr	9SX6KI
EAN/UPC code	743172091017
Power
Input frequency	40/70 Hz
Technical details
Sustainability certificates	ENERGY STAR
Features
UPS topology	Double-conversion (Online)
Output power capacity	6 VA
Output power	5400 W
Input operation voltage (min)	120 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output voltage regulation	1 procent
Maximum current	90 A
Efficiency	98 procent
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	2 procent
Input current Total Harmonic Distortion (THD)	5 procent
Noise level	46 dB
Ports & interfaces
AC outlet types	Terminal
Power plug	Terminal
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Typical backup time at half load	15 min
Automatic battery test	Y
Design
Form factor	Tower
Product colour	Black
Display	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	545 mm
Depth	244 mm
Height	542 mm
Weight	65500 g
