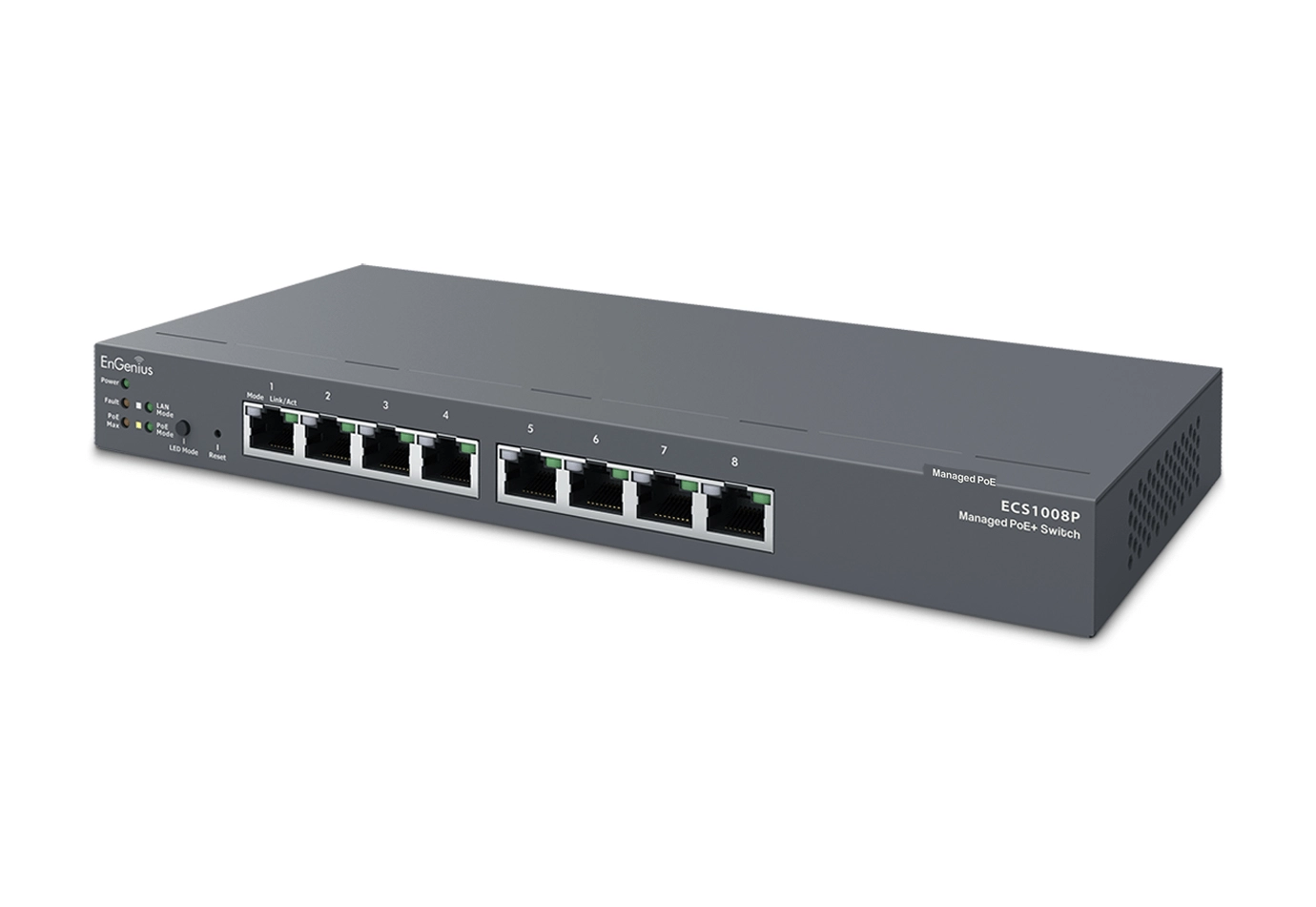

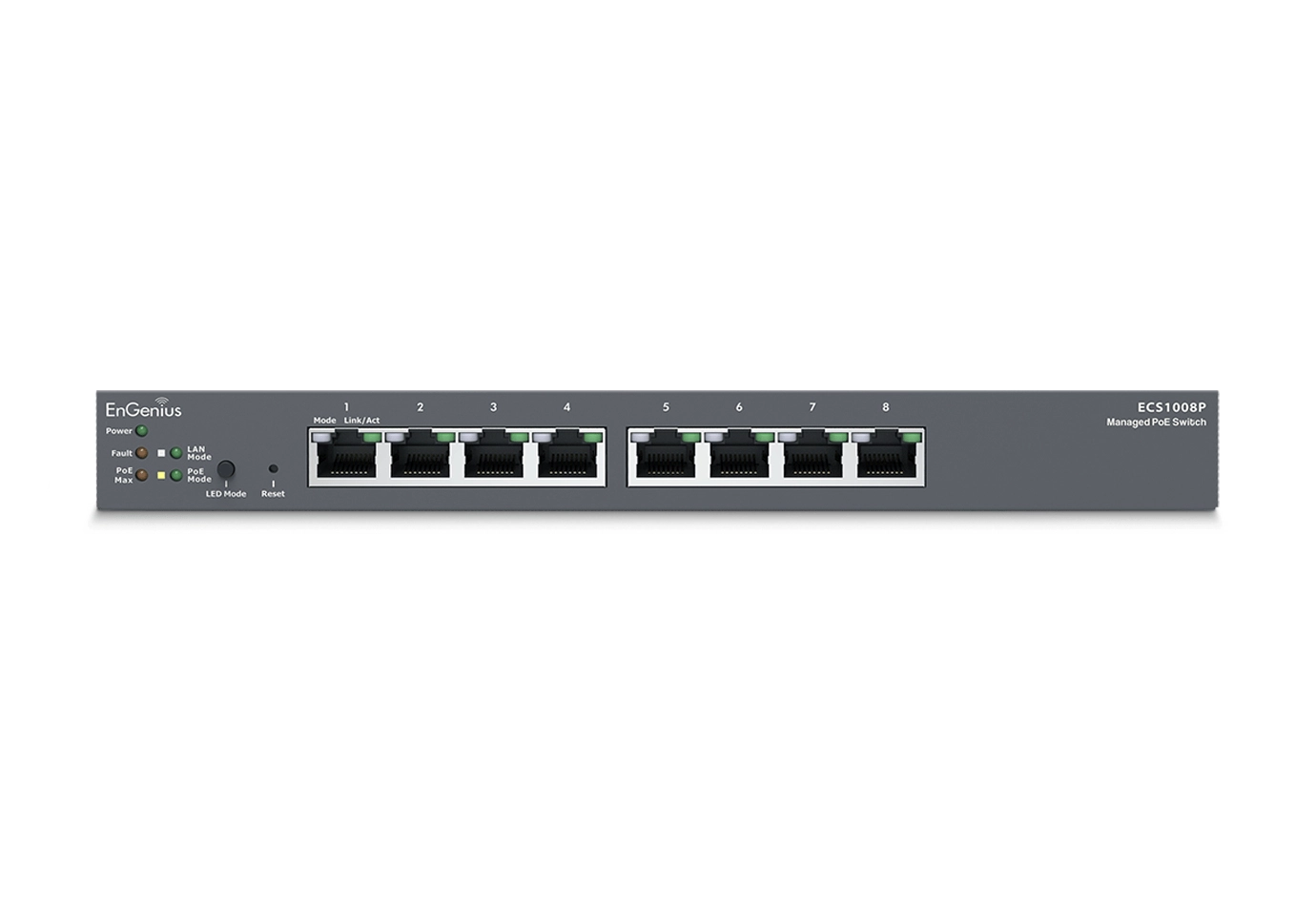

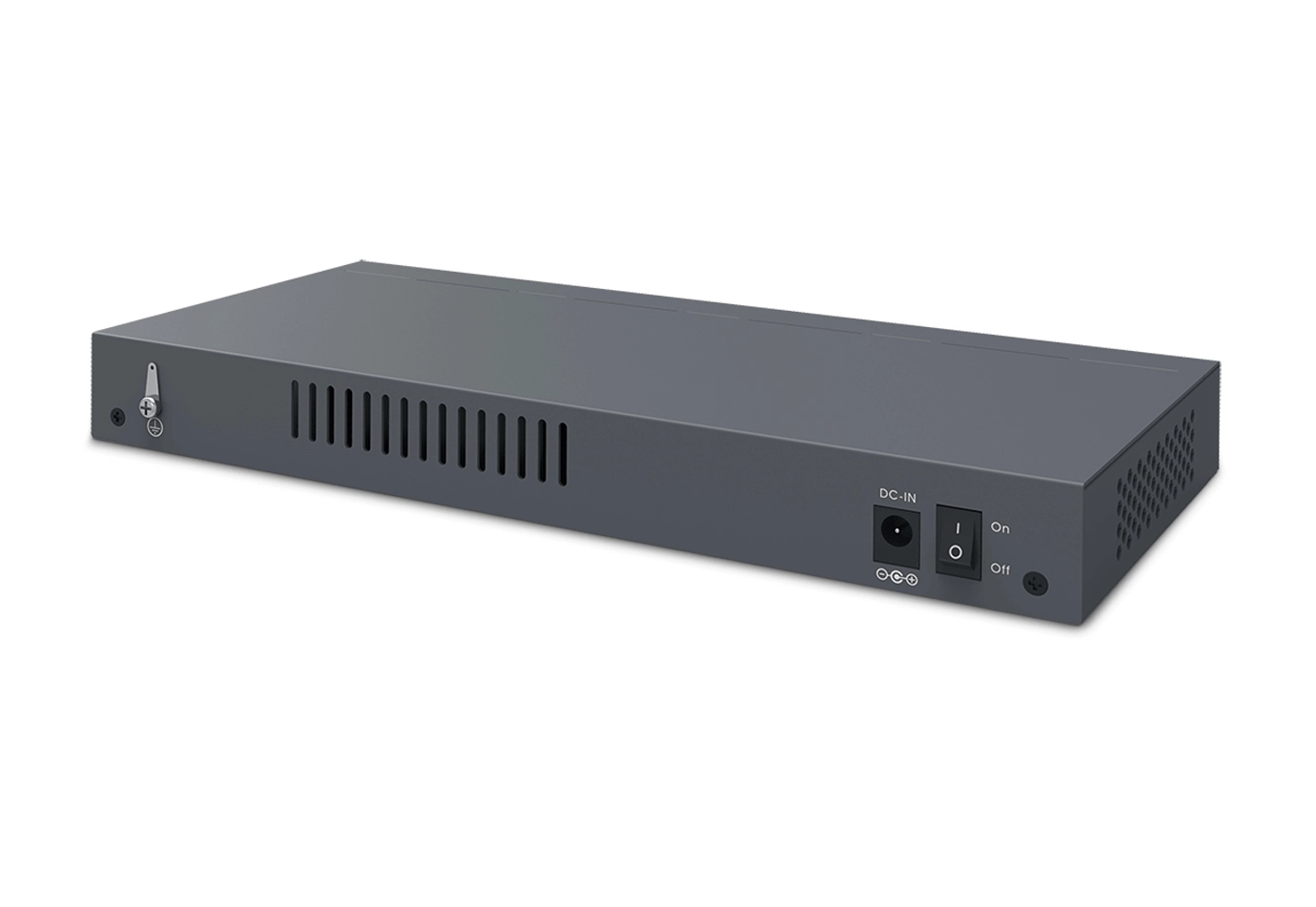

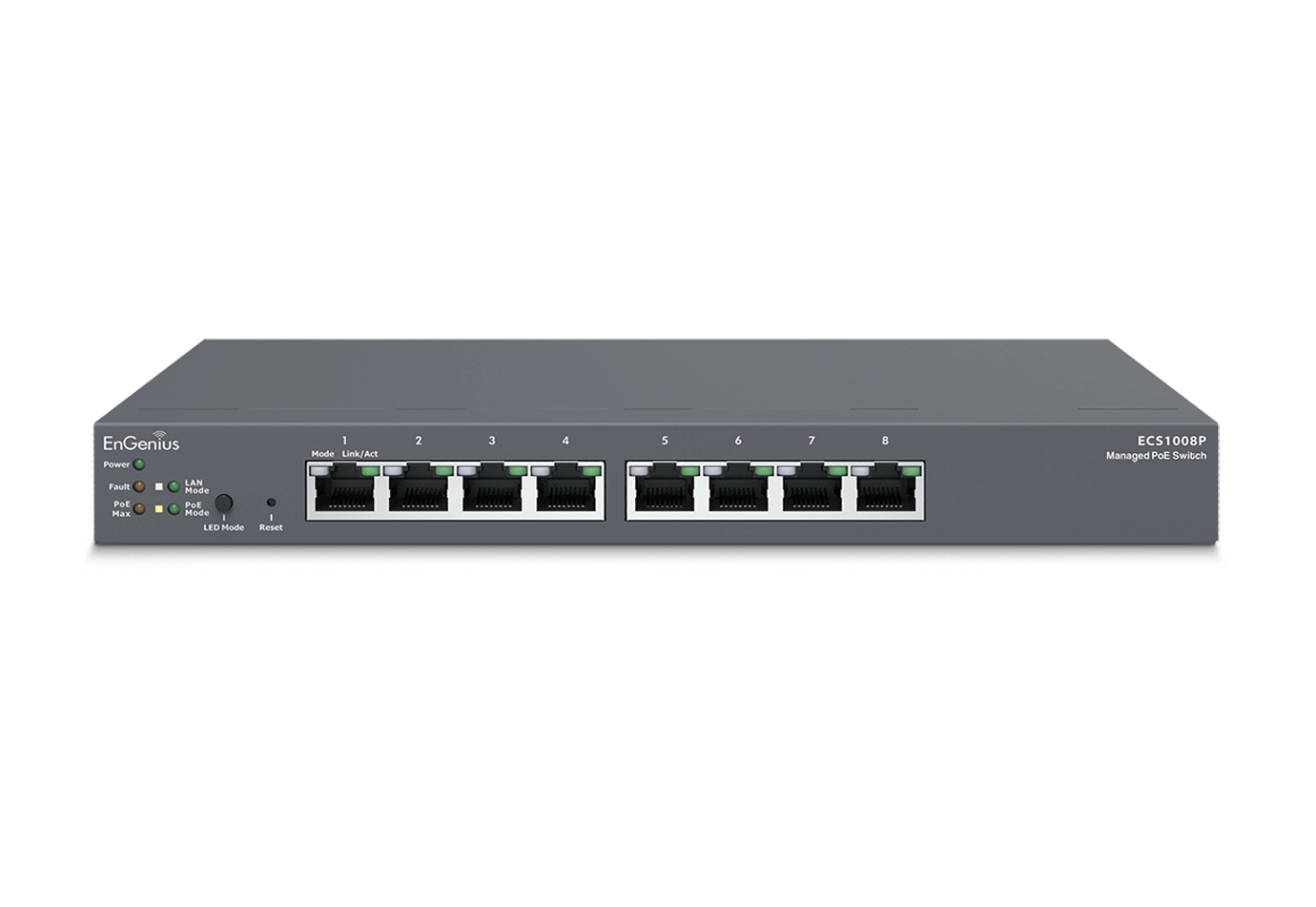

EnGenius Cloud Managed Layer 2+ Switch ECS1008P features 8 Gigabit PoE ports, 55W PoE budget. Its enterprise-class features optimize network efficiency and offer robust security with Voice-VLAN support. The switch also extends PoE Ethernet cable deployment range up to 250 meters, auto-reboots PoE power for failed camera, and provides a steady supply of PoE power during switch upgrades. Ideal for cost-conscious SMBs.

Specification

Product
Product id	987840
Brand	EnGenius
Partnr	ECS1008P
EAN/UPC code	4713361935039
Data transmission
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Static route	Y
Number of static routes	63
Number of IP interfaces	20
Jumbo frames support	Y
Jumbo frames	9000
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
Flow control support	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
System event log	Y
Protocols
Management protocols	SNMP v1/v2c/v3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Authentication type	IEEE 802.1x, RADIUS
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Authentication	Port-based authentication
Weight & dimensions
Width	240 mm
Depth	105 mm
Height	27 mm
Weight	1500 g
Packaging data
Cables included	AC
Quick start guide	Y
User guide	Y
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Multicast features
Multicast support	Y
Multicast features	Multicast forwarding
Number of multicast groups filtered	256
Multicast Listener Discovery (MLD) snooping	v1
Design
Rack mounting	N
Product colour	Black
LED indicators	Y
Wall mountable	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Internal memory	256 MB
Flash memory	32 MB
Firmware upgradeable	Y
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	55 W
