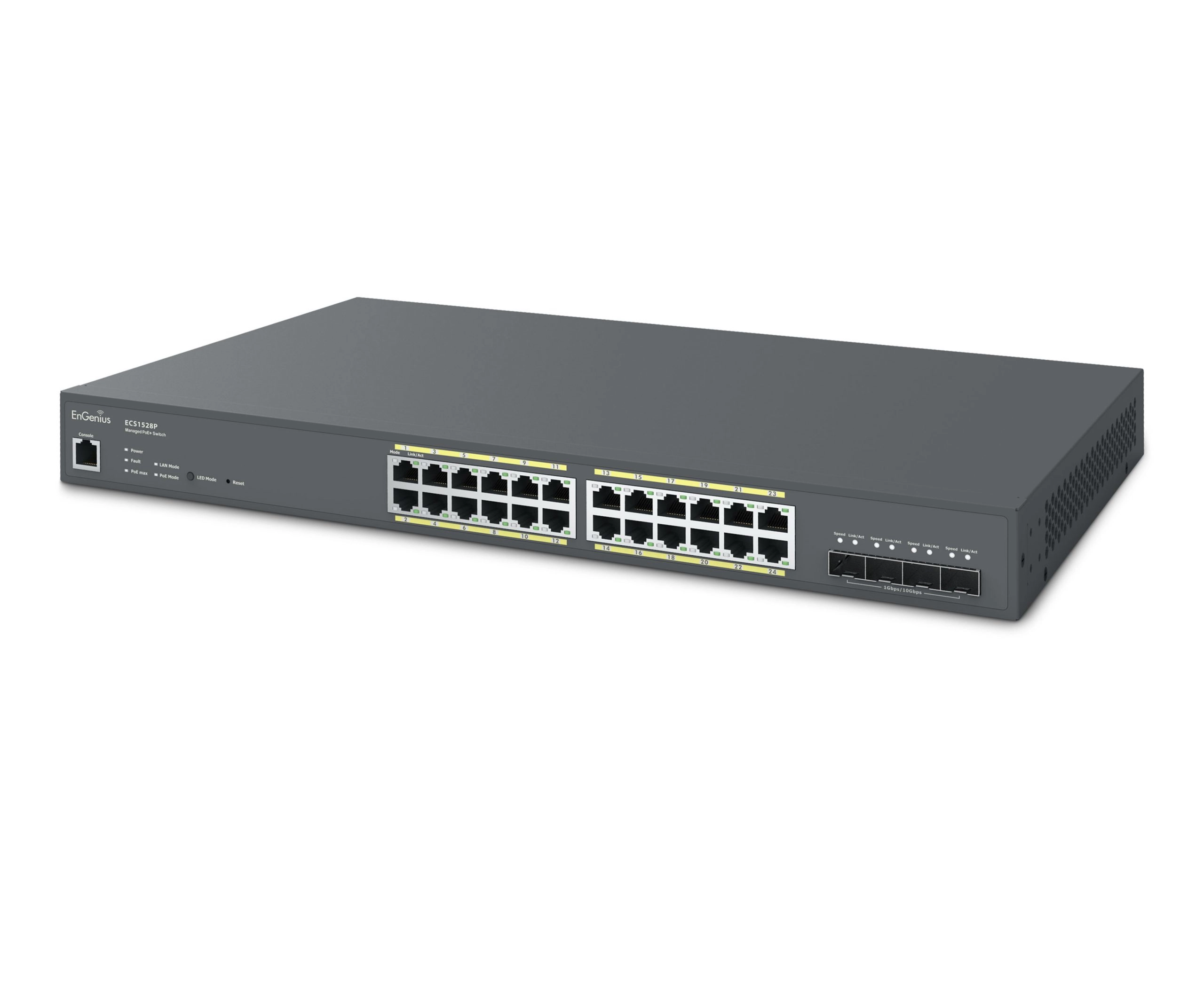

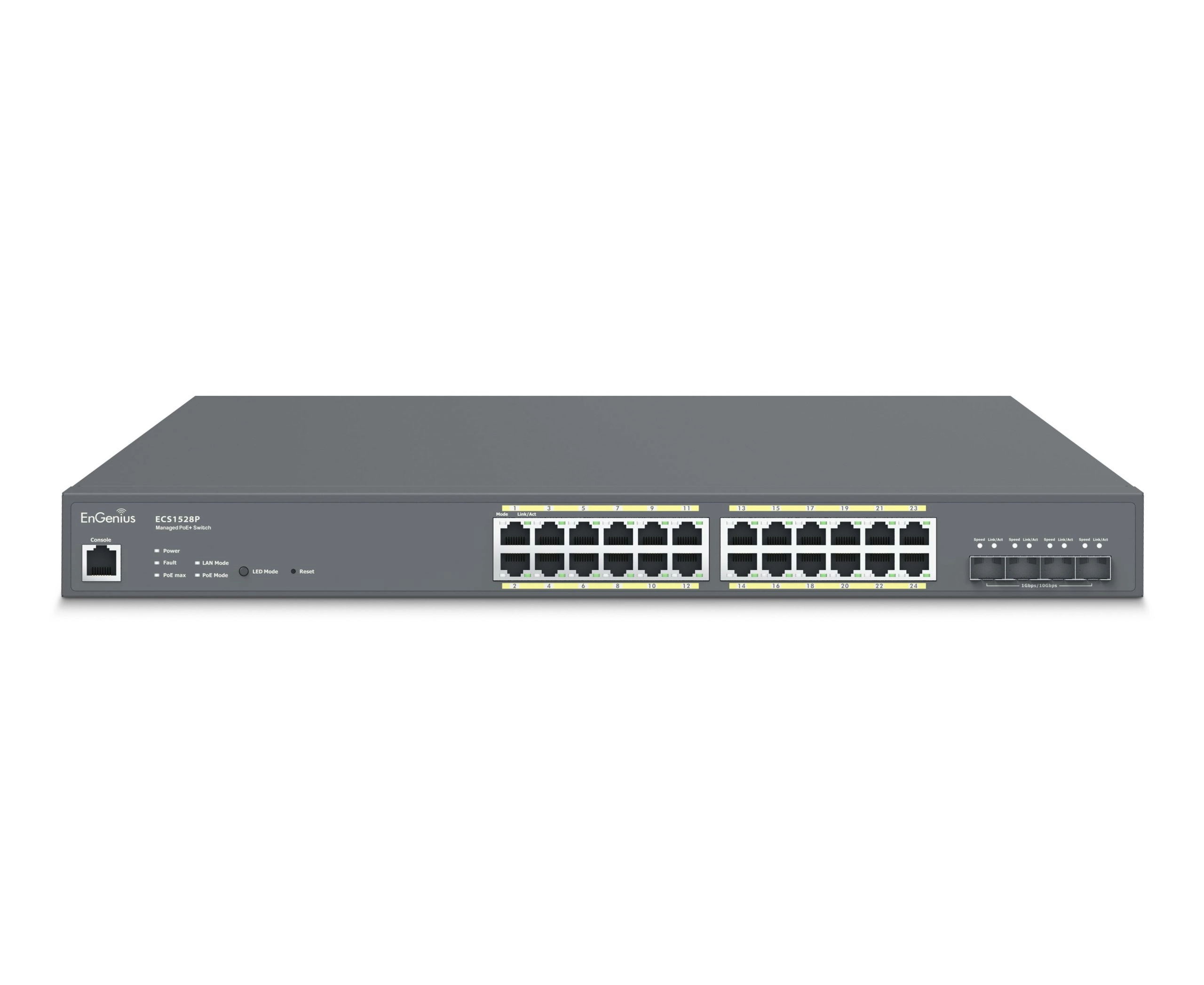

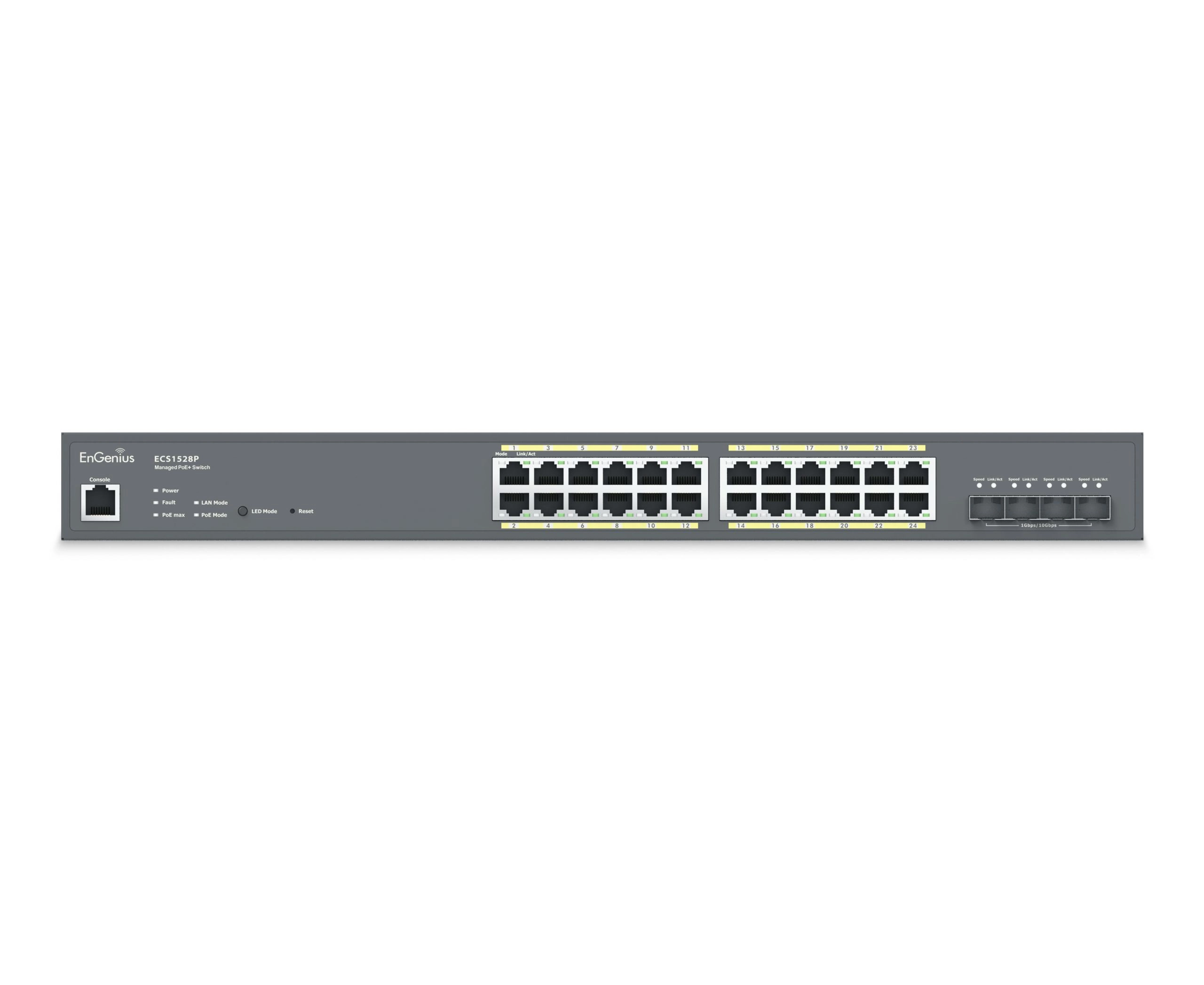

EnGenius Cloud Managed Layer 2+ Switch, ECS1528T, is a reliable and easy-to-manage 24-Port Gigabit and 4-Port SFP+ uplink switch that provides high-speed connectivity for your network devices. Its zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.

Specification

Product
Product id	987843
Brand	EnGenius
Partnr	ECS1528P
EAN/UPC code	4713361934568
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Static route	Y
Number of static routes	192
Jumbo frames support	Y
Jumbo frames	10000
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
IPv4 routes	63
Flow control support	Y
Spanning tree protocol	Y
Link aggregation	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VLAN support	Y
Virtual LAN features	Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes	21
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
ARP inspection	Y
System event log	Y
Protocols
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Authentication type	RADIUS
Security algorithms	SNMP, SNMPv2, SNMPv3
SSH/SSL support	Y
Weight & dimensions
Width	440 mm
Depth	260 mm
Height	44 mm
Weight	3010 g
Packaging data
Cables included	AC, LAN (RJ-45)
Rack mount kit	Y
Package weight	3810 g
Manual	Y
Package width	532 mm
Package depth	346 mm
Package height	101 mm
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Multicast features
Multicast support	Y
Multicast MAC address table	256 entries
Design
Rack mounting	Y
Product colour	Grey
LED indicators	Fault, LAN, PoE, Power
Certification	CE, FCC, IC
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Memory type	SDRAM
Internal memory	512 MB
Flash memory	128 MB
Firmware upgradeable	Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	240 W
