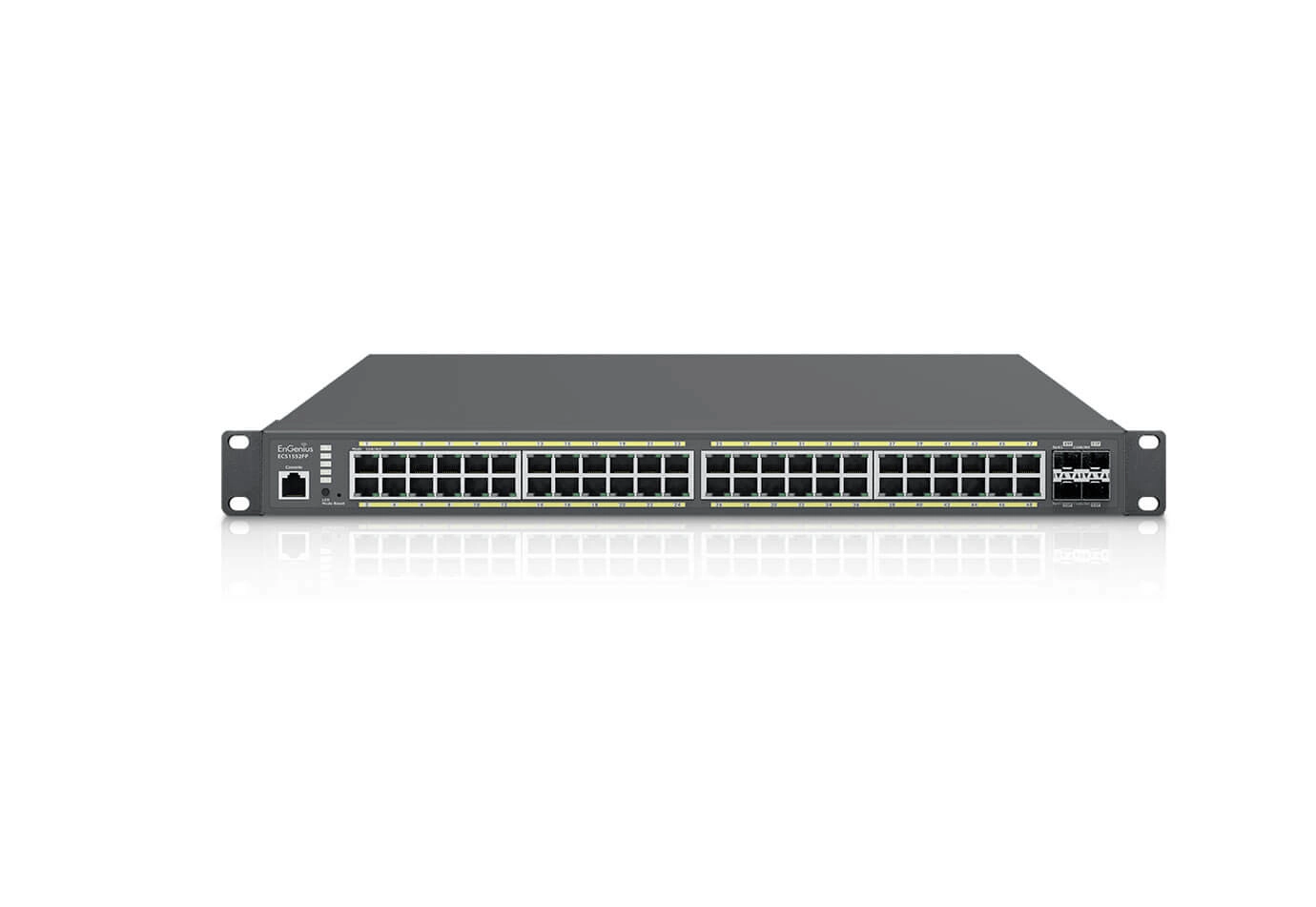

EnGenius Cloud Managed Layer 2+ Switch ECS1552FP offers 48 Gigabit PoE+ ports, 4 10G SFP+ uplink ports, and a 740W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs

Specification

Product
Product id	987846
Brand	EnGenius
Partnr	ECS1552FP
EAN/UPC code	4713361965008
Warranty (months)	2 Years
Data transmission
MAC address table	32000 entries
Switching capacity	176 Gbit/s
Number of queues	8
Static route	Y
Number of static routes	63
Number of IP interfaces	20
Jumbo frames support	Y
Jumbo frames	9000
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support	Y
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
Flow control support	Y
Spanning tree protocol	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
System event log	Y
Protocols
Management protocols	SNMP v1/v2c/v3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP+ module slots quantity	4
Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Queue scheduling algorithms	Strict Priority Queue (SPQ), SP, WRR+SP, Weighted Round Robin (WRR)
Authentication type	IEEE 802.1x, RADIUS
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Authentication	Port-based authentication
Weight & dimensions
Width	440 mm
Depth	310 mm
Height	44 mm
Weight	5900 g
Packaging data
Cables included	AC
Quick start guide	Y
Rack mount kit	Y
Power
Power supply included	Y
Redundant power supply (RPS) support	N
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Multicast features
Multicast support	Y
Multicast features	Multicast forwarding
Number of multicast groups filtered	256
Multicast Listener Discovery (MLD) snooping	v1
Design
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Internal memory	512 MB
Flash memory	128 MB
Firmware upgradeable	Y
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	740 W
