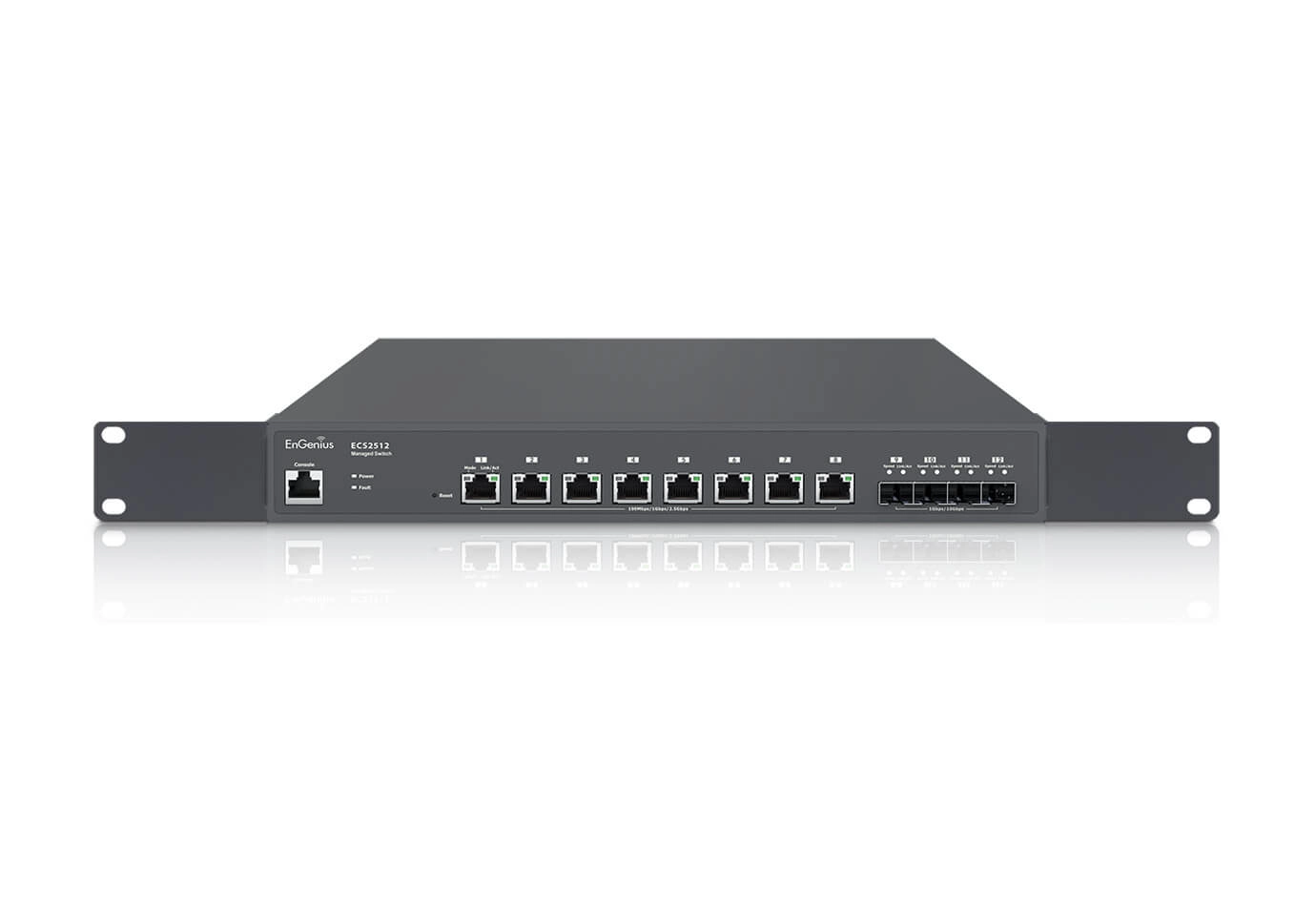

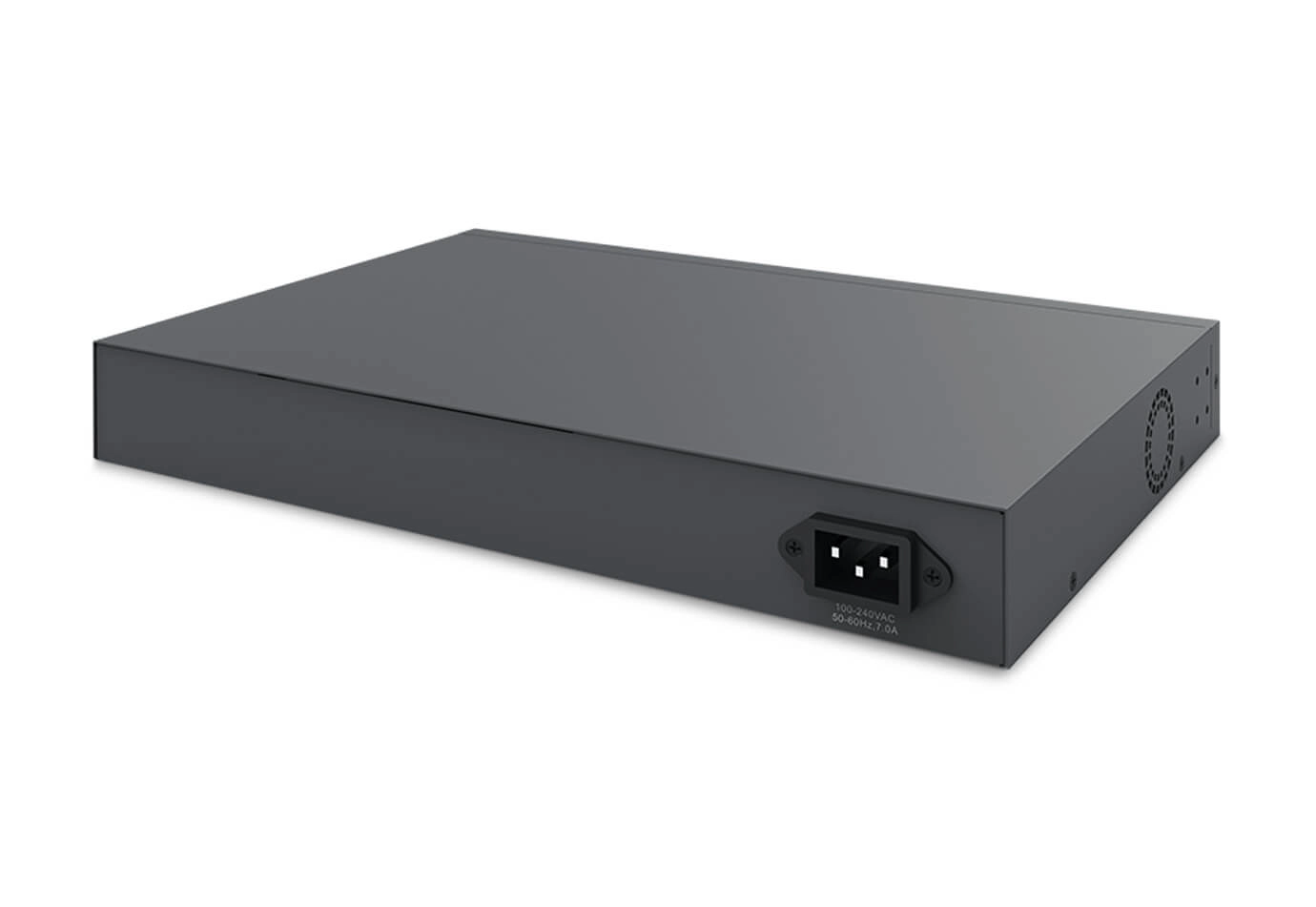

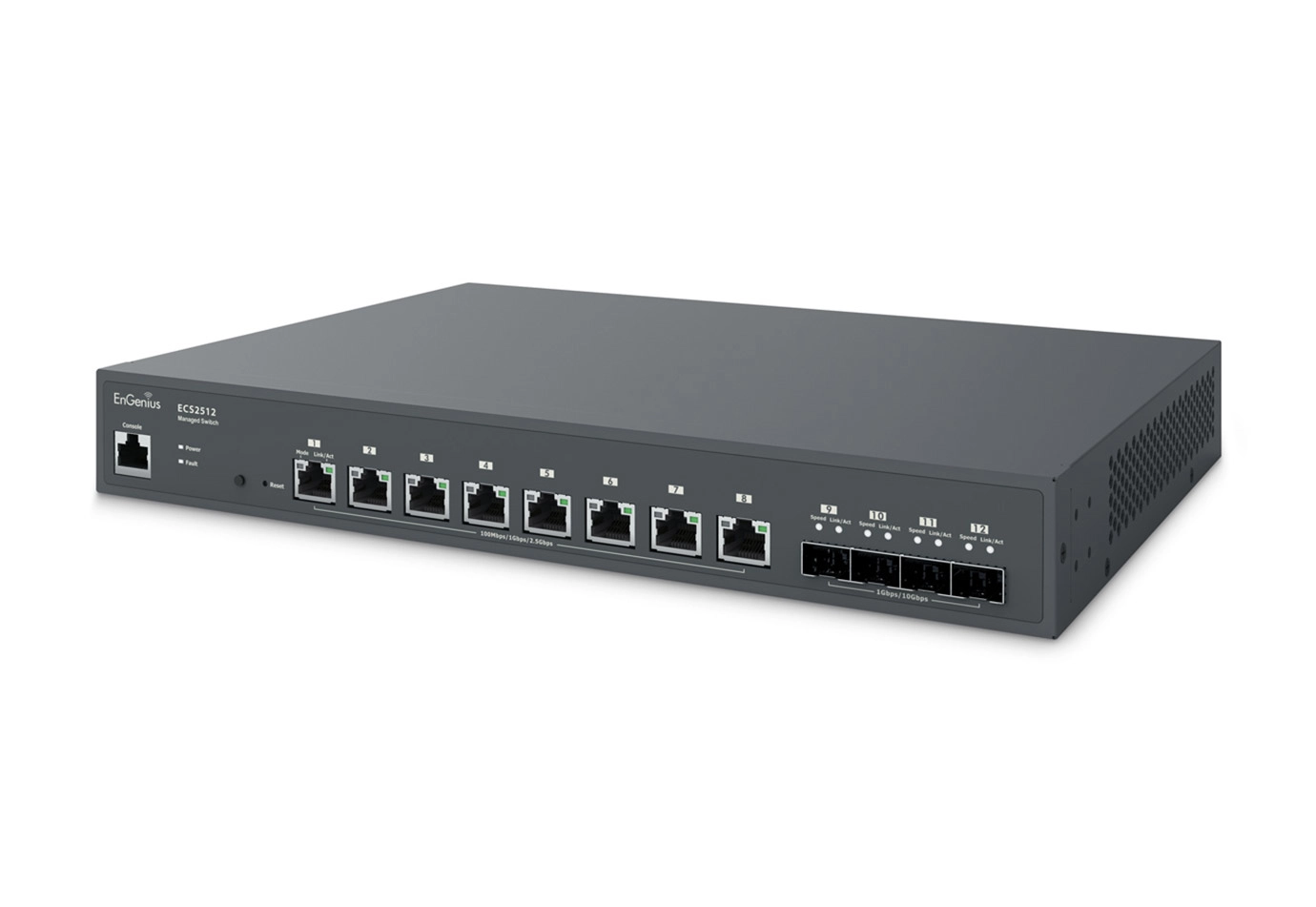

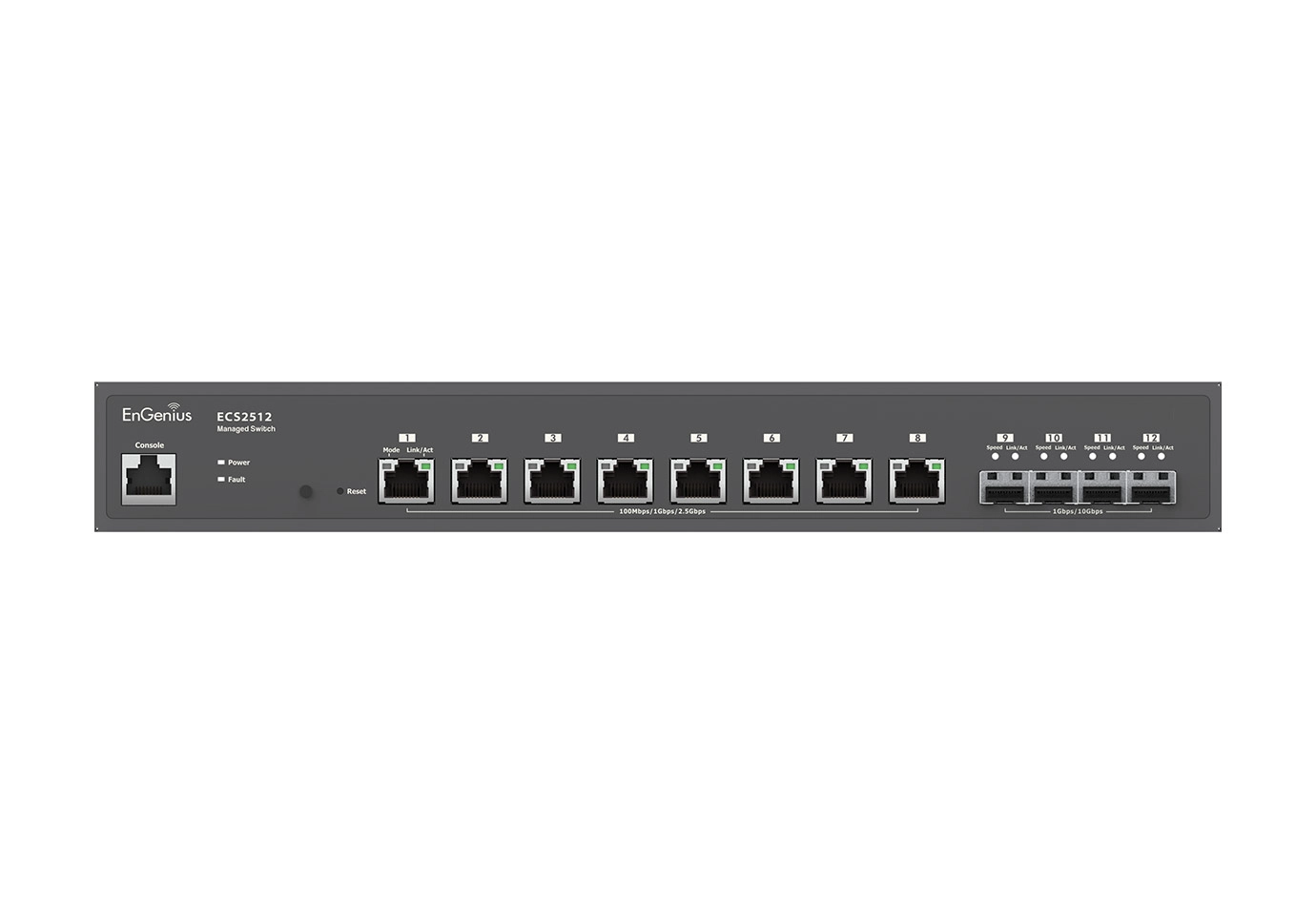

EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2512, provides SMBs with an easy-to-use and cost-effective network solution. With its 8-Port 2.5G and 4-Port 10G SFP+ uplink, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.

Specification

Product
Product id	987849
Brand	EnGenius
Partnr	ECS2512
EAN/UPC code	4713361935183
Warranty (months)	2 Years
Data transmission
MAC address table	16000 entries
Switching capacity	120 Gbit/s
Jumbo frames support	Y
Jumbo frames	9000
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Ethernet LAN data rates	100, 1000, 2500 Mbit/s
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Weight & dimensions
Width	330 mm
Depth	230 mm
Height	44 mm
Weight	1900 g
Packaging data
Cables included	AC, LAN (RJ-45)
Quick start guide	Y
Rack mount kit	Y
Power
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Design
Rack mounting	Y
Product colour	Black
LED indicators	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Memory type	SDRAM
Internal memory	512 MB
Flash memory	128 MB
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
