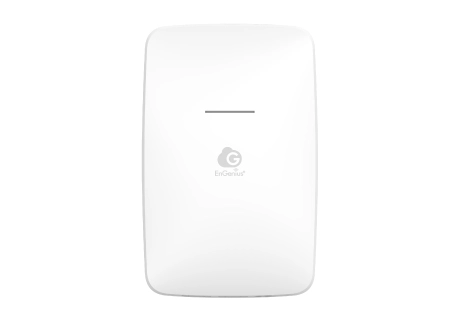

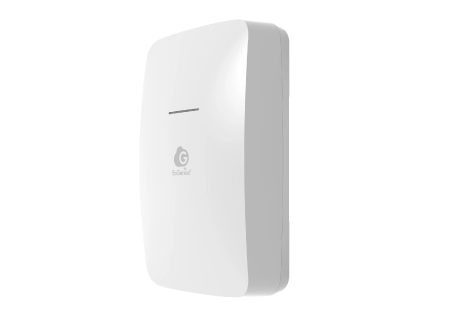

Cloud Managed 11ac Wave 2 Wireless Indoor Access Point
Wall-Plate AP Supports High-Bandwidth Business Applications

ECW115 11ac Wave 2 Cloud Managed Indoor Wireless Access Point delivers blazing-fast 1.3 Gbps speeds and a higher user capacity. It supercharges performance up to 30% faster than traditional 2x2 APs. This dual-band AP improves connection reliability for exceptional next-generation, business-class Wi-Fi.

Specification

Product
Product id	987855
Brand	EnGenius
Partnr	ECW115
EAN/UPC code	4713361935312
Warranty (months)	2 Year
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	400 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	100, 1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
MIMO	Y
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 512-QAM, BPSK, CCK, QPSK
Security
Security algorithms	HTTPS, SSH, SSID, WPA2-Enterprise, WPA2-PSK
Ports & interfaces

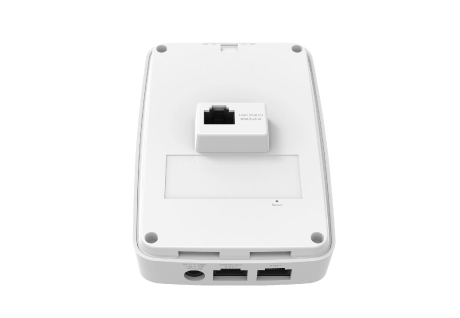

Ethernet LAN (RJ-45) ports	3
Power
Power over Ethernet (PoE)	Y
AC input voltage	12 V
Input current	1 A
Power consumption (max)	11.9 W
Design
Placement	Ceiling, Table, Wall
Product colour	White
Reset button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Operational conditions
Operating relative humidity (H-H)	0 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	0 - 90 procent
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	140 mm
Depth	90 mm
Height	40 mm
Weight	225 g
