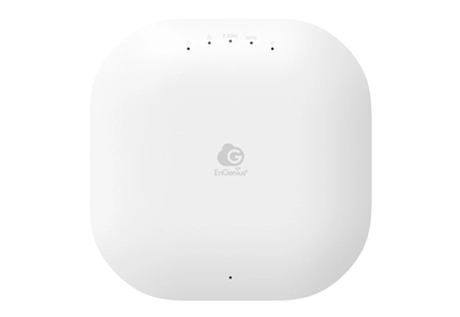

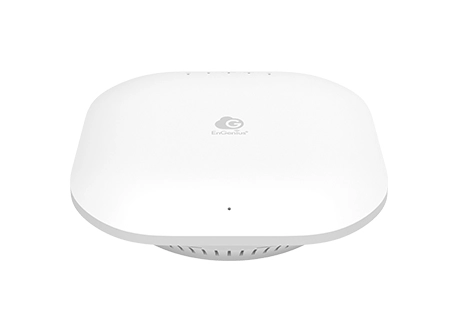

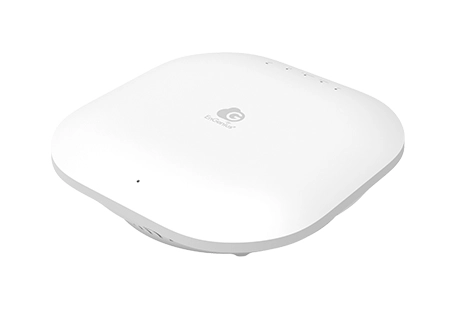

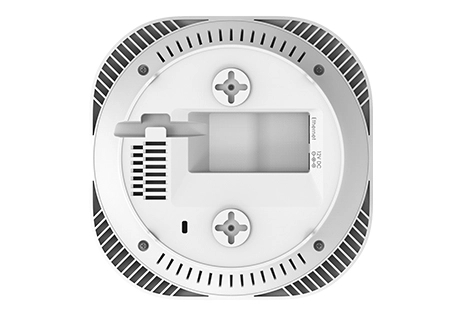

EnGenius Cloud Managed 11ac Wave 2 Indoor Access Point ECW120 delivers supercharged speeds up to 867 Mbps (5 GHz) & 400 Mbps (2.4 GHz), Wave 2 MU-MIMO, accommodating more clients, and improved connections. Featuring remote management, Gigabit Ethernet PoE port, quick-scan device registration, and EnGenius Cloud App for unlimited AP management. Mesh Wireless Support streamlines setup and optimizes signal quality.

Specification

Product
Product id	987856
Brand	EnGenius
Partnr	ECW120
EAN/UPC code	4711488350056
Warranty (months)	2 Year
Packaging data
AC adapter included	Y
Mounting kit	Y
Quick start guide	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	400 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Y
Transmitting power	23 dBmW
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-AES, WPA-EAP, WPA-TKIP, WPA2
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Protocols
Management protocols	SNMP
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
Power consumption (max)	12 W
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Y
Cable lock slot type	Kensington
Reset button	Y
LED indicators	Y
Certification	FCC, CE, IC
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	161.5 mm
Depth	161.5 mm
Height	41.5 mm
Weight	362.8 g
