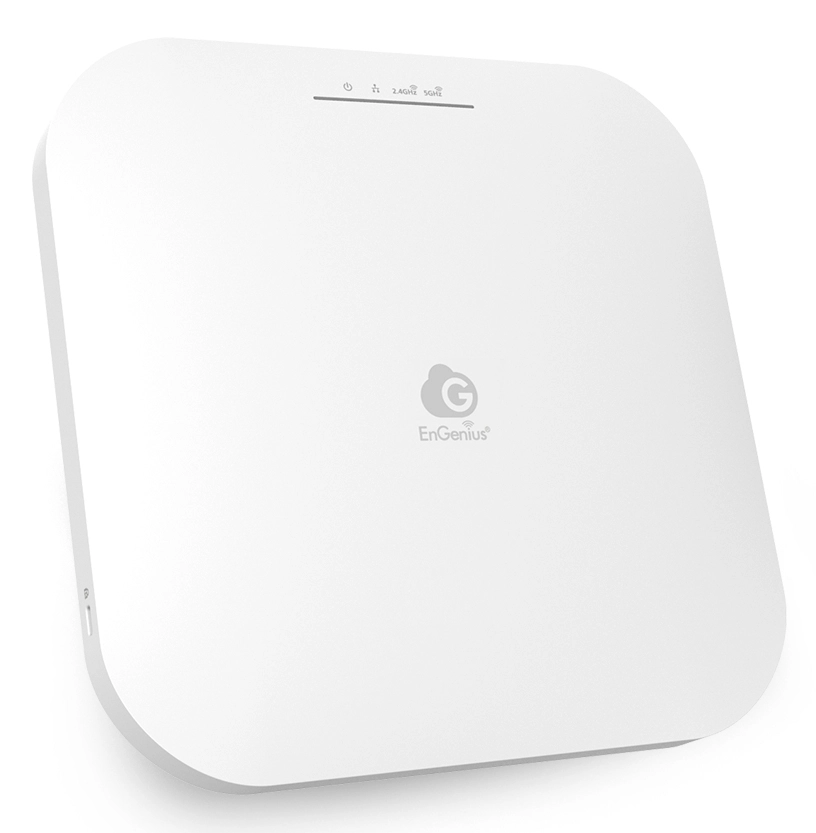

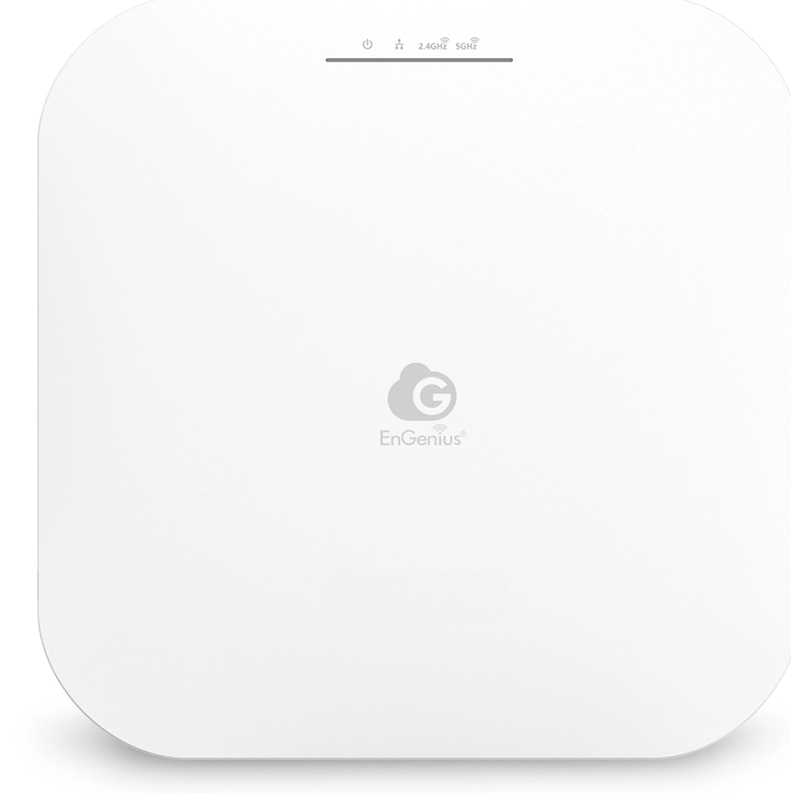

EnGenius Cloud Managed Wi-Fi 6 4X4 Access Point ECW212L is a cost-effective model designed for small businesses. It support dual-concurrent 802.11ax architecture, delivering speeds up to 1, 148 Mbps on the 2.4GHz and 2, 400 Mbps on the 5 GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.

Specification

Product
Product id	987860
Brand	EnGenius
Partnr	ECW212L
EAN/UPC code	4711488350421
Packaging data
Mounting kit	Y
Features
2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate (2.4 GHz)	1200 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Number of users	128 gebruiker(s)
Bluetooth	N
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Y
Wi-Fi roaming	Y
Fast roaming	Y
Spatial streams	4 x 4
VLAN support	Y
Virtual LAN features	Tagged VLAN
Band steering	Y
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	23 dBmW
Security
Security algorithms	WPA2-PSK, WPA3-PSK
Remote Authentication Dial-In User Service (RADIUS)	Y
Protocols
DHCP client	Y
Ports & interfaces

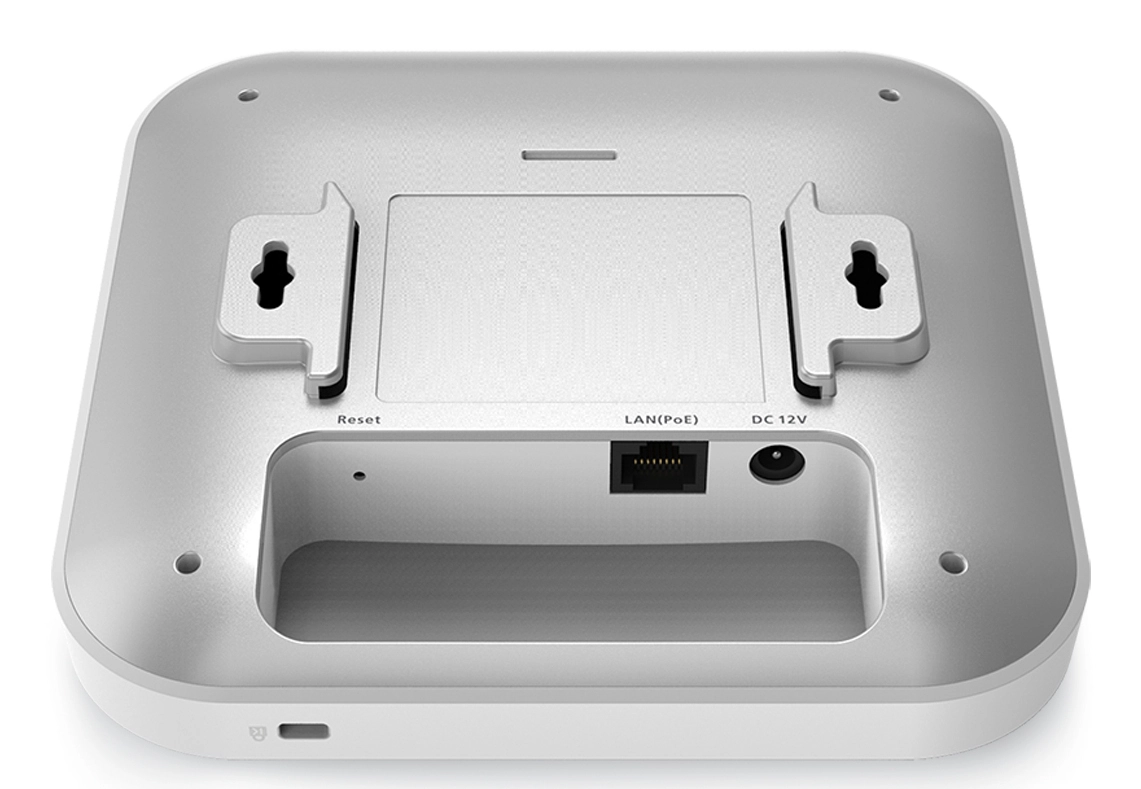

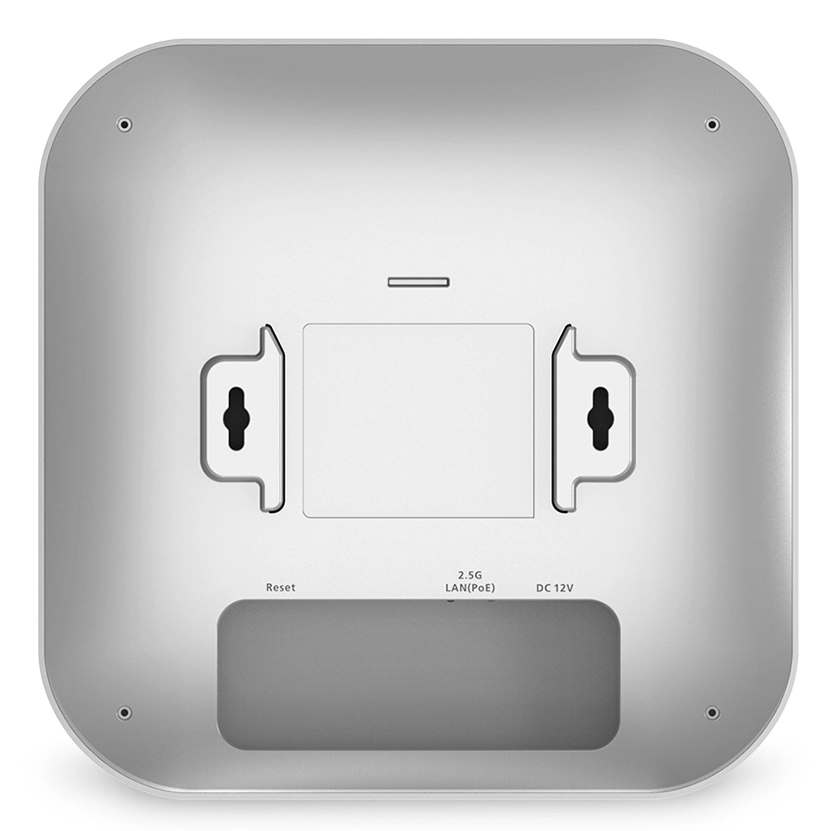

Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Input current	2 A
Power consumption (max)	17 W
Design
Placement	Ceiling, Wall
Product colour	White
LED indicators	PoE, Power
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	8
Antenna gain level (max)	5 dBi
Operational conditions
Operating relative humidity (H-H)	0 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	0 - 90 procent
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA
Weight & dimensions
Width	205 mm
Depth	205 mm
Height	33 mm
Weight	570 g
