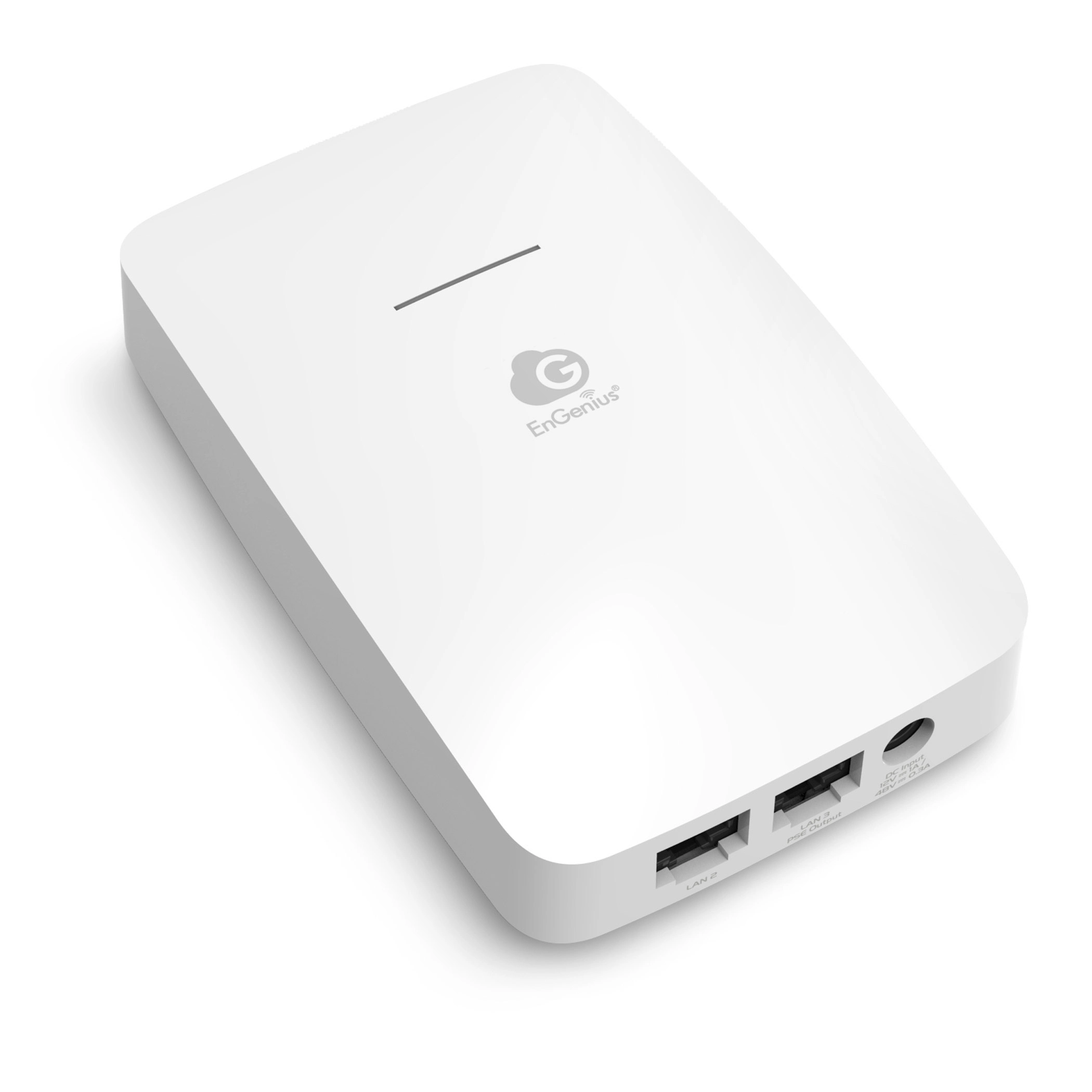

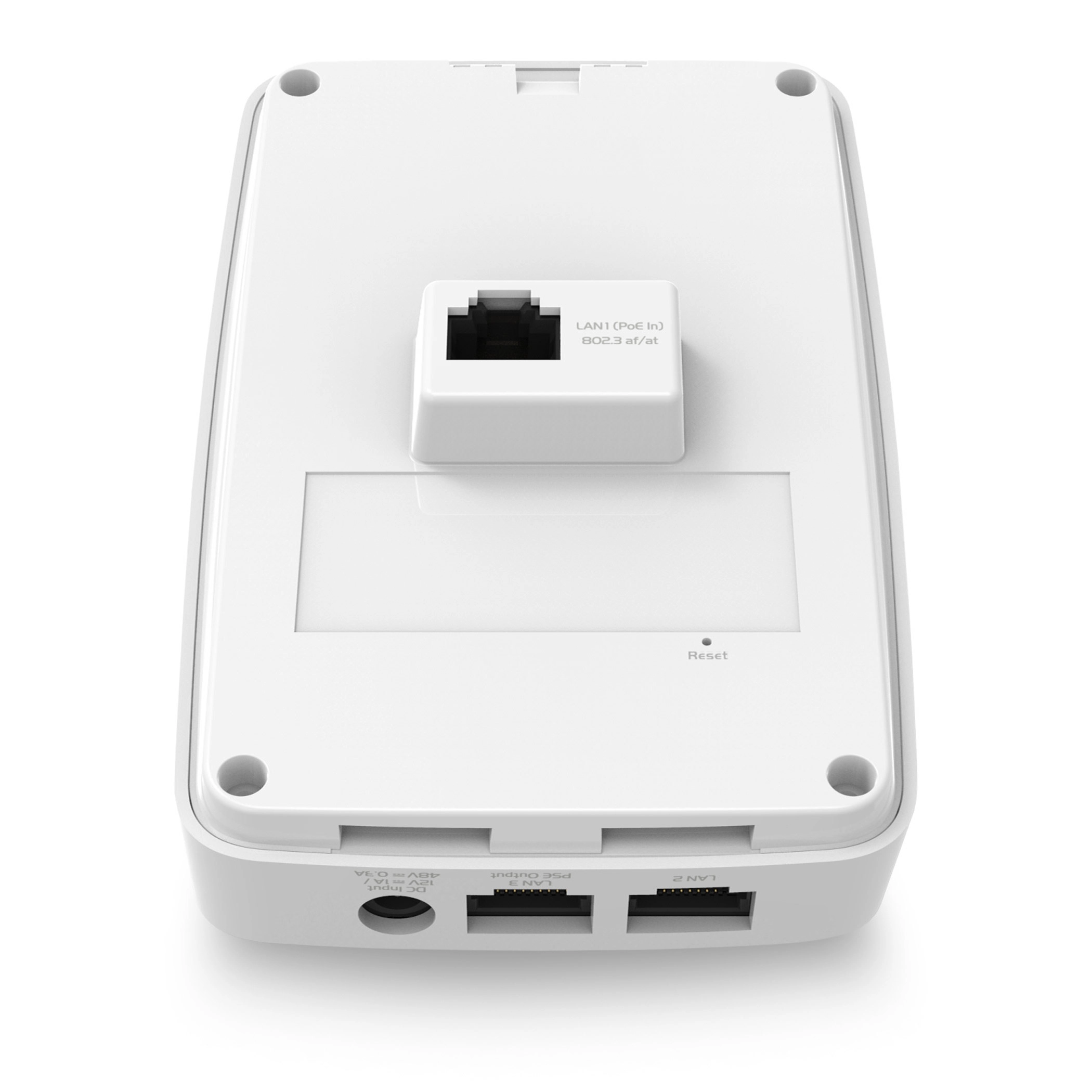

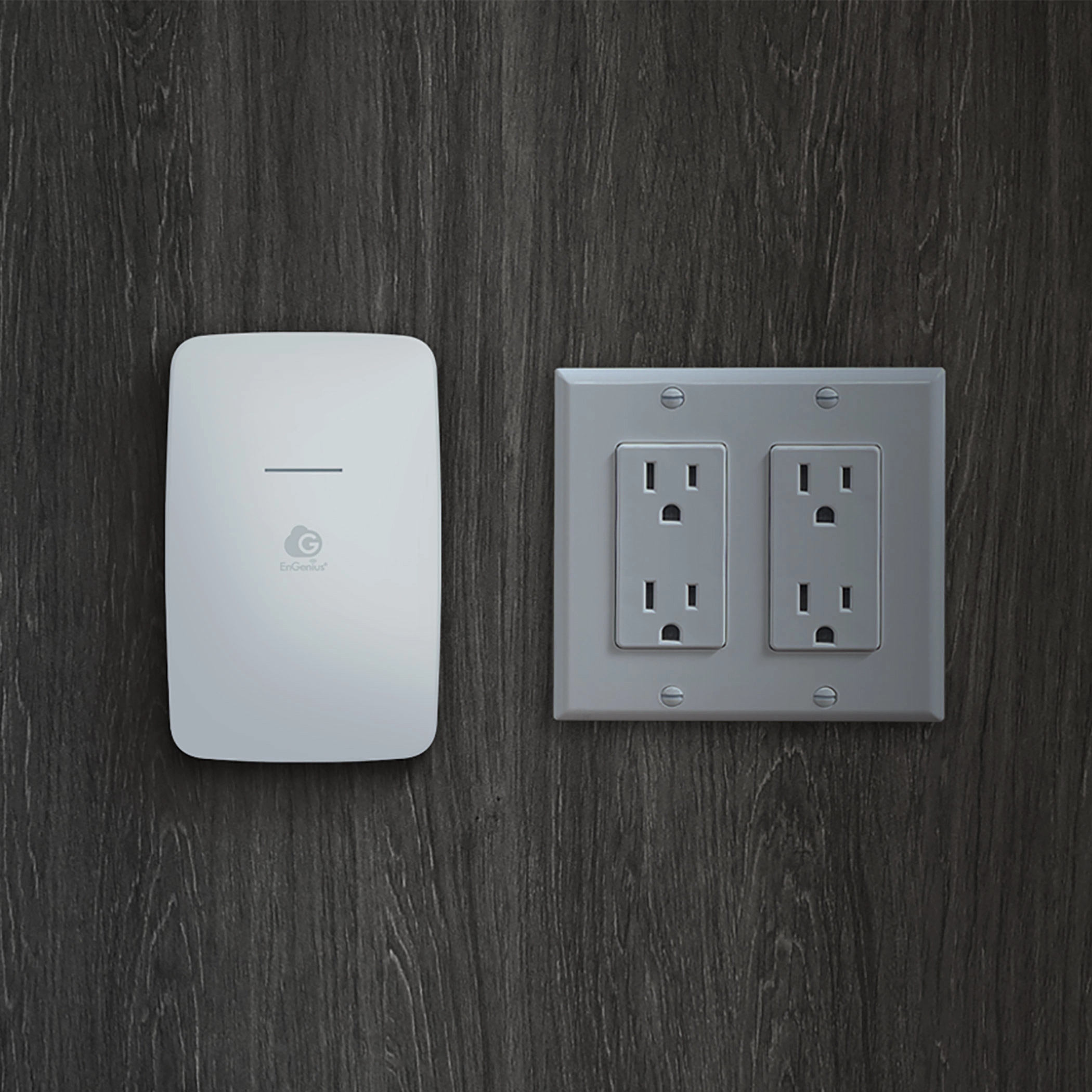

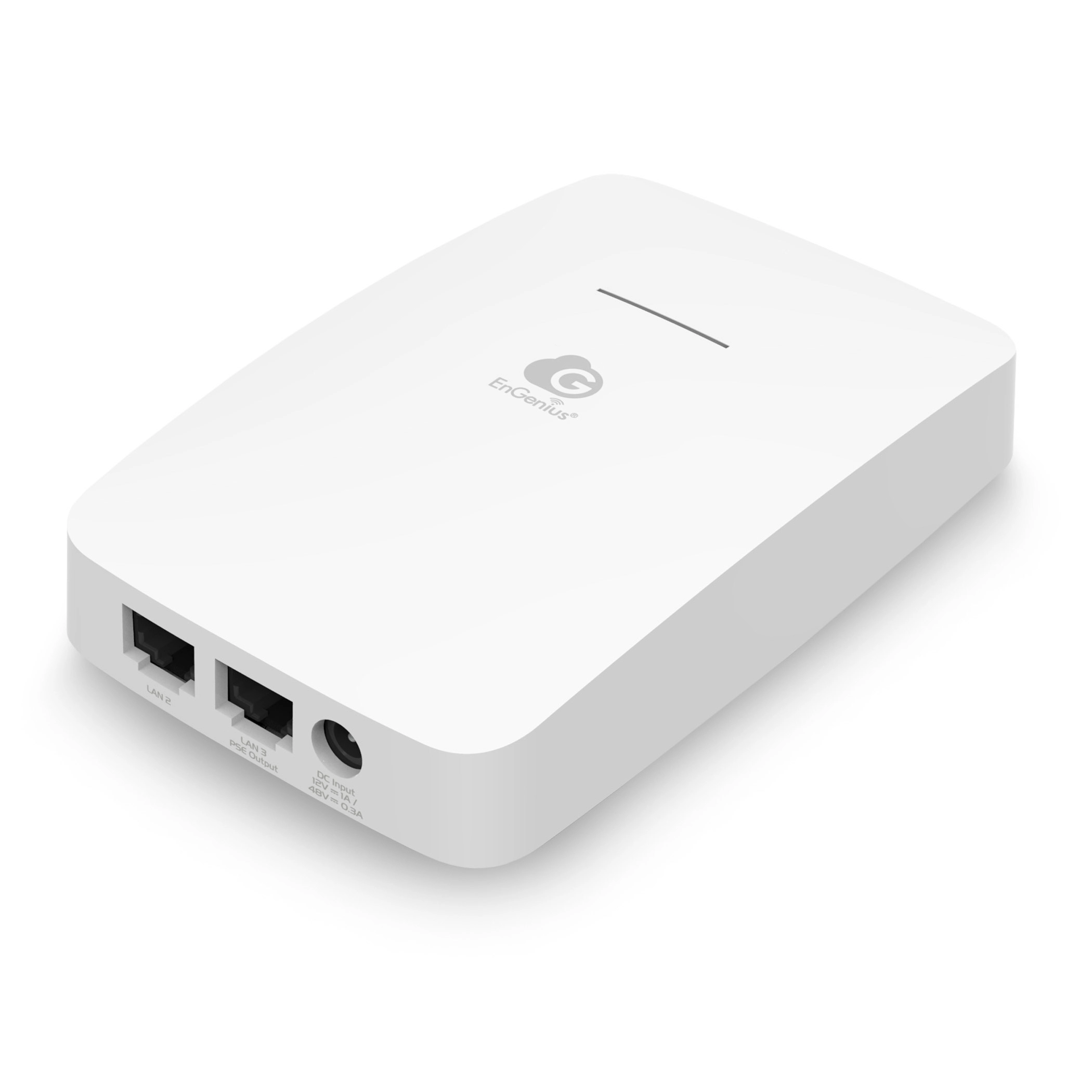

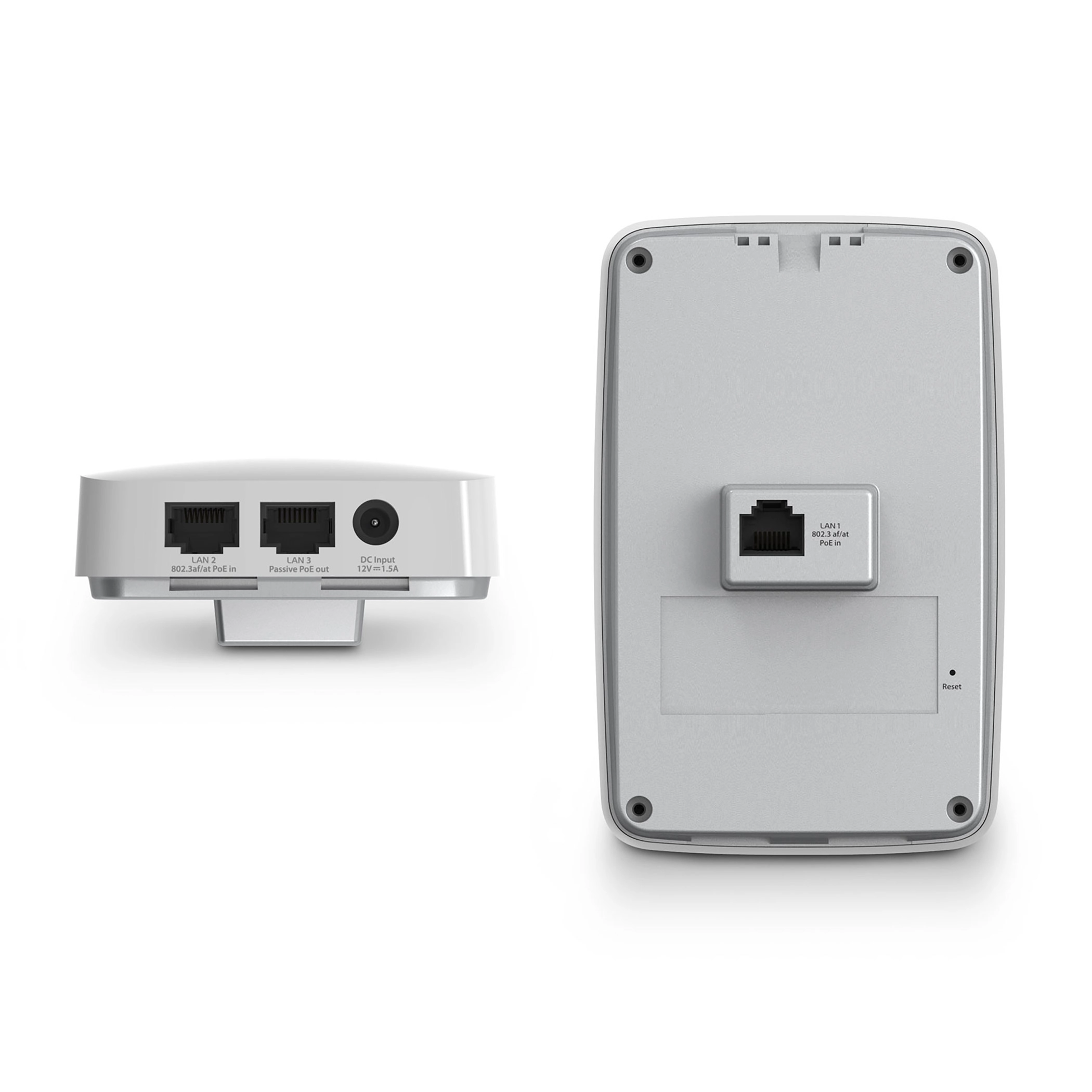

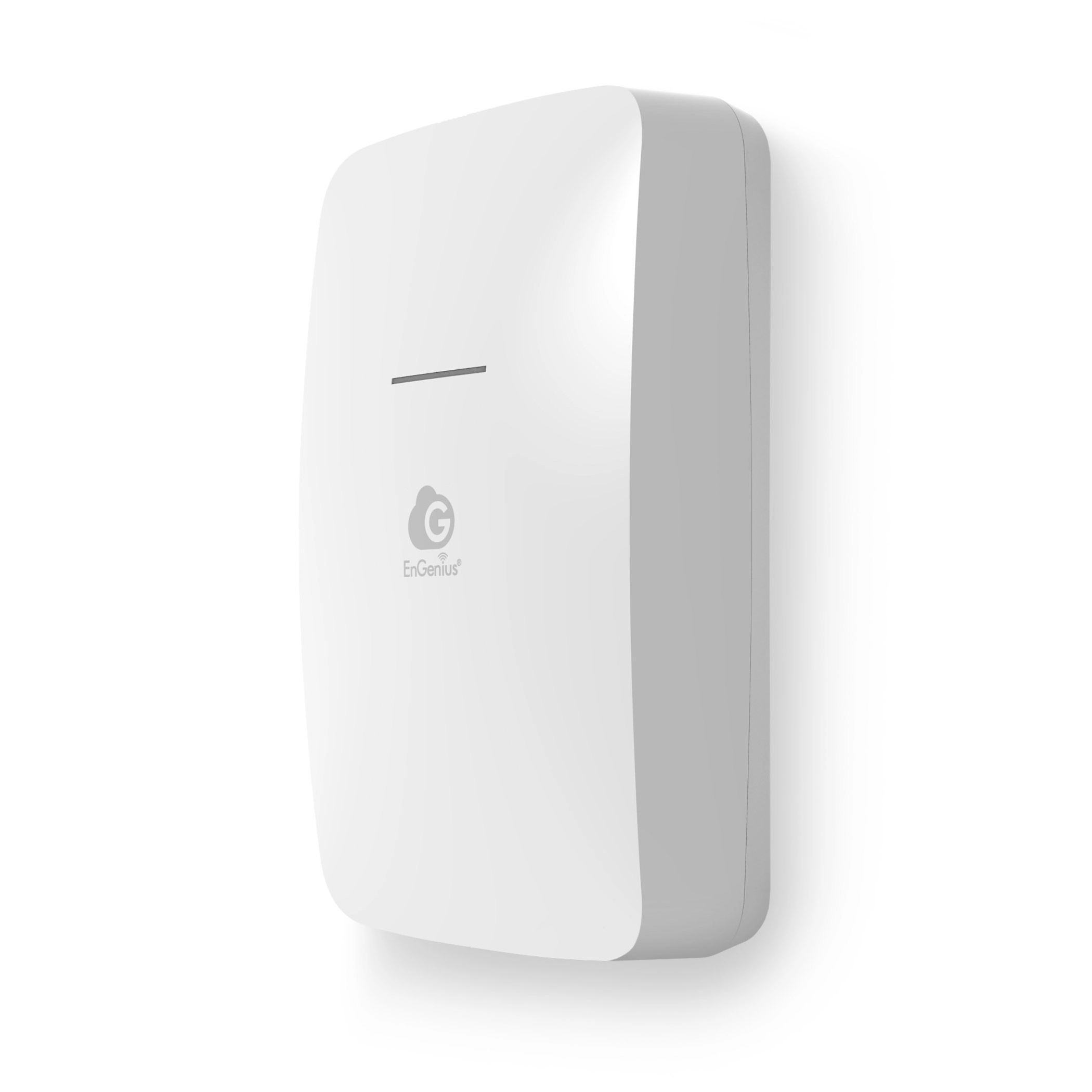

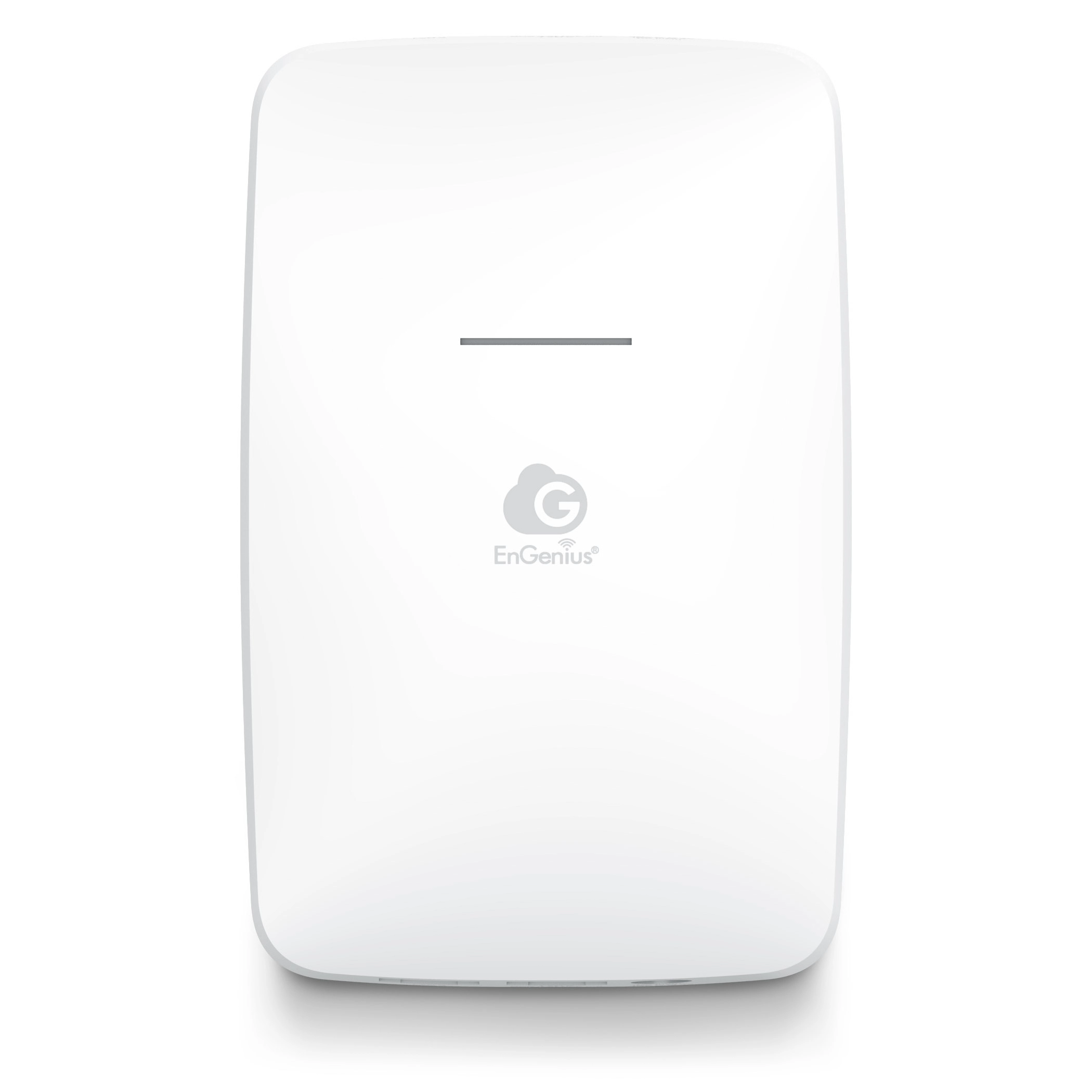

EnGenius Cloud Managed Wi-Fi 6 Wall-Plate Access Point ECW215 delivers throughput speeds up to 1, 200 Mbps (5 GHz) & 574 Mbps (2.4 GHz), and equips with 2 GE-port supporting 802.3af/at PoE-in. Featuring remote management, Gigabit Ethernet PoE port, 12/48V DC input, quick-scan device registration, and EnGenius Cloud App for unlimited AP management. Mesh Wireless Support streamlines setup and optimizes signal quality.

Specification

Product
Product id	987861
Brand	EnGenius
Partnr	ECW215
EAN/UPC code	4713361935961
Packaging data
Package width	136.5 mm
Package depth	187.3 mm
Package height	69.9 mm
Package weight	390 g
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1200 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security
Security algorithms	WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Input current	1.5 A
Power consumption (max)	14.2 W
Design
Placement	Wall
Product colour	White
Reset button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Performance
Built-in processor	Y
Processor frequency	1000 MHz
Operational conditions
Operating relative humidity (H-H)	0 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 80 °C
Storage relative humidity (H-H)	0 - 90 procent
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	90 mm
Depth	140 mm
Height	40 mm
Weight	363 g
