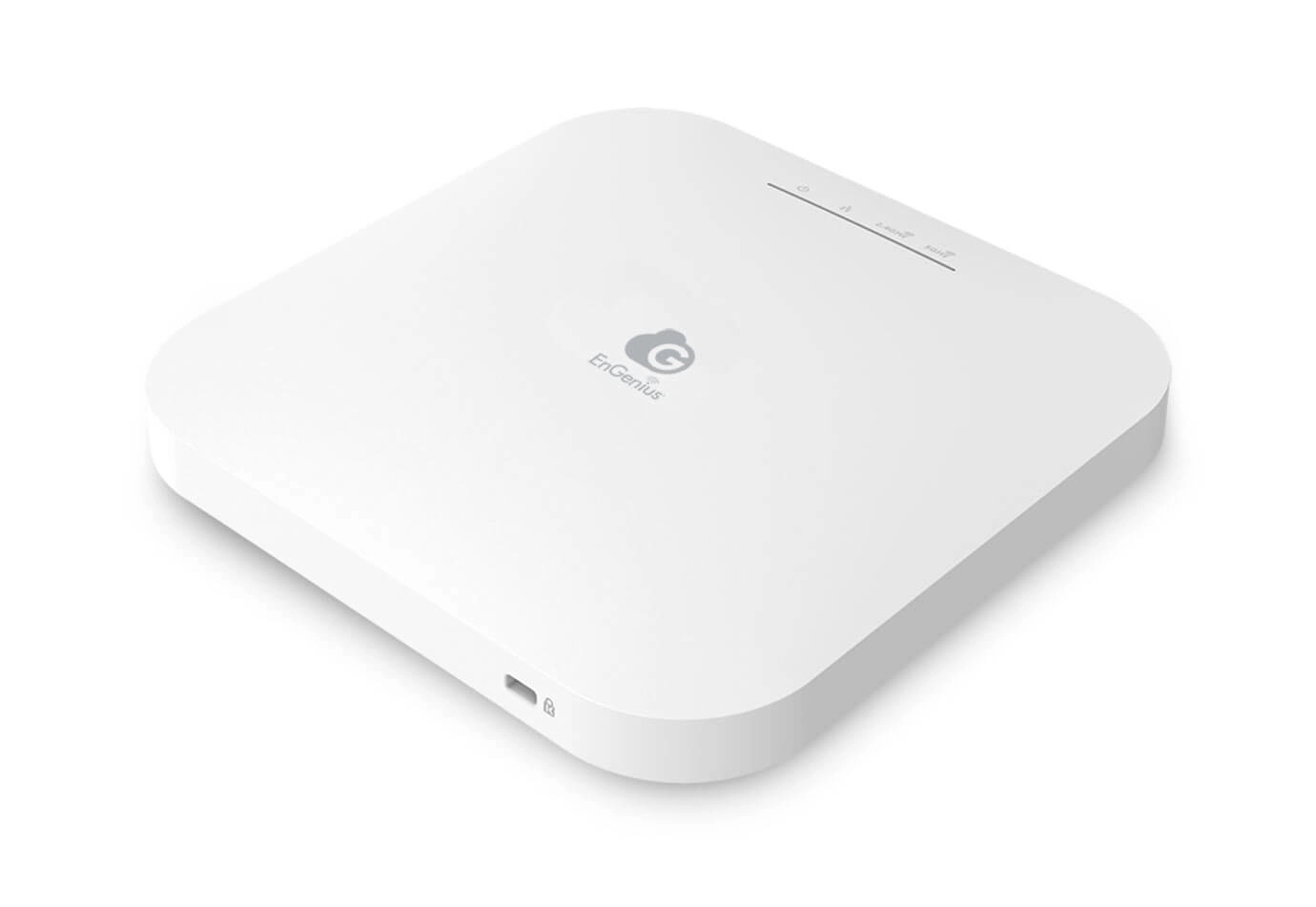

EnGenius Cloud Managed Wi-Fi 6 2×2 Indoor Access Point ECW220 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 1, 200 Mbps (5 GHz), and up to 574 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Specification

Product
Product id	987862
Brand	EnGenius
Partnr	ECW220
EAN/UPC code	4711488350087
Warranty (months)	2 Year
Packaging data
AC adapter included	Y
Mounting kit	Y
Quick start guide	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1200 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA, DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Y
Transmitting power	20 dBmW
Security
Security algorithms	WPA3, SSH, WPA2-AES, WPA2-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Protocols
Management protocols	SNMP
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
Power consumption (max)	12.8 W
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Y
Cable lock slot type	Kensington
Reset button	Y
LED indicators	Y
Certification	FCC, CE, IC
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	3 dBi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.2 mm
Weight	382 g
