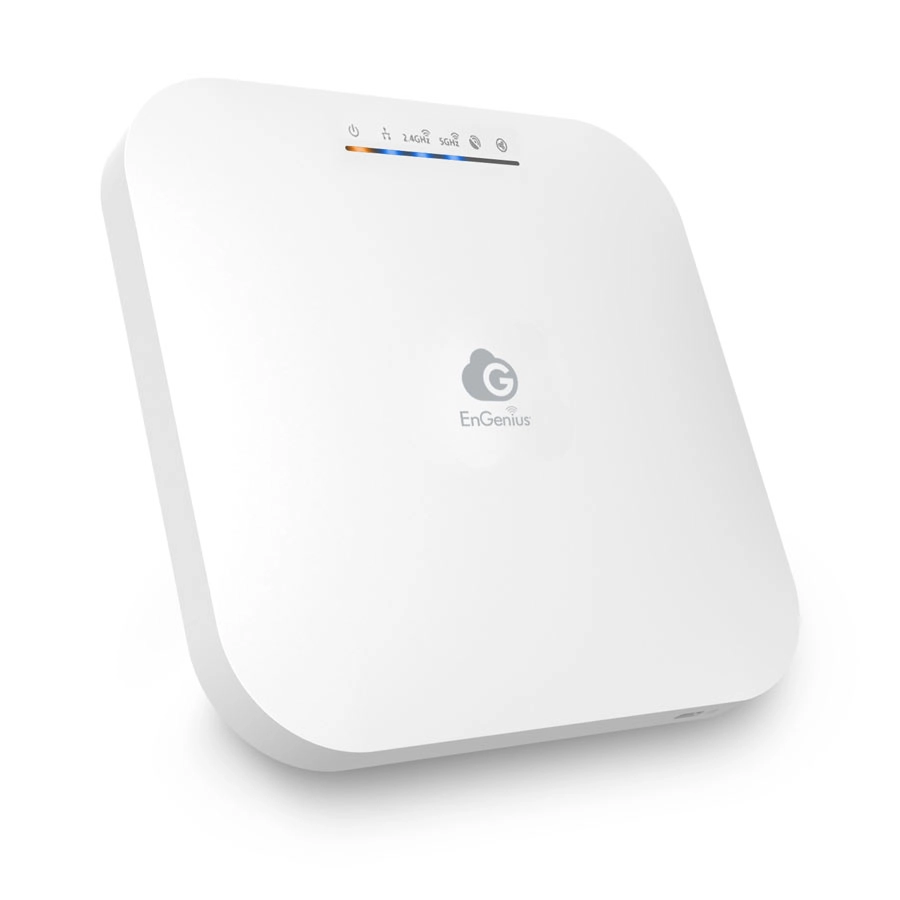

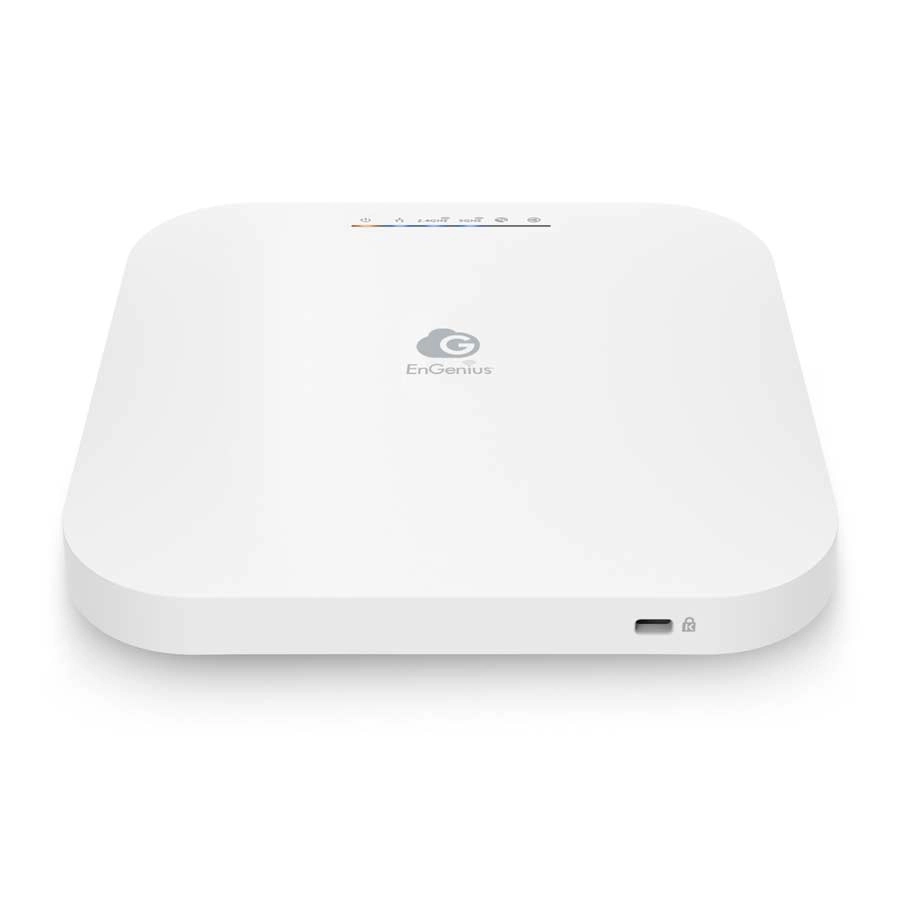

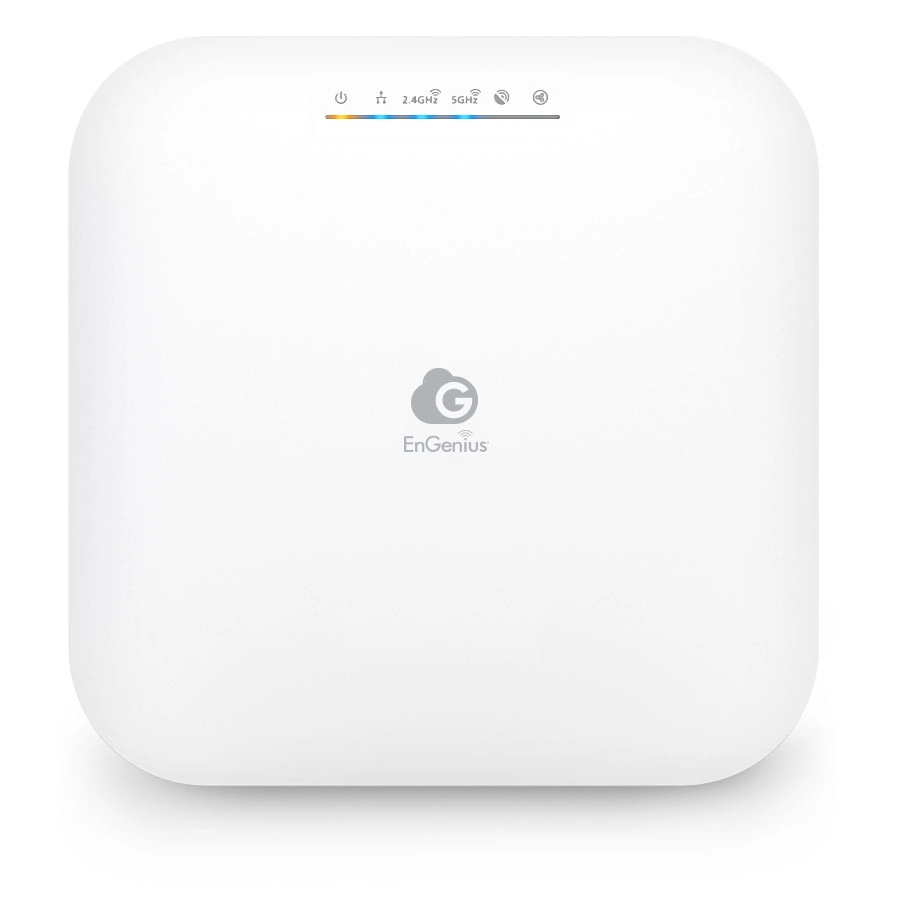

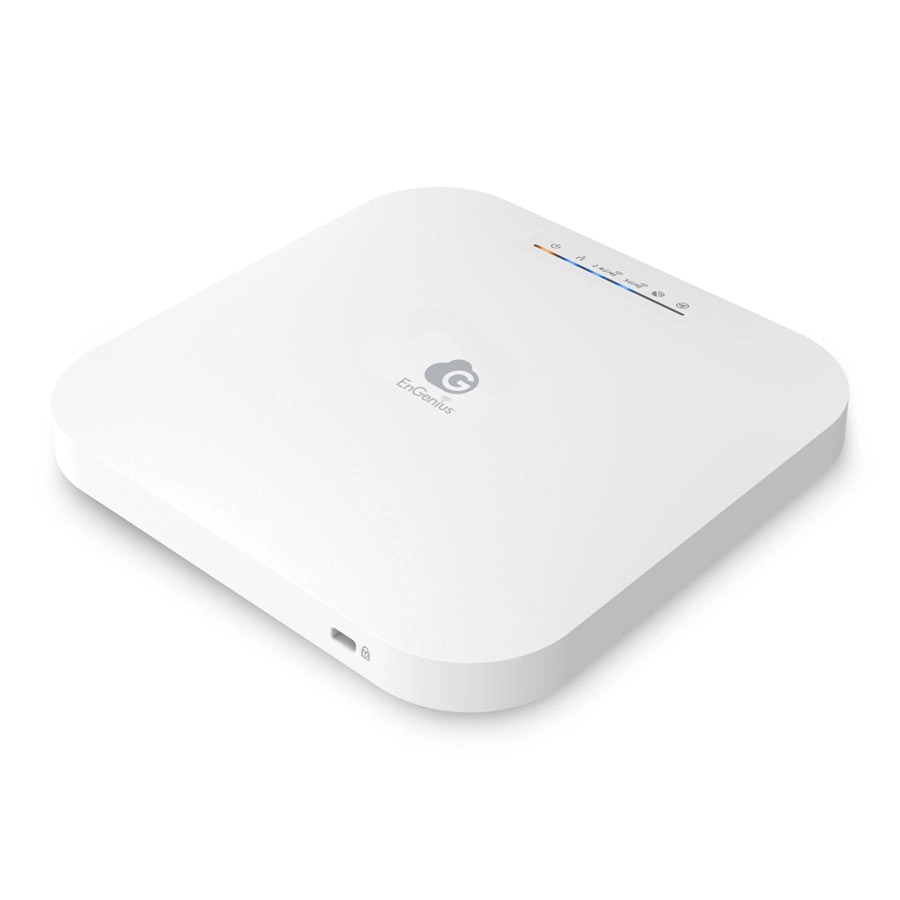

EnGenius Cloud Managed Wi-Fi 6 2x2 Indoor Access Point ECW220 S supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 1, 200 Mbps (5 GHz), and up to 600 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Specification

Product
Product id	987863
Brand	EnGenius
Partnr	ECW220S
EAN/UPC code	4713361935879
Warranty (months)	2 years
Packaging data

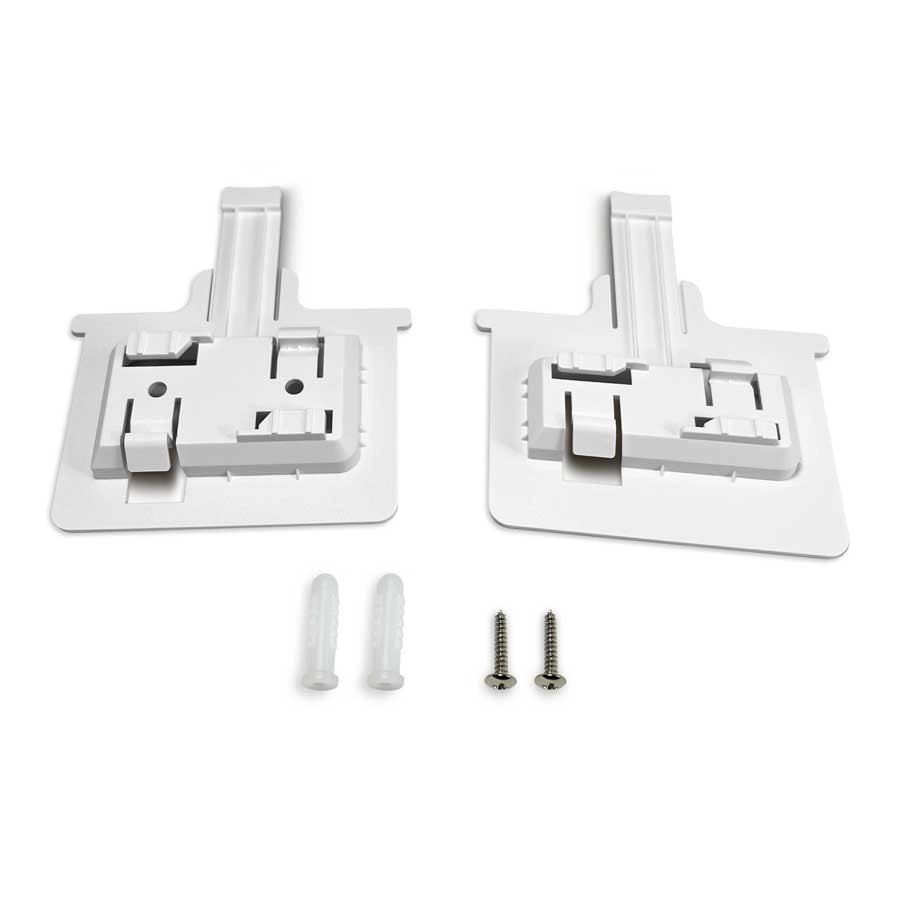

Mounting kit	Y
Quick start guide	Y
Package width	205 mm
Package depth	205 mm
Package height	83 mm
Package weight	580 g
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1774 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Bluetooth	Y
Bluetooth version	5.0
MIMO	Y
Bluetooth Low Energy (BLE)	Y
MIMO type	Multi User MIMO
Spread spectrum method	DSSS
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN
Dynamic Frequency Selection (DFS)	Y
Quality of Service (QoS) support	Y
BeamForming	Y
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Hidden SSID, Multiple SSIDs
Number of SSID supported	8
Wireless Intrusion Detection System (WIDS)	Y

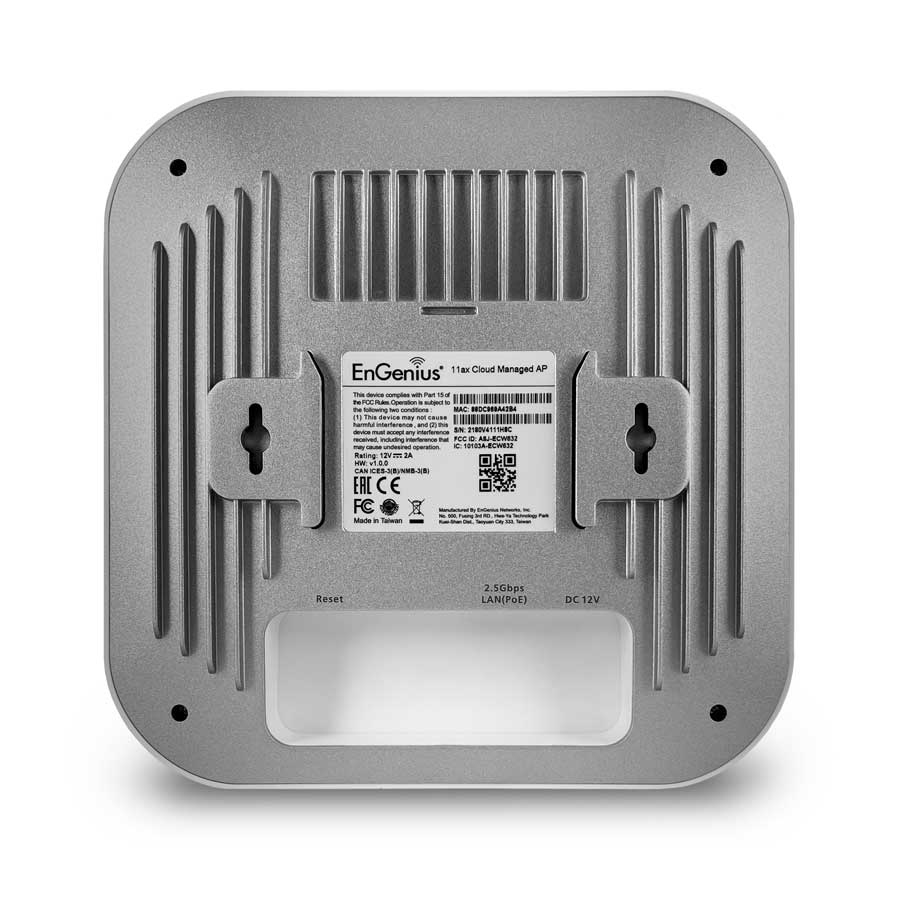

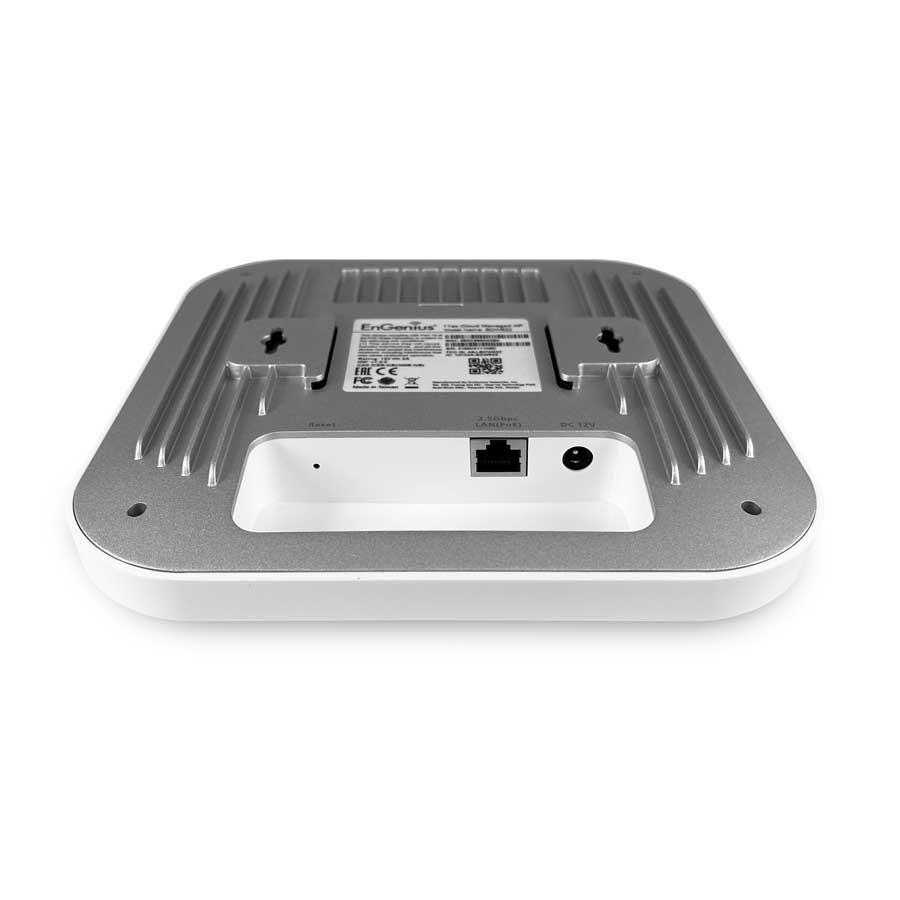

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
Power consumption (max)	12.8 W
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Y
Cable lock slot type	Kensington
Reset button	Y
LED indicators	Bluetooth, LAN, Power, WLAN
Certification	CE, FCC
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	4
Antenna gain level (max)	5 dBi
Performance
Built-in processor	Y
Processor model	ARM Cortex-A53
Processor frequency	2000 MHz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.2 mm
Weight	430 g
