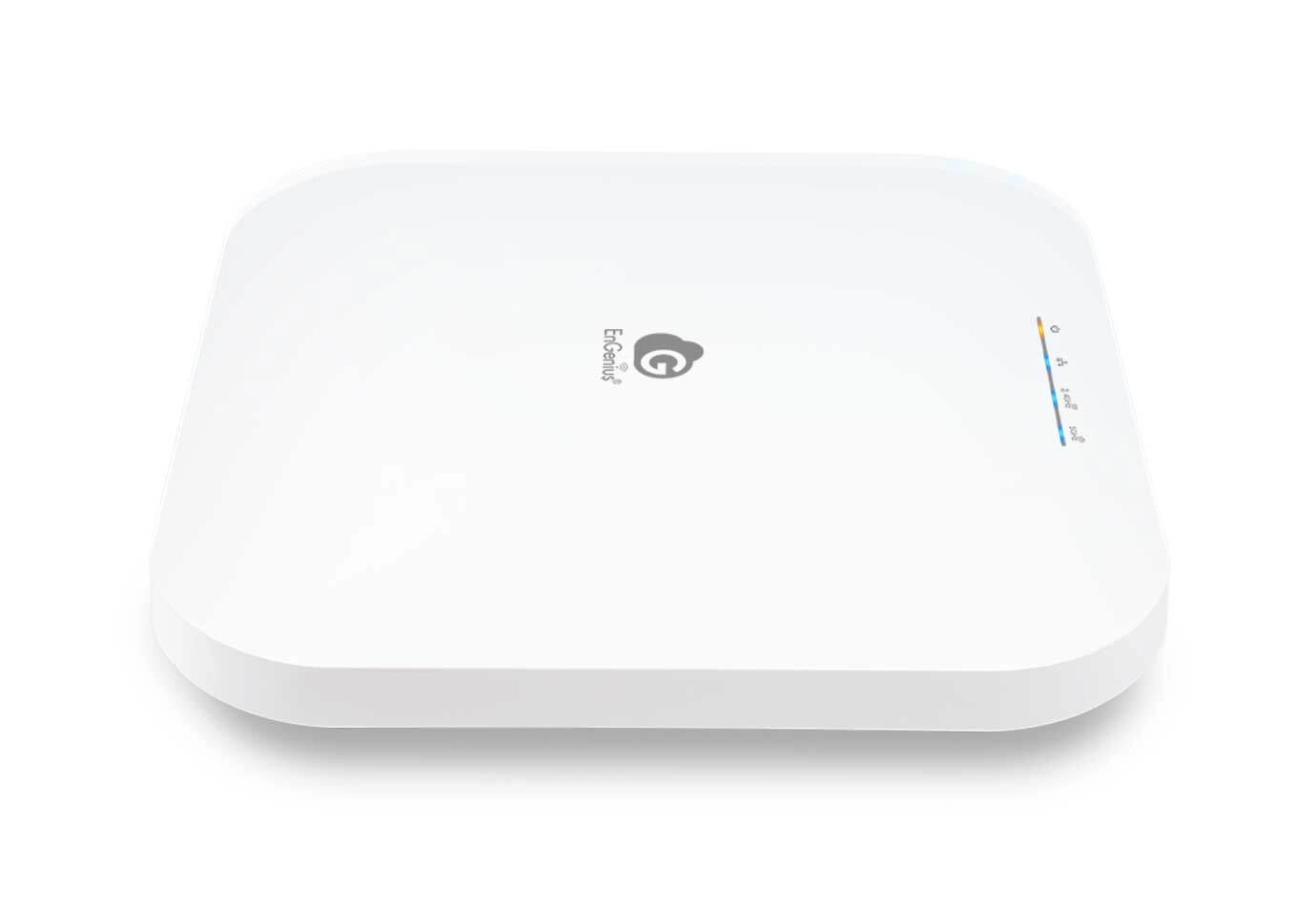

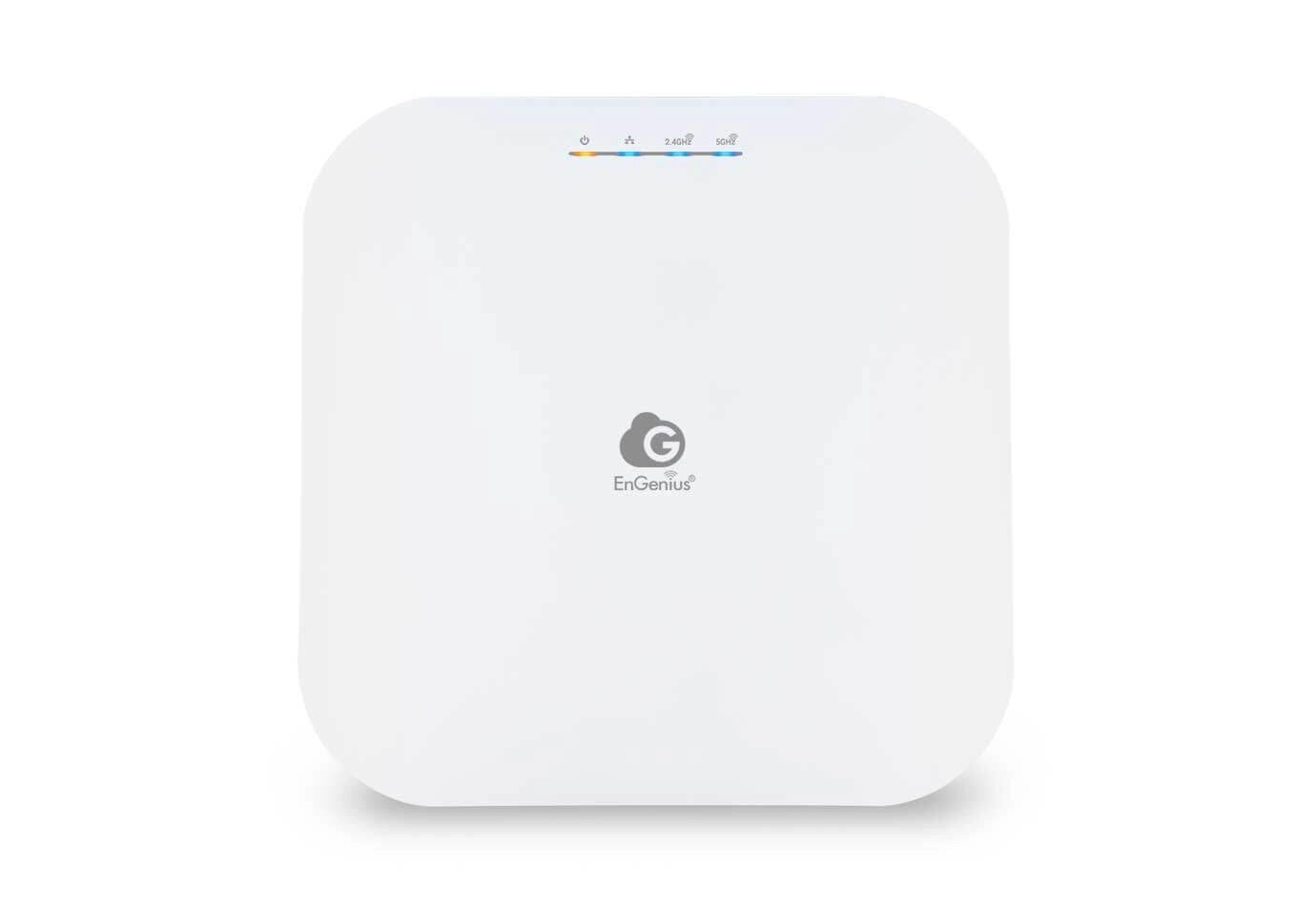

EnGenius Cloud Managed Wi-Fi 6 4×4 Indoor Access Point ECW230 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 2, 400 Mbps (5 GHz), and up to 1, 200 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Specification

Product
Product id	987864
Brand	EnGenius
Partnr	ECW230
EAN/UPC code	4713361934940
Warranty (months)	2 Years
Packaging data
Quick start guide	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	2400 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA, DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Y
Transmitting power	23 dBmW
Security
Security algorithms	WPA3, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Protocols
Management protocols	SNMP

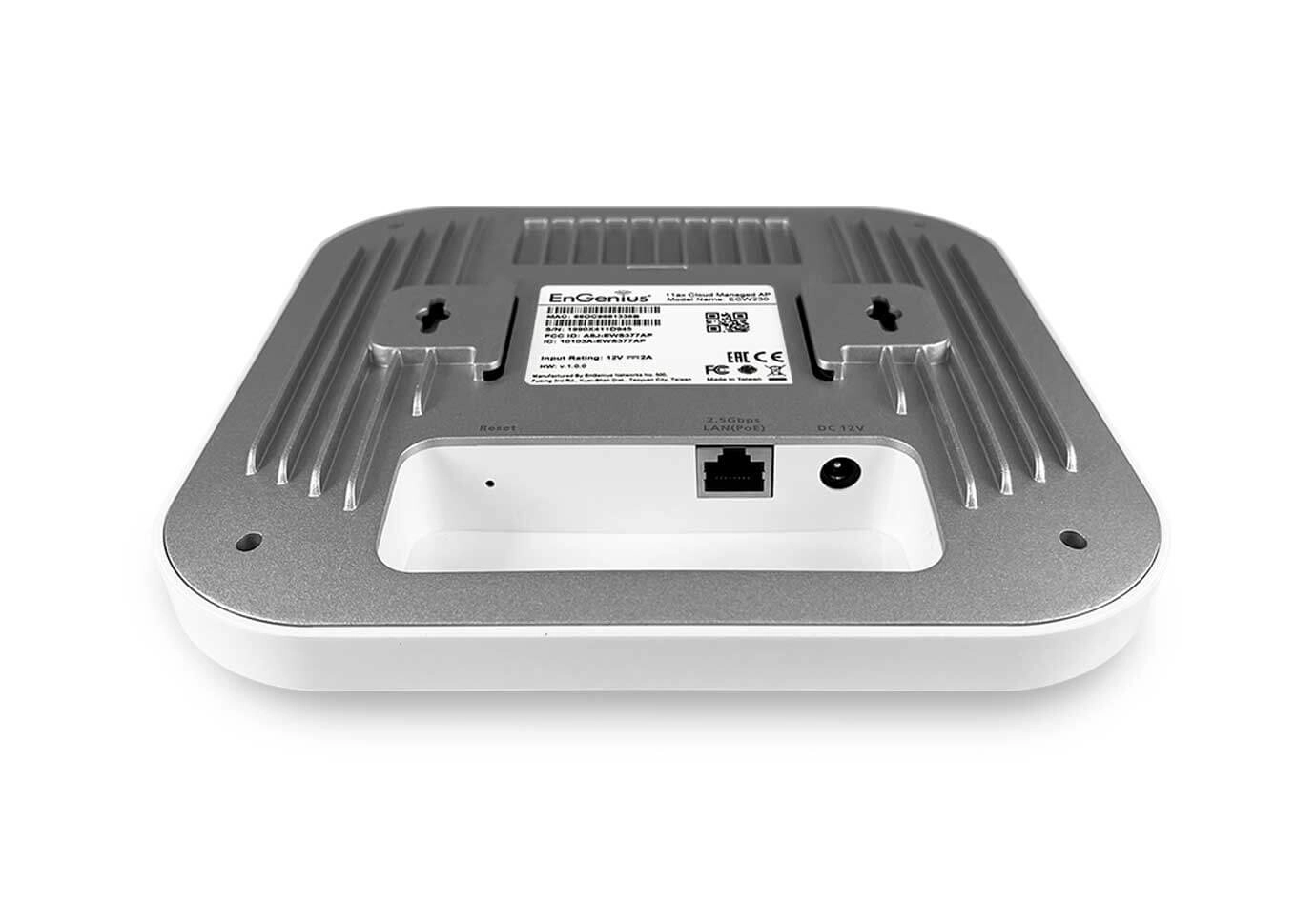

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
Power consumption (max)	19.5 W
Design

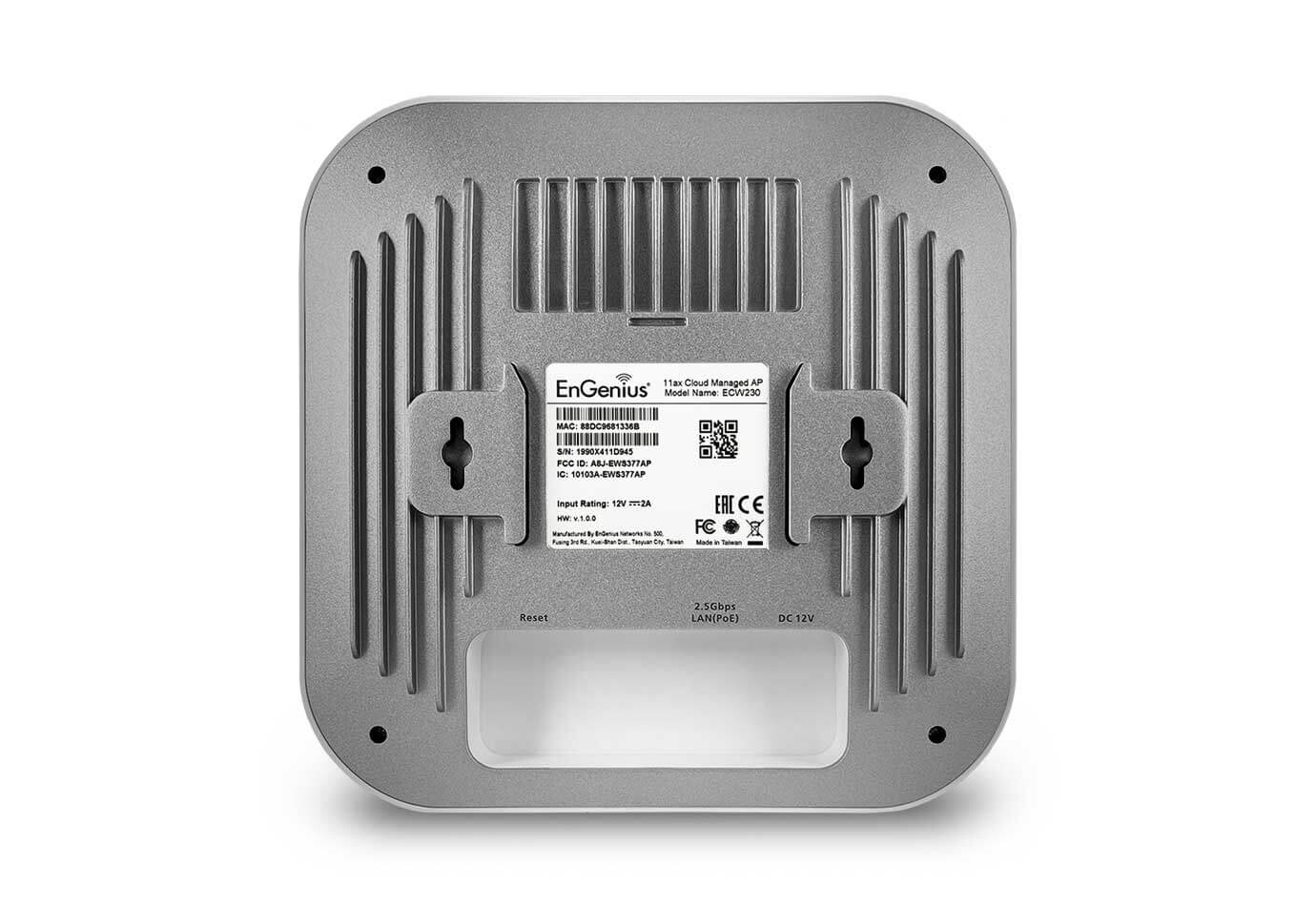

Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Y
Cable lock slot type	Kensington
Reset button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	8
Antenna gain level (max)	3 dBi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	210 mm
Depth	210 mm
Height	33.2 mm
Weight	597 g
