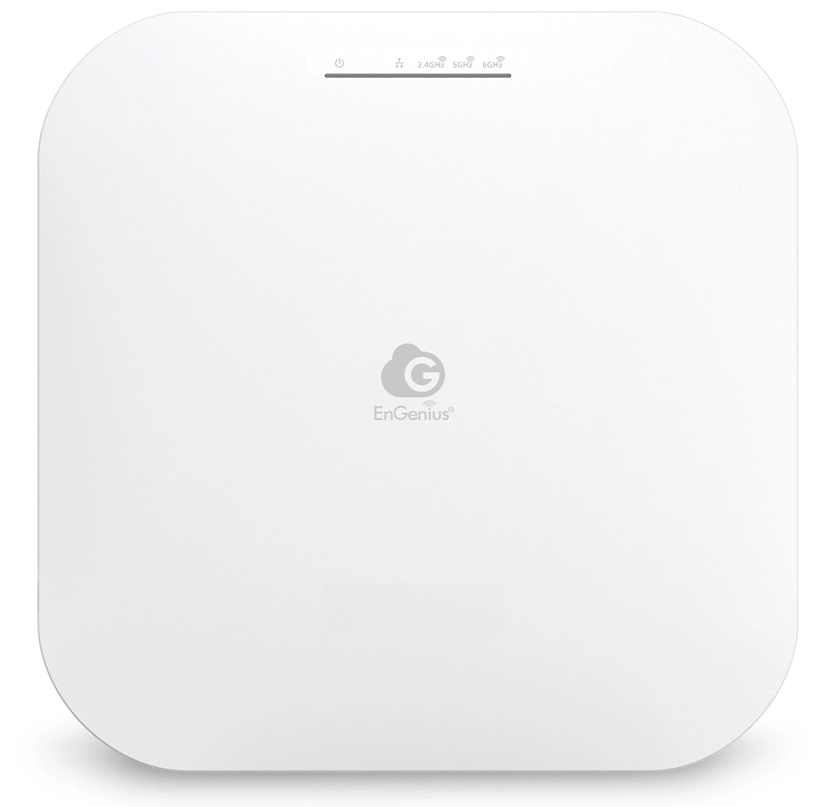

EnGenius Cloud Managed Wi-Fi 7 2x3x3 Access Point ECW516L is a cost-effective model designed for small businesses. It support tri-concurrent 802.11be architecture, delivering speeds up to 700 Mbps on the 2.4GHz, 4, 300 Mbps on the 5GHz, and 8, 700 Mbps on the 6GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.

Specification

Product
Product id	987869
Brand	EnGenius
Partnr	ECW516L
EAN/UPC code	4711488350407
Packaging data
Mounting kit	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	8700 Mbit/s
6 GHz	Y
Maximum data transfer rate (2.4 GHz)	700 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Maximum data transfer rate (6 GHz)	8700 Mbit/s
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Frequency band	2.4 - 7.125 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Number of users	128 gebruiker(s)
MIMO	Y
MIMO type	Multi User MIMO
Security
Security algorithms	802.1x RADIUS, WPA2-AES, WPA3
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Input current	2 A
Power consumption (max)	20.7 W
Design
Placement	Ceiling, Table, Wall
Product colour	White
LED indicators	LAN, Power
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	8
Antenna gain level (max)	5 dBi
Performance
Built-in processor	Y
Processor model	ARM Cortex-A53
Processor frequency	2000 MHz
Internal memory	4000 MB
Flash memory	1000 MB
Operational conditions
Operating relative humidity (H-H)	0 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	0 - 90 procent
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA
Weight & dimensions
Width	205 mm
Depth	205 mm
Height	33 mm
